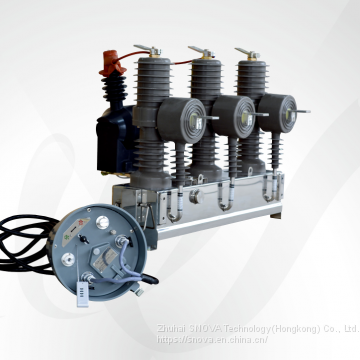

SNV500seires intelligent dividing control system of Vacuum circuit breaker
1. System description
The system is designed for demarcation and isolation protection of outdoor distribution network with rated voltage of 12 kV and three-phase AC of 50 Hz. Through Intelligent Vacuum Circuit Breaker Switch and intelligent switch control terminal running of the linkage intelligent control，then In order to realize and achieve the automatic switching-on and closing action of the circuit breaker controlled by the switch control terminal when the load circuit has inter-phase short-circuit fault, phase-to-ground fault, or when the circuit is overloaded, so as to realize the disconnection and isolation of the faulty branch lines without affecting the operation of the whole power grid, thus playing the role of demarcation protection of the power grid. It is mainly used for switching off and closing load current, overload current and short circuit current in power system. It is suitable for protection and control in power distribution system of substations and industrial and mining enterprises, and more suitable for countryside power grids and frequently operated places.

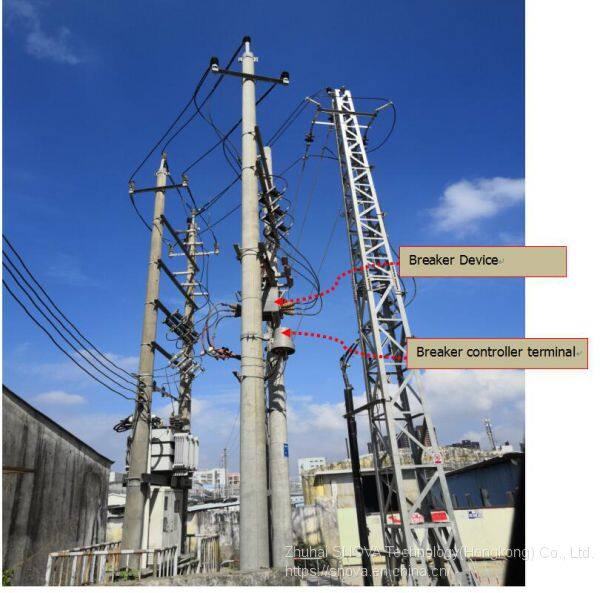

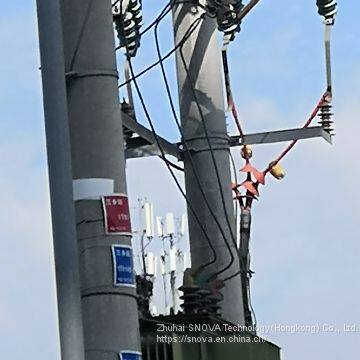

3. System Application examples：

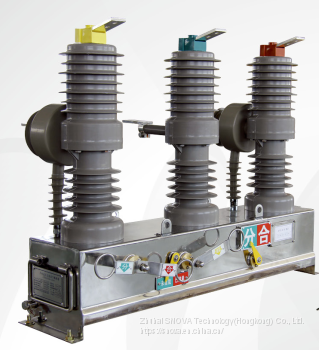

4 . SNV501 Intelligent vacuum circuit breaker
SNV501 Outdoor post vacuum circuit breaker（Hereinafter referred to as circuit breaker）is Outdoor distribution equipment with rated voltage of 12 kV and three-phase AC of 50 Hz network. It is mainly used for breaking and closing load current, overload current and short circuit current in power system. It is suitable for protection and control in power distribution system of substation and industrial and mining enterprises, and more suitable for countryside power grid and frequent operation Place.
This installation instruction specifies the main technical parameters, product structure, operation, installation and operation of circuit breakers.
Maintenance principles and methods are used.
