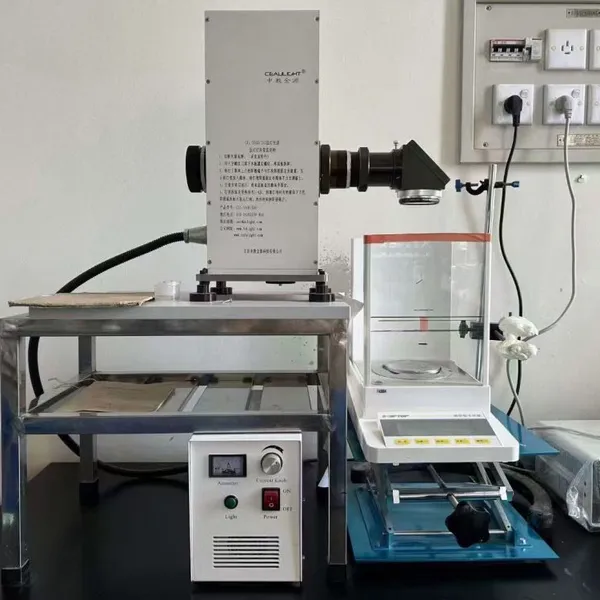

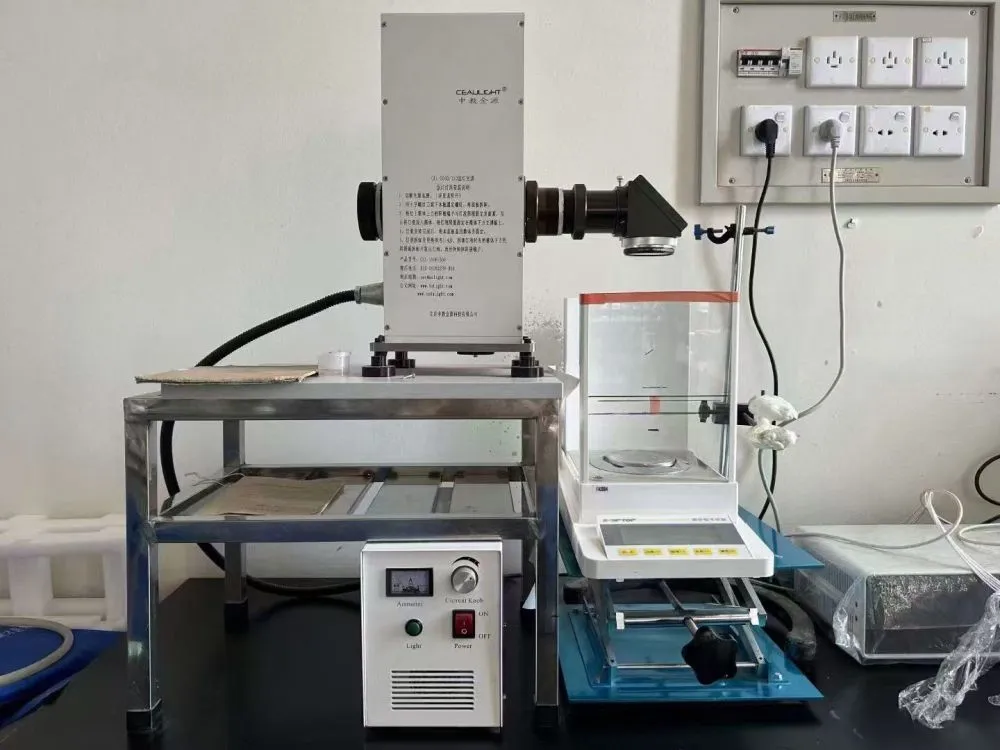

Help CenterSolar Simulator Xenon Lamp Light Source
Related Products
-
Photochemical Reaction Instrument (LED) CEL-PCRD300-12NegotiableMOQ: 1 Set -
High-power 100W LED Light Source SystemNegotiableMOQ: 1 Set
-
Photochemical ReactorsUS$ 600 - 650MOQ: 1 Set
-
Photochemical ReactorUS$ 5000 - 5500MOQ: 1 Set
-
300W Photocatalytic Xenon Lamp Light Source Water SplittingUS$ 4500 - 5000MOQ: 1 Set
CEL-S500 simulated daylight xenon lamp light source, using the xenon lamp power supply developed by CEL Jinyuan, the light output stability increased significantly,
This series of light source can be compatible with a variety of specifications, brands, imported and domestic filters and lenses (25.4mm, 50.8mm,,M52, M62, etc.), our company can provide various specifications of quartz filters, reflectors, K9 optical filters, etc. Visible light: solar cell test, simulated sunlight, point light source output, can be fiber optic lead, uniform parallel light. With the use of AM1.5 filter, you can achieve a better fit with the sunlight spectrum, product performance applications better. Cooperate with the use of adjustable light lan, can adjust the spot irradiation area, irradiation area of 3mm-50mm diameter continuously adjustable.
Advantageous features: high-quality optical lens to improve light collection efficiency; the use of back light reflector structure to improve light collection efficiency; built-in three-dimensional adjustment platform, optical precision adjustment can be achieved; a full range of accessories, fiber optic connections and a variety of filters; color temperature up to 6000K, simulating sunlight; cooling mode using fan air-cooled cycle cooling.
Model |
CEL-S500 |
Lamp type |
Spherical xenon lamp |
|
Xenon lamp system |
Three-dimensional adjustment, built-in lamp temperature monitoring, fan delay and other functions |
|
Optical power range (1Sun = 100mw/cm2) |
0.1-5Sun |
Maximum power |
300-500W |
Current adjustment range |
15A-25A |
Spectrum range |
300-2500nm |
Optical power density(mw/cm2) |
10-500 |
Power Stability |
±0.01% |
Light source stability |
|
Parallel light spot diameter |
50-60mm |
Spot light output diameter |
2-3mm |
Zoom function |
Can change the light output spot size |
Lamp lifetime |
500-1000 Hours |
Cooling method |
Air-cooling |
Accessories and photocatalytic xenon lamp light source accessories common, can be combined with a variety of filters, light Lan, optical fiber, case | |
