Motion Detection 4CH 3G HD Mobile CCTV Bus camera Remote live view WIFI G-Sensor GPS 4-ch HDD MDVR
3G Mobile DVR is mainly used for vehicle fleeting management with live video and monitoring ,and you can know where the vehicle is with GPS tracking especially necessary for school bus or goods truck or bank money carrying cars. Live monitoring what they are doing.Welcome you.
Specification
Item |
Description |
||
OS |
Linux |
||
Graphics Operation Interface |
System parameters can be set through external display and remote controller |
||
Security Management |
2-level management for user password, administrator password, supporting encrypted transmission |
||
Video and Preview |
Video Input, Output |
4-channel video input, 1channel video output; 1.0Vp-p, 75Ω |
|
OSD |
Character superposition function, information superposition of time and date, device ID and GPS, etc. |
||
Video Compression Format |
Compression coding. Applying hisilicon hi-performance processor. |
||
Dual-Stream |
Supported |
||
Preview Function |
Preview of 1-channel, 4-image stitching, supporting full screen triggered by event and switching of stitched images |
||
Frame Rate |
PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel |
||
Resolution |
CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most |
||
Quality |
Grade 1 to grade 5 for selection (descending) |
||
Bit Rate |
CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection |
||
Audio |
Audio Input, Output |
4-channel input, 1-channel output |
|
Compression Format |
G.726 coding |
||
Recording |
Storage Medium |
Supporting one 2.5” hard drive and one SD card, which supports up to 32G, supporting data redundancy storage technology; |
|
File Format/ System |
ASF/FAT32 |
||
Video Strategies |
Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording |
||
Video Search |
Searching by time, type, storage device and other conditions |
||
Video Playback |
Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files |
||
Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time | |||
Alarm |
Alarm Input/ Output |
6-channel on/off signal alarm input, 1-channel on/off signal alarm output |
|
Alarm Recording |
Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min |
||
Storage Space Alarm |
Supporting settings for alarm of storage space |
||
Function Alarm |
GPS overspeed alarm, acceleration alarm, motion detection alarm |
||
Communication Ports |
RS232, RJ45 10M/100M self-adaptable network interface |
||
Wireless Transmission (Optional) |
Supporting Wi-Fi; |
||
GPS (Optional) |
Supporting external GPS |
||
PTZ Control |
Supporting PTZ control realized by local; |
||
Parameter Configuration |
Supporting parameter configuration functions for mobile DVR coding channel; |
||
G-Sensor |
Embedded |
||
System Upgrading |
Supporting SD card, hard drive upgrading and remote upgrading |
||
Power Supply and Power Consumption |
Power Supply |
1. ACC on/off 2. Hard drive lock on/off 3. Delayed shutdown 4. Timed on/off |
|
Input Voltage |
DC:+8V ~ +36V |
||
Output Voltage |
+12V@4*0.5A; +5V@0.5A |
||
Power-off Protection |
With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure |
||
Power Consumption |
|||
Operating Environment |
Temperature |
Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃ |
|
Humidity |
10% to 95% |
||
Dimensions |
160(W) x62(H) x200(D) mm. |
||
Weight |
Net: 2200g, Gross: 3500g |
||
Main Features
4CH, Support 4 cameras
H.264 compression format
64GB SD Card
2.5“ SATA 2TB Hard disk
GPS tracking
3G remote control
Built-in WIFI for option
6 alarm input, 1 alarm output
2 way intercom
Remote oil&power cut-off
Mirror recording in SD card
Patent UPS continuously working to protect data upon sudden power-off
Customized GPS data format sending(optional)
Built-in Heater(optional)
Lockable, metal HDD handle, protect HDD efficiently
Watermark and Time/Date stamp in exported images
It can support remote online monitoring by computer and Mobile APP.

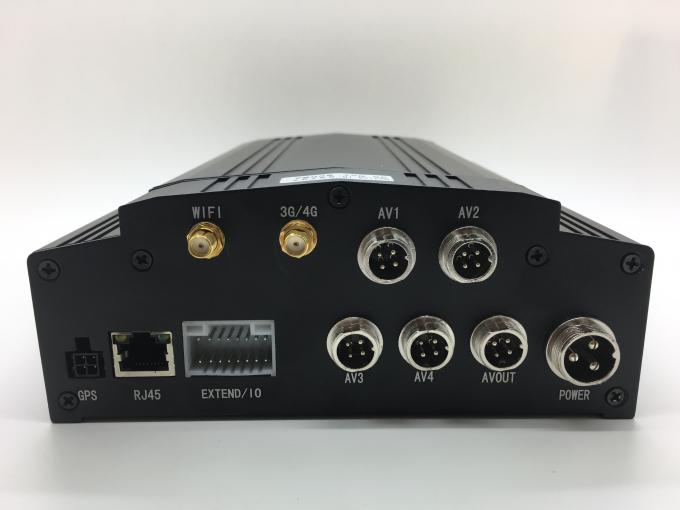

Back View
Side View
Front View
The complete kit:
If you're interested in the system above, please be free to get the high-quality solution and system with us.
