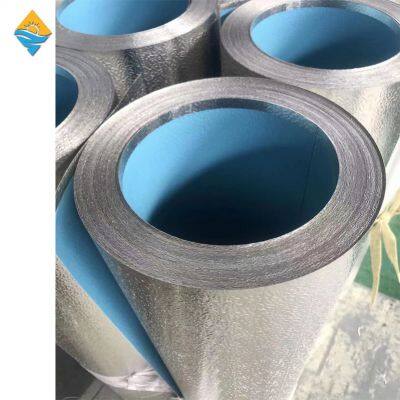

Aluminum Roll Jacketing With Polysurlyn

Please contact Ms.Amy YIN

email address is amy@zhyly.com

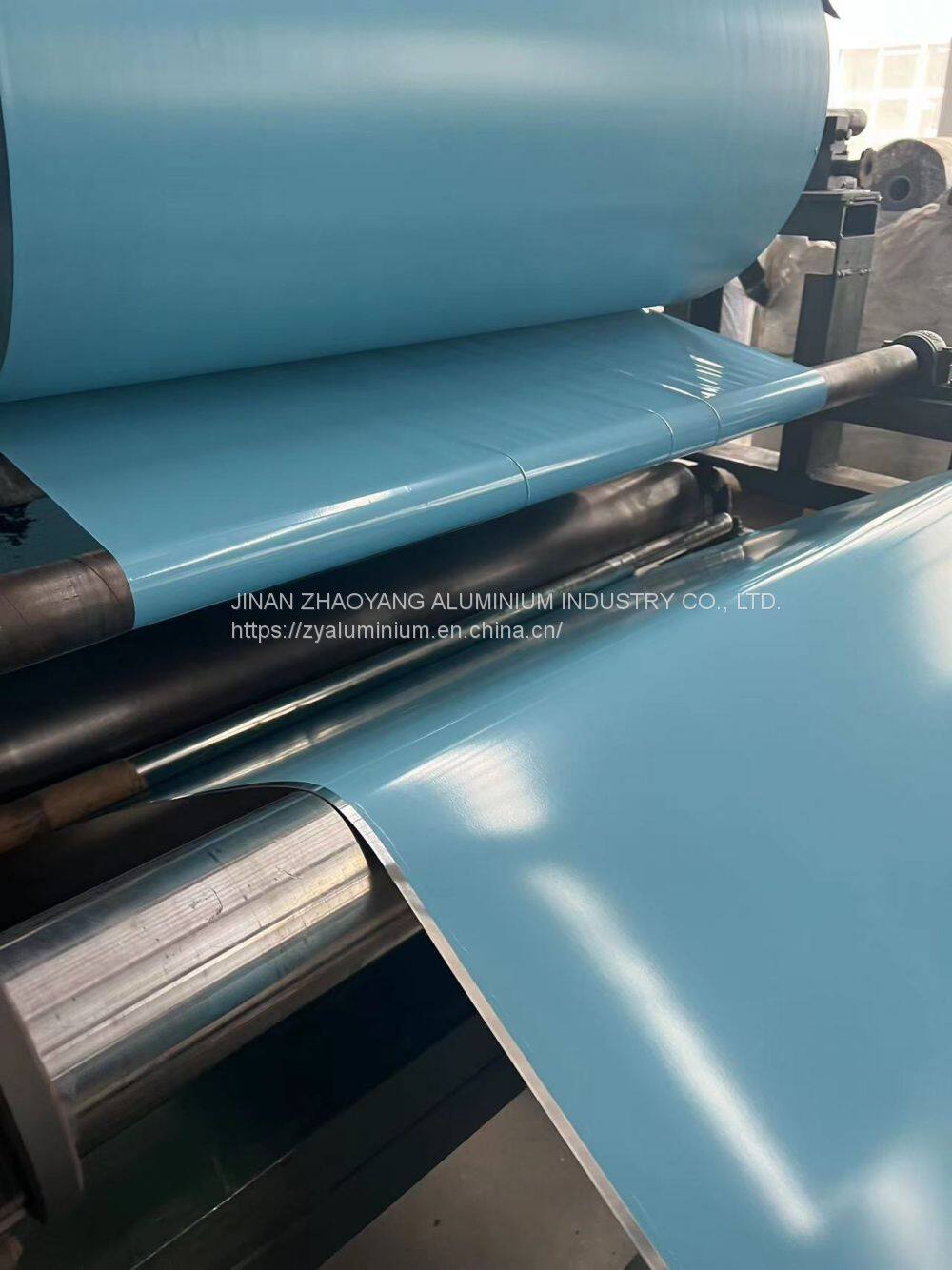

Aluminum Roll Jacketing with Polysurlyn is a protective film formed by hot pressing polysurlun film onto the surface of aluminum coil through hot pressing. This film is closely adhered to the surface of aluminum coil and is not easy to fall off. Polysurlyn film is a polyethylene and sarin polymer multilayer composite film with a total thickness of 76 microns.
Polysurlyn moisture barrier aluminum coil can effectively help the metal protection layer of pipeline insulation materials in oil refineries (power plants and chemical plants) to prevent corrosion, because it has good metal adhesion, good air tightness and excellent anti-corrosion performance, and is an ideal material for pipeline anti-corrosion protection layer.

1. We confirm there is no more than 5 pinhole detections, collectively are detected in the 10 wetted test areas in accordance with ASTM C1729 - Pass criteria for moisture retarder.
2. We confirm that water vapor transmission rate of the moisture retarder will be less than 1.55g/m2/day.

Polysurlyn film thickness: 76 um
Polysurlyn film weight: 0.08kgs/M²
Thickness of aluminum substrate: 0.2mm ~ 1.0mm
Width: 1000mm, 1220mm, 1250mm
Surface: Mill finish aluminum coil with Polysurlyn, Stucco Polysurlyn embossed aluminum coil

Polysurlyn Moisture Barrier Aluminum coil can be effectively applied to the anti-corrosion engineering of the pipeline insulation material aluminum coil plate protection layer in the oil refinery, power plant, chemical plant and other high requirements of anti-corrosion construction environment. Polysurlyn film on aluminum coil has excellent adhesion, excellent air tightness and corrosion resistance. The polysurlyn film has low flammability after being applied to the aluminum coil, which has more advantages of waterproof and increased weather resistance. Become an ideal emerging material for pipeline anti-corrosion protection layer.

QUALITY
JINAN ZHAOYANG ALUMINIUM INDUSTRY CO., LTD. has the advanced testing equipments and builds up a professional scientific research team,strictly control the quality on each steps of production. including inspection on raw materials entry, product's color analysis during production,T-bend test, impact test, salt-spray test, tensile test and packaging testing on exported products , which ensures its integrated performance such as corrosion resistance, coating stickiness etc. and the safety of transportation.

SERVICE
Nowdays, economic globalization promotes international trade, and our products are sold to many countries and regions in the world.
This makes our products very popular not only in the domestic market, but also in Europe, the United States, Mexico, Colombia, Chile, New Zealand, Dubai, Pakistan, Singapore, Thailand, the Philippines, Vietnam and other countries and regions, winning the trust and praise of customers and successfully moving from home to abroad.

Q1. Where is your factory ?
A1: Our factory is located in Yushan Technology Incubation Park,Pingyin County, Jinan City, Shandong, China

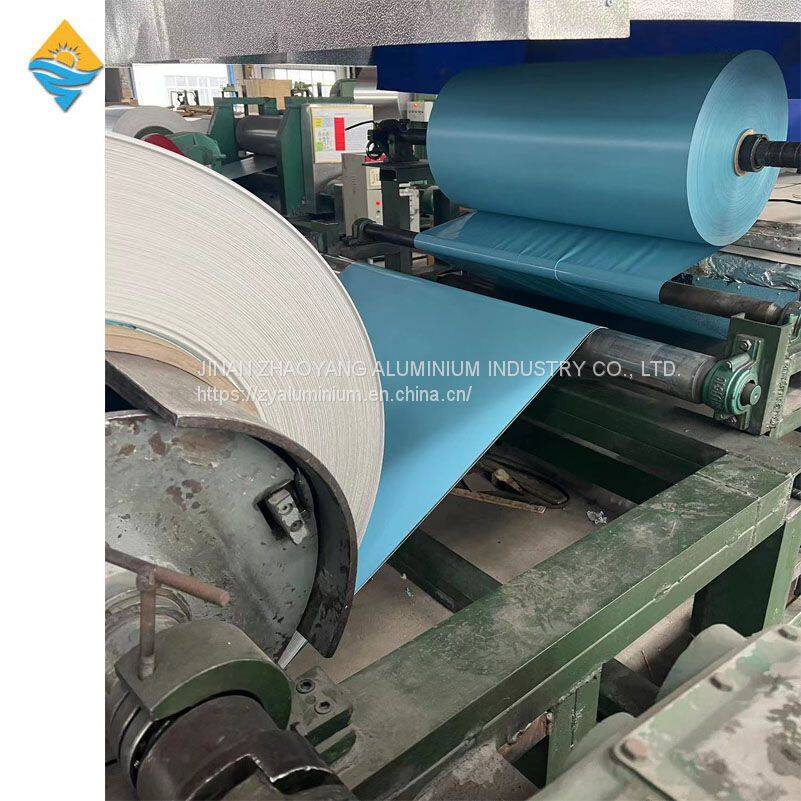

Which is well equipped with kinds of machines, such as Aluminum plate machine, Aluminum circle machine, Embossed aluminum coil machine, aluminum roofing sheet machine,kraft paper/Polysurlyn/pvc film coated aluminum coil machine, aluminum foil machine, and so on.
We can provide a wide range of personalized services according to the customers' needs.

Q2. What are your company's main products ?
A2: Our main products are Aluminum plate/sheet, aluminum coil, aluminum circle/disc , aluminum foil, aluminum roofing sheet, aluminum roll with kraft paper/polysurlun/blue pvc film, embossed aluminum sheet/plate, color coated aluminum coil/sheet, aluminum pipe, aluminum wire, etc.

Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.

Q4. What are the advantages of your company ?
A4: We have our own production workshop, logistics and transportation team, many professional and technical personnel, more competitive prices and the best after-sales service than other aluminum product companies.

Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, Canada, UK, Spain, Colombia, Chile, Brazil, Peru, Argentina, Vietnam, Singapore, Malaysia, Thailand, Pakistan, Bangladesh, India, New Zealand, Nigeria, Ethiopia, Kuwait, Jordan, etc.

Q6. Can you provide sample ?
A6: Yes, small samples are free, and the freight collect.
Customized samples will take about 5-7days.
