Jaw Breaker Welding Introduction:
The max. feeding size of Jaw Breaker Welding PE600*900 is 500 mm, output size is 60-125 mm, capacity is 90-180 t/h. It's mainly used at the primary stage of material reduction in several applications, including rock quarries, sand and gravel, mining, construction and demolition recycling, construction aggregates, metallurgy, and chemical industries.
Jaw Breaker Welding
Jaw Breaker Welding are designed modular to save time and installation costs. They can be installed within a few days, minimizing on-site engineering and fabrication. We have small, medium and large pe jaw crusher for sale, used for primary secondary fine crushing, meeting different needs. The Hot sale jaw crusher models are Jaw Crusher 250*400, Jaw Crusher 400*600, Jaw Crusher 600*900, etc.

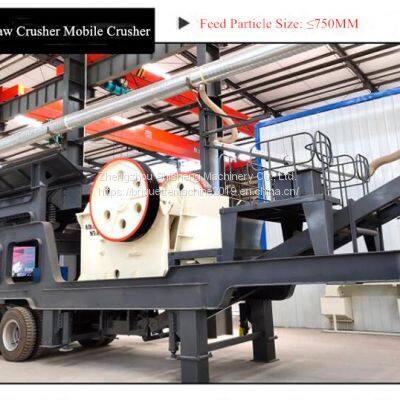

Mobile jaw crushes, or mobile jaw crushing plants as they are also called, are conventionally utilized as primary crushers in aggregates quarries, recycling applications and on construction sites, but also in mining operations. Mobile jaw crushers can be moved around at a production site on their own, without supporting equipment – or simply transported between locations.
01/ Installation and debugging service
We have a professional and experienced oversea installation team.
02/Training service
We do not only install and debug machine for our clients, but also train the worker, so they can operate the machineindependently.
03/Other more service
Clients have any needs or problems; our engineer can take plane and get the worksite to provide service in 48 hours.
Jaw Breaker Welding Technical Parameter:
| Model | Inlet Size(mm) | Max.Feed Size(mm) | Discharge Mouth Controllable Range(mm) | Capacity(t/h) | Eccentric Shaft Speed(r/min) | Motor(kw) | Weight(t) | Overall Size(mm) |
| PE-150*250 | 150*250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720*660*850 |
| PE-200*300 | 200*300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910*750*990 |
| PE-200*350 | 200*350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000*870*990 |
| PE-250*400 | 250*400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300*1090*1270 |
| PE-400*600 | 400*600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 1730*1730*1630 |
| PE-500*750 | 500*750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980*2080*1870 |
| PE-600*750 | 600*750 | 500 | 150-200 | 80-240 | 275 | 55 | 15.8 | 2070*2000*1920 |
| PE-600*900 | 600*900 | 500 | 65-160 | 50-180 | 250 | 55 | 17 | 2190*2206*2300 |
| PE-750*1060 | 750*1060 | 630 | 80-140 | 110-320 | 250 | 110 | 29 | 2660*2430*2800 |
| PE-800*1060 | 800*1060 | 640 | 130-190 | 130-330 | 250 | 110 | 29.8 | 2710*2430*2800 |
| PE-900*1200 | 900*1200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 3380*2870*3330 |
| PE-1000*1200 | 1000*1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480*2876*3330 |
| PE-1200*1500 | 1200*1500 | 1020 | 150-350 | 400-800 | 180 | 160-220 | 100.9 | 4200*3300*3500 |
| PE-1500*1800 | 1500*1800 | 1200 | 220-350 | 500-1000 | 180 | 280-355 | 122 | 5160*3660*4248 |
| PE-1600*2100 | 1600*2100 | 1500 | 300-400 | 1300-2200 | 160 | 350-380 | 150.6 | 6210*4013*4716 |
| PEX-150*750 | 150*750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200*1530*1060 |
| PEX-250*750 | 250*750 | 210 | 25-60 | 13-35 | 330 | 30 | 5.5 | 1380*1750*1540 |
| PEX-250*1000 | 250*1000 | 210 | 25-60 | 16-52 | 330 | 30 | 7 | 1560*1950*1390 |
| PEX-250*1200 | 250*1200 | 210 | 25-60 | 20-61 | 330 | 37 | 9.7 | 2140*1660*1500 |
| PEX-300*1300 | 300*1300 | 250 | 20-90 | 16-105 | 300 | 55 | 15.6 | 2720*1950*1600 |
