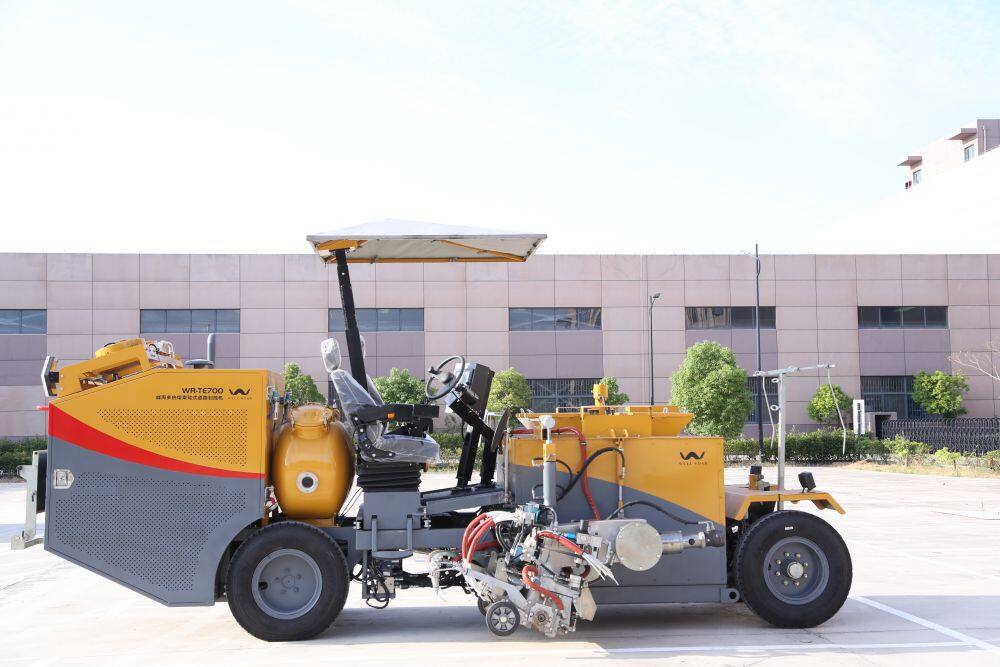

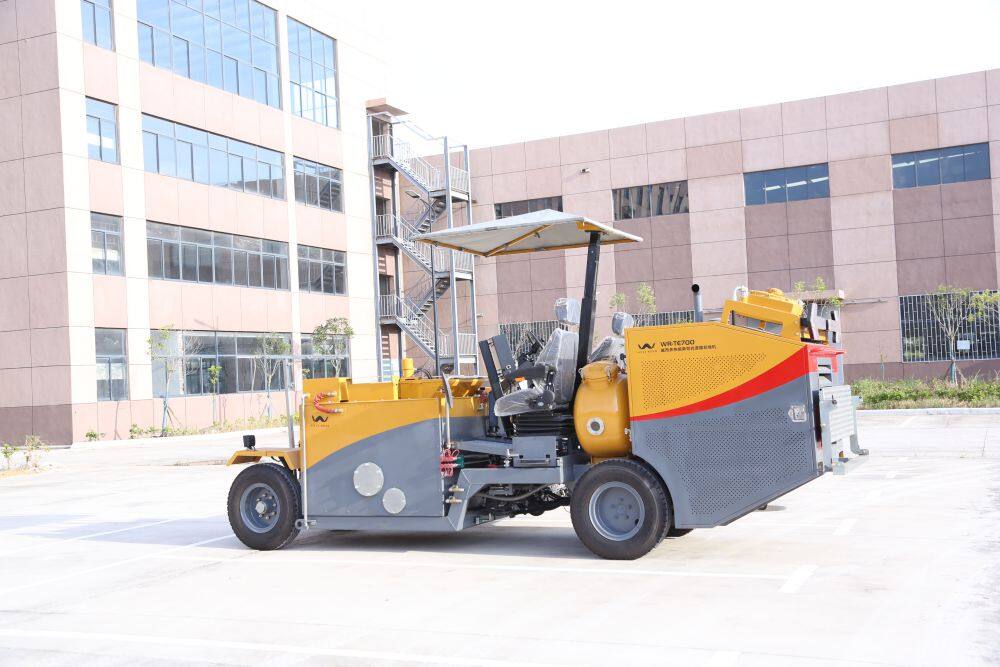

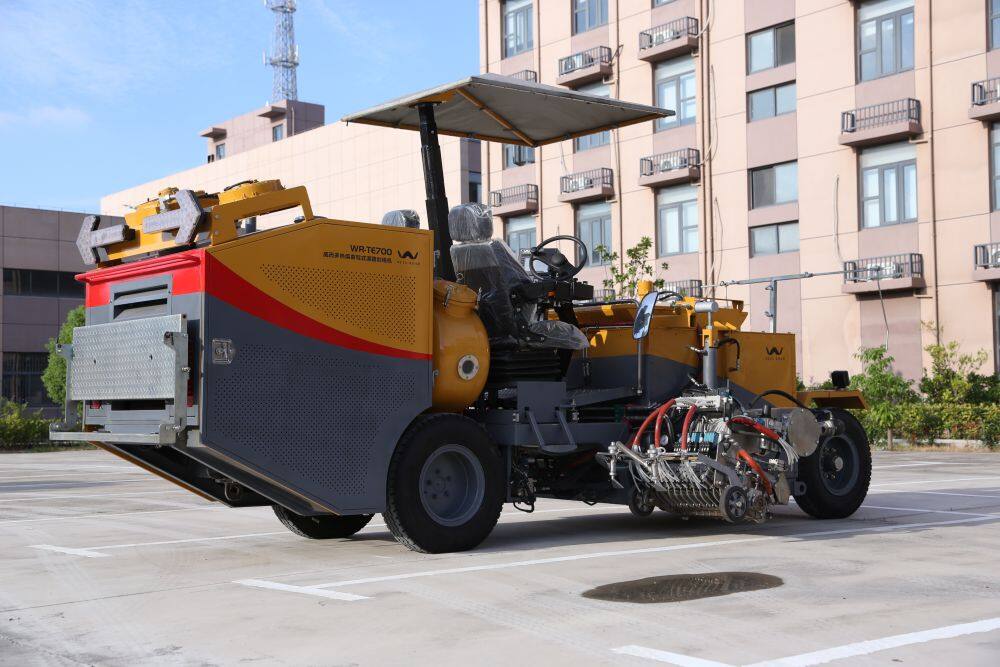

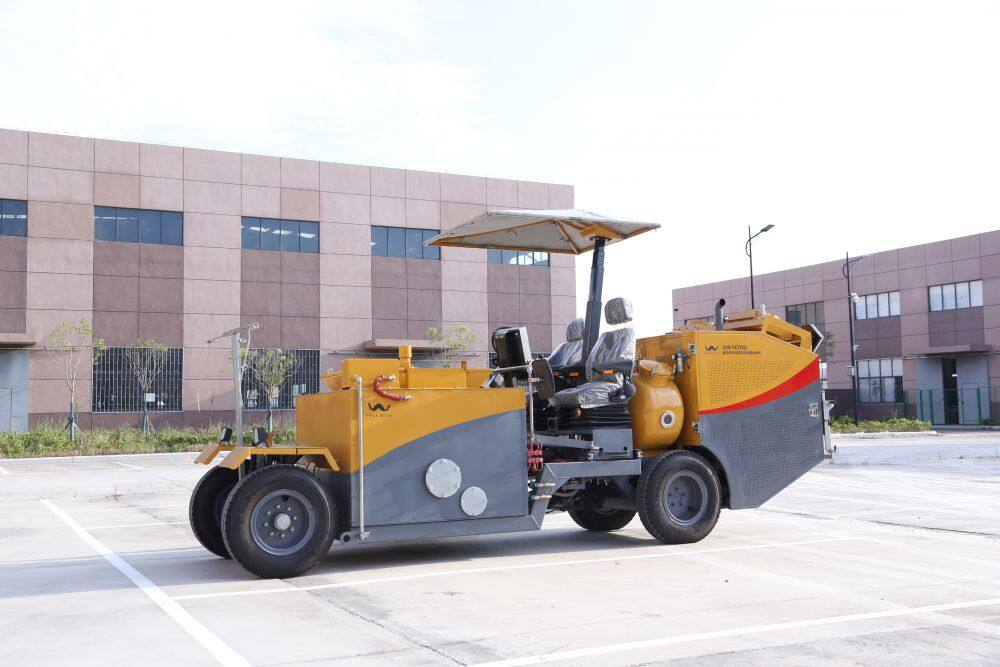

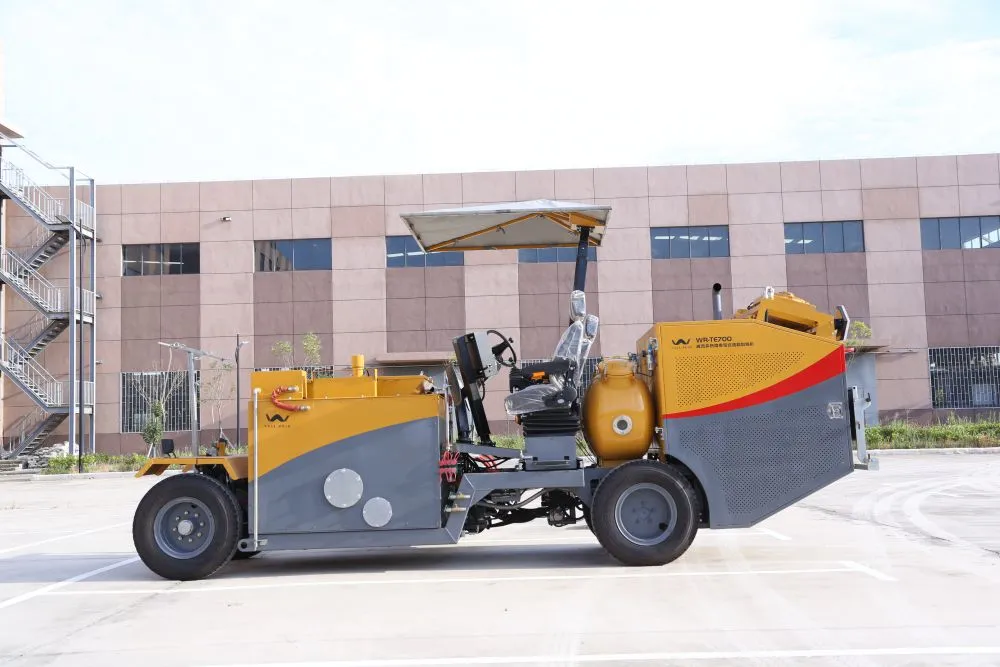

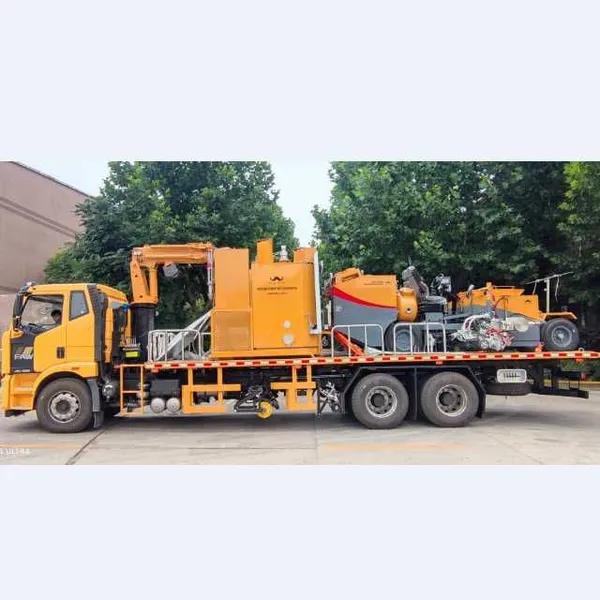

TE-700 Driving Type thermoplastic Road Marking Machine
- 2 Set / Sets per Month
- L/C D/P D/A Credit Card PayPal Cash Escrow Other
Product Details
Brand Name: | TATU | Place of Origin: | China | Model Number: | TE-700 Driving Type thermoplastic Road Marking Machine |
After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 1 Year | Weight: | 4500KG |
Dimension(L*W*H): | 5800X2250X2920mm | Condition: | New | Power(W): | Hydraulic power, imported variable hydraulic pump |
Product Description
Strong power: double wheel side motor and imported engine are used toprovide stable and enough power for the equipment So that the equipment.whether it is marking or walking, has a smooth-running state.
(2) High and low speed: It adopts high and low speed matching configurationto fully meet the needs of marking and walking.
Low speed is used formarking which can meet the requirements of better control and ultra-lowmarking speed, and the scribing speed: 0-5KM/H.

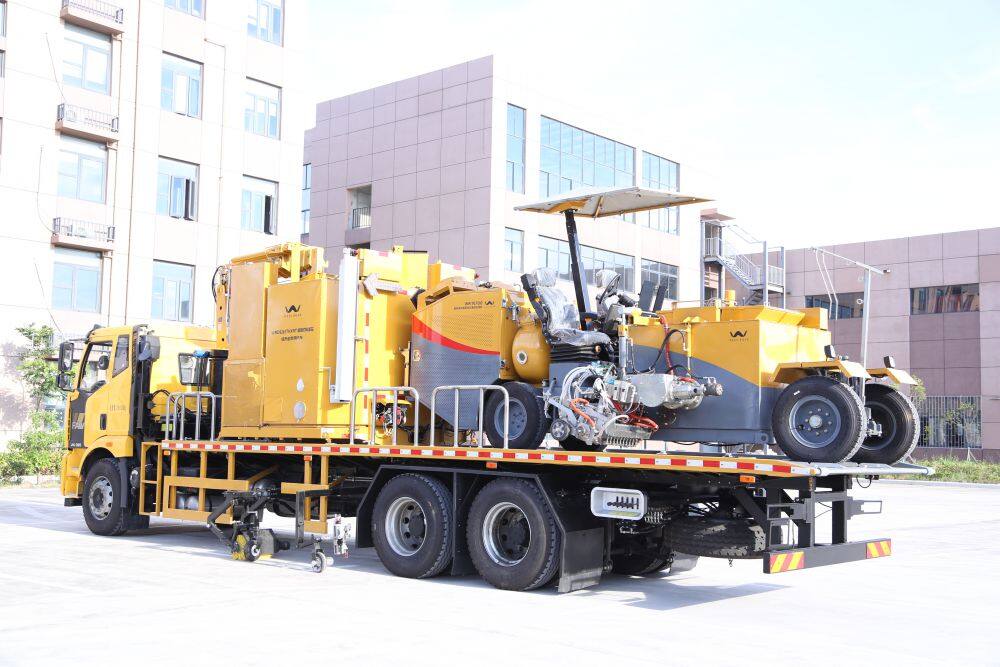

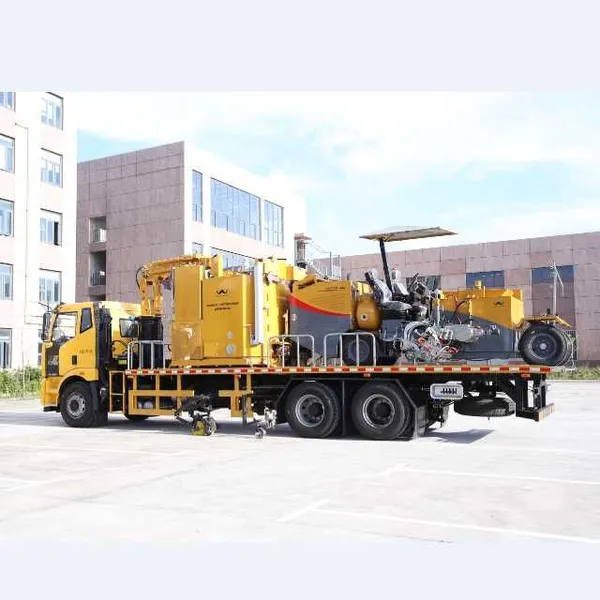

It also adopts high speedto achieve fast transportation without a trailer, and the walking speed0-25KM/H
(3) Switch seamlessly between different marking line types: This machineis equipped with a multi-function marking device and supporting programsand can realize the free switching of each line type and width with onebutton.
The marking line types: dotted lines and a variety of flat lines, suchas: continuous lines, broken lines, stair type lines, rib type lines, piano keytype lines, chessboard type lines, etc.
The line widths are: 50mm, 100mm.150mm,200mm,250mm,300mm,350mm,400mm,450mm,500mm.Allof the above line types can realize single-line or double-line construction. Atthe same time, a marking shoe can be installed on both sides to avoid on thewrong side construction.
(4) Large-capacity pre-heater: equipped with 600L large-capacity conductionoil hot melt kettle, large capacity, high efficiency, diesel burner heating, fastheating speed; material temperature and oil temperature are detected at thesame time, and the temperature control accurately: and the melted materialis heated evenly.
(5) Large capacity glass bead tanks: Equipped with two 130L large glass beadtanks, reduce the glass beads adding times and spray the large and smallparticles alass beads at the same time

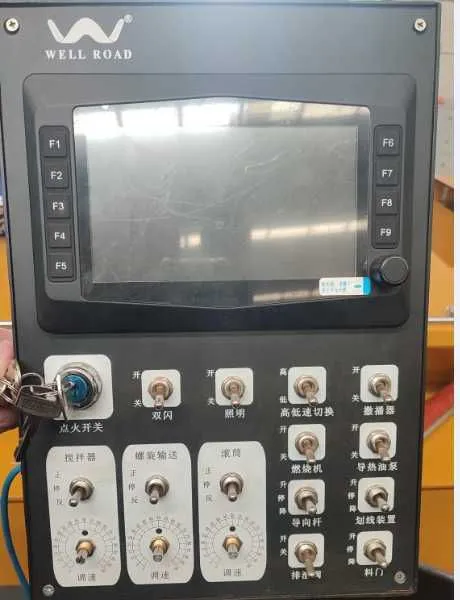

.(6) Optimized man-machine interaction: independently developed the markingmachine computer control system, which can independently control eachknife, and realize digital control of all knife without mechanical adjustment.The computer control system not only controls various marking lines types.but also realizes the speed adjustment and other action control of the painttransfer pump during construction. Marking machine computer controlsystem with simple operation and easy to understand, the operation buttonsare clear, and it is easy to realize line types switching, line width switchingand various operations
(7) Comfortable driving experience: multifunctional seats; electric liftingawning, adjustable left and right at the same time: easy to operate control.
