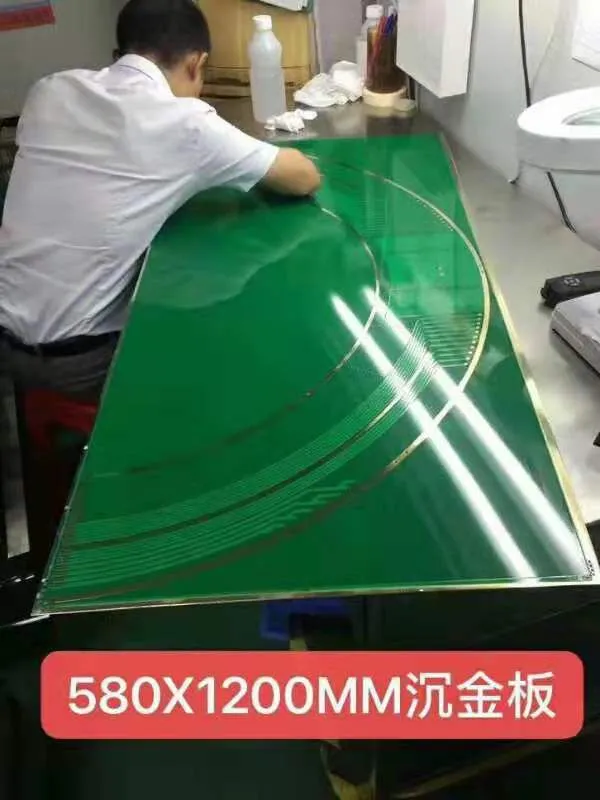

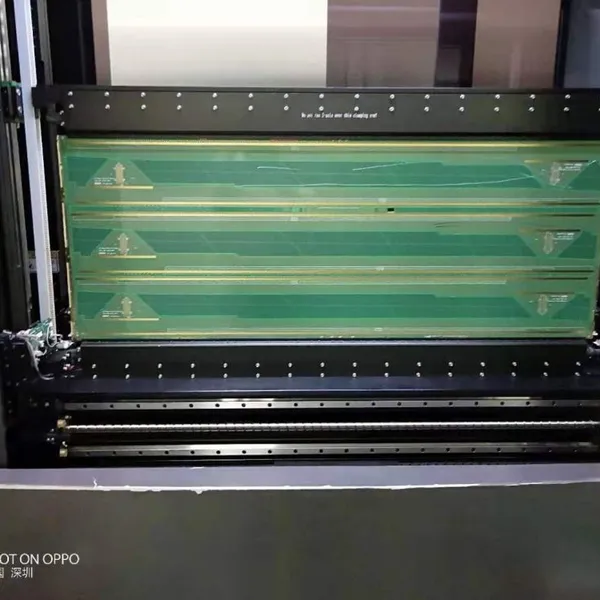

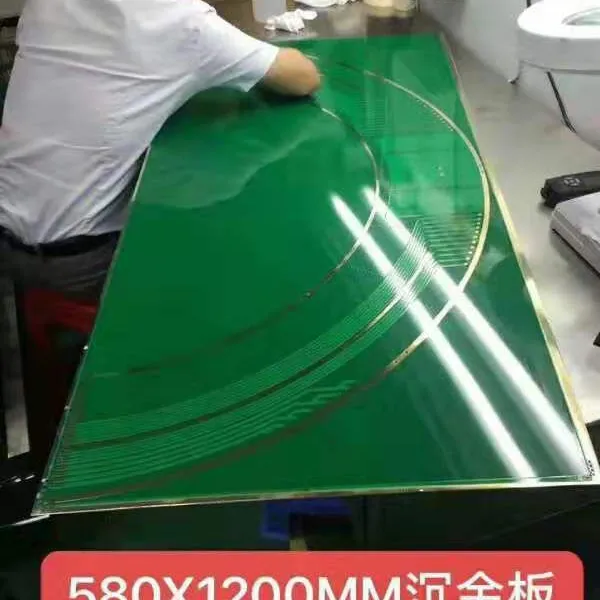

Single Layer, Double-layer, Multi-layer Ultra Large PCB

FOB Price

US$ 120 - 125 / Pair

1 Pair(Min. Order)

Port Wenjin Ferry in Shenzhen, China
Payment TermsT/T L/C
Delivery Detail25 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CHAOSHENGpcb	Place of Origin	Algeria
Model Number	CSPCB4026a0	Surface Finishing	OSP
Min. Line Spacing	8mil	Min. Line Width	8mil
Min. Hole Size	0.10mm-0.35mm	Board Thickness	1.60mm
Copper Thickness	35um	Base Material	FR-4,TG135

Product Description

Product field: communication station，Number of layers: 42L Plate thickness: 5.0mm; dielectric constant 4.20, dielectric loss，Size: 1552*750mm/1PCS，Process structure: high frequency mixed pressure, FR-4TG170+Rogers4008, minimum hole 0.30mm, minimum line width 4/4mil, aperture ratio 30:1, impedance Ω±10%，Surface treatment: immersion gold Minimum hole copper: 20um，Surface treatment: immersion gold Minimum hole copper: 20um

PCBA testing, R-ROYA+AOI

100% AOI+100% testing
