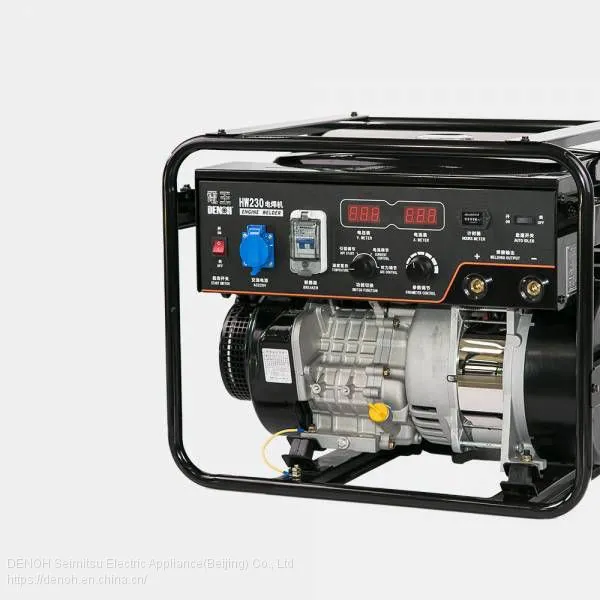

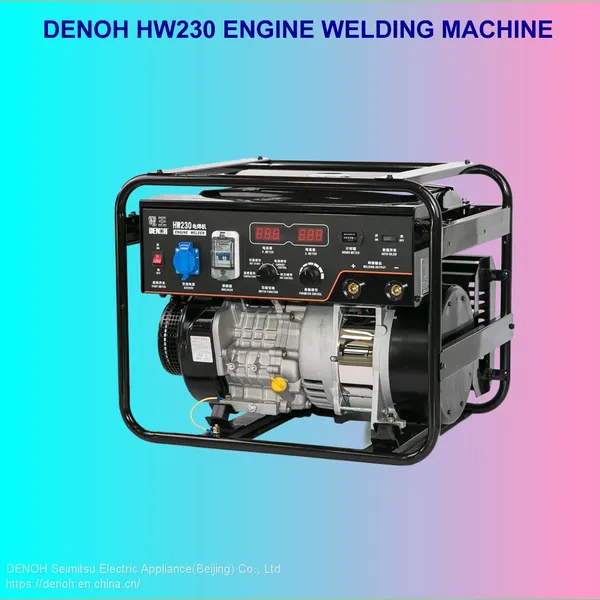

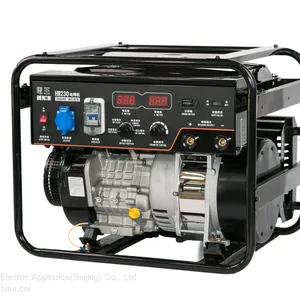

DENOH Portable Diesel Welding Welder Generator HW230 Welding Machine

Name: DENOH Portable Diesel Welding Welder Generator HW230 Welding Machine
Brand: DENOH
Availability: InStock

FOB Price

2400 - 2850 / Unit

1 Unit(Min.Order)

Supply Ability 100 Unit / Units per Month
Port Beijing,Tianjin,Shanghai,Shenzhen,Hongkong
Delivery Detail5 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	DENOH	Place of Origin	China
Model Number	HW230	Certification	ISO9001,ISO14001,ISO45001
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	1 Year
Weight	98kg	Usage	Pipeline welding
Condition	New	Dimensions	707530560MM
Tube Diameter	all

Product Description

1. Adopting digital preset, pre adjustment, and display functions, easy to operate.

2. The arc current and blowing force current can be adjusted to achieve stable welding with low current

3. Fully digital IGBT chopping control technology, stable arc control, good welding forming, and low spatter.

4. Designed for outdoor construction environments, integrating power generation and welding for heat dissipation, without the need for electronic fans.

5. The generator simultaneously outputs two welding windings and one auxiliary electrical winding, which are independent of each other and do not affect each other.

6. Auxiliary AC220V/2kW /50Hz output, can be equipped with tools such as angle grinder, grinding wheel, and lighting during welding work.

7. Suitable for various types of welding rods, it can perform excellent all position welding with cellulose electrodes, low hydrogen electrodes, and simple argon arc welding

8. Brushless and inducer power generation technology

9. The power generation efficiency is high, and the welding machine has strong continuous operation ability, which can achieve 24-hour continuous operation without stopping the machine.

Model No.: HW 230		Insulation grade:H
Form.: Digital brushless		Protection grade:IP23
Welding machine	Rated power	kW	5.6
	Rated current	A	200
	Rated voltage	V	28
	Unload voltage	V	90
	Rated usage rate	%	50
	Adapting Welding rod	φmm	2.0-5.0
	Current adjustment range	A	40-230
	Rated rotating speed	RPM	3600
Electric generator	Rated power	kVA	2
	Rated voltage	V(AC)	220
	Rated current	A	9.1
	Phase number		Single-phase AC
	Power factor	%	80
	frequency	Hz	50
	Rated rotating speed	rpm	3600
	Working status		continuous
	Drive method		Direct coupling
Engine	Name		GT1300
	Form		4-stroke 2-cylinder
	Air displacement	L	0.391
	Max output power	kW(HP)	9.6(13)
	Unload rotating speed	rpm	3800
	Rated rotation	rpm	3580
	Rated output power	kW	16.8
	Start mode		Hand start
	fuel		Gasline
	Cooling method		Air cooling
	Lubricant quantity	L	0.74
Other	Fuel tank capacitance	L	12
	Battery capcitance		12V-36Ah
	Dimension(LWH)	mm	707530560
	Net weigh	kg	98
