Radar Scanning Monitoring System Border Coastal Defense Surface Vessel Surveillance

Radar Scanning Monitoring System Border Coastal Defense Surface Vessel Surveillance photo-1

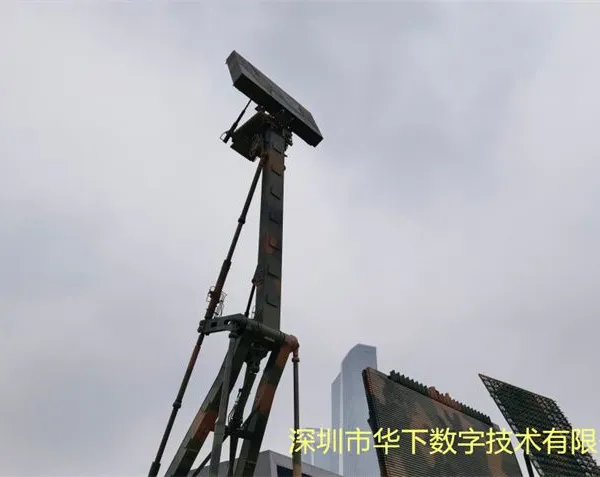

Radar Scanning Monitoring System Border Coastal Defense Surface Vessel Surveillance photo-2

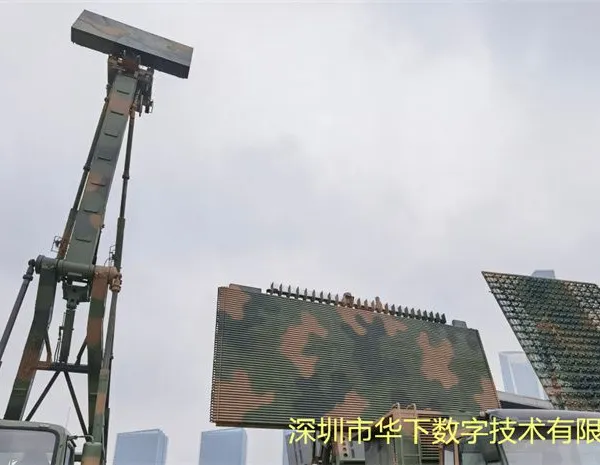

Radar Scanning Monitoring System Border Coastal Defense Surface Vessel Surveillance photo-3
Radar Scanning Monitoring System Border Coastal Defense Surface Vessel Surveillance photo-4
Radar Scanning Monitoring System Border Coastal Defense Surface Vessel Surveillance photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
054
Place of Origin:
China
Model Number:
LDJ
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days
Brand Name 054
Place of Origin China
Model Number LDJ

Brand: Hua Xia

Import or not: No

Support infrared: Yes

Installation environment: outdoor

Voltage: AC220VV

Power: 200WW

Weight: 120kgkg

Product features: detector

Place of Origin: China

Speed: 360 degrees/second

Line: Network

Image quality: HD

Warranty: 1 year

Interface: RJ45

Type: Radar

Model: 054

Radar system

Linear frequency modulation continuous wave radar system

Detection distance

200m~10km (for natural person vehicles)

200-50km (for ships)

measurement accuracy

Azimuth measurement accuracy (rms) ≤ 1 °

Distance measurement accuracy (rms) ≤ 4m

Detection range

Azimuth angle: 20 °

Elevation beam angle: 20 °

Detectable target speed

(0.5-60) m/s

Radar weight

Radar body: 10kg

Continuous working hours

seven × 24 hours

Working status of mains power

Multi objective processing capability

TWS tracking: 10 batches

Loading methods: fixed and vehicle mounted

Reliability and maintainability

MTBCF: ≥ 20000 hours;

MTTR: ≤ 0.5 hours

Interface: Ethernet

Environmental adaptability

Working temperature: -25 ℃~+55 ℃;

Storage temperature: -25 ℃~+65 ℃.

Humidity: ≥ (95 ± 3)% under+35 ℃ conditions;

Rainproof ability: moderate to heavy rain;

Prevent dust and salt spray;


Product Tags: Phased array radar , Radar scanning monitoring system , High-altitude radar
