Help Center8mm Rotary Encoder: Horizontal, Incremental Type, 10 Pulses, 20 Detent Point, With Push Switch, 5pin, Stainless Steel Shaft, Shaft Length 10mm, IP67 Waterproof
Related Products
-
Replace Alps EC08 & LJV RE08 Incremental Horizontal Rotary Encoder Switch Knob With Push Switch, High Reliability, Waterproof, and Long Service LifeNegotiableMOQ: 1000 Pieces -
Rotary Encoder：8mm,Horizontal, Incremental ,with Push Switch, Stainless Steel Shaft,10pluse,20detent, for Walkie-Talkie and Electrical AppliancesUS$ 0.4 - 0.6MOQ: 2000 Pieces
-
EC11 Rotary Encoder Switch Knob With Push Switch, Incremental Type, Pulse Output Potentiometer, 15 Pulses and 30 Positions, Metal Embossed ShaftUS$ 0.2 - 0.8MOQ: 1000 Pieces
-
Agent Distribution of Dongguan LJV Full Series Rotary Encoder Switches&band Selection Multi Gear Switches&metal Shaft Rotary PotentiometersNegotiableMOQ: 1000 Pieces
-
9mm Vertical Incremental Rotary Encoder With Press Switch, 10 Pulse 20 Dotent, Metal Shaft, Long Service LifeUS$ 0.5 - 0.7MOQ: 1000 Pieces

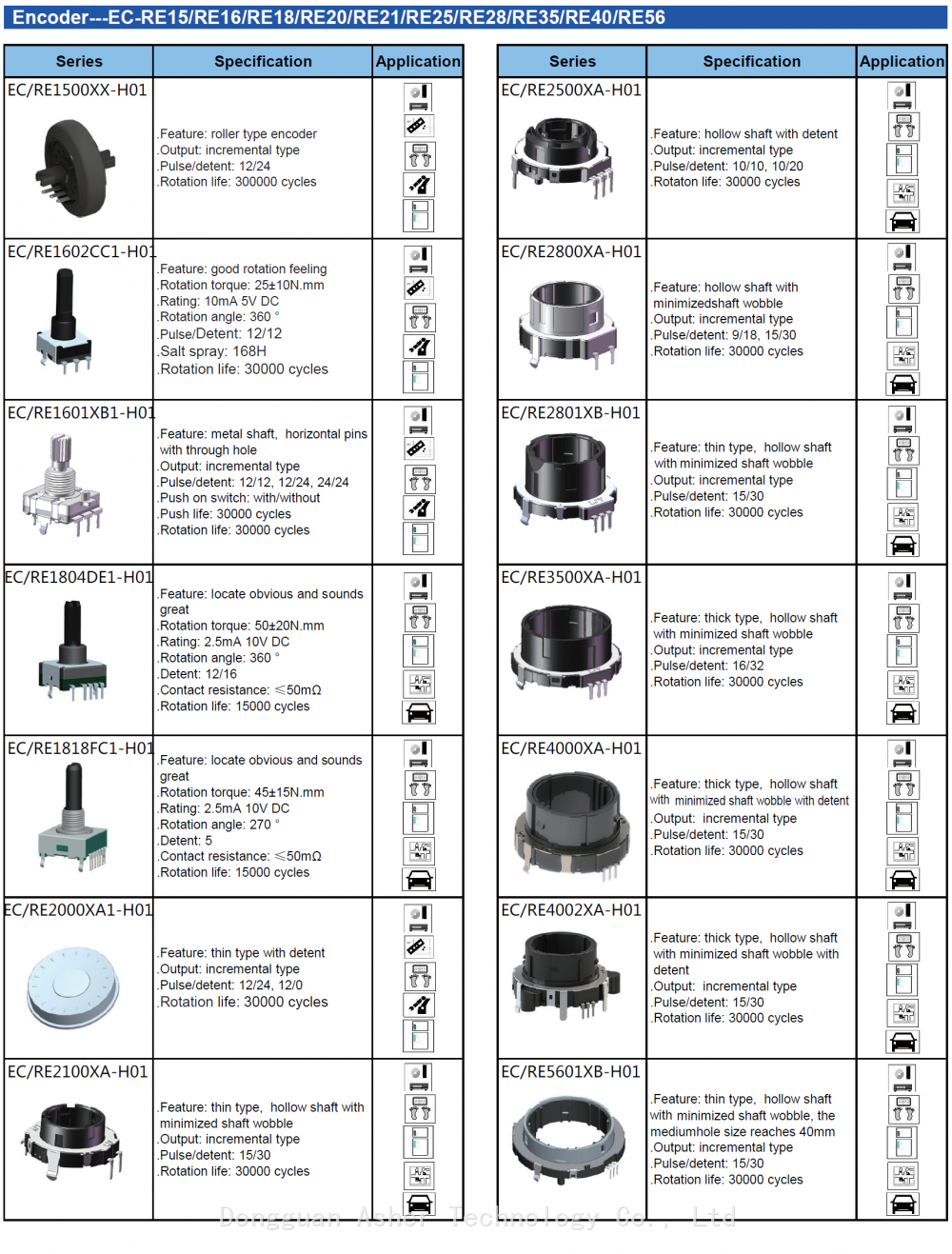

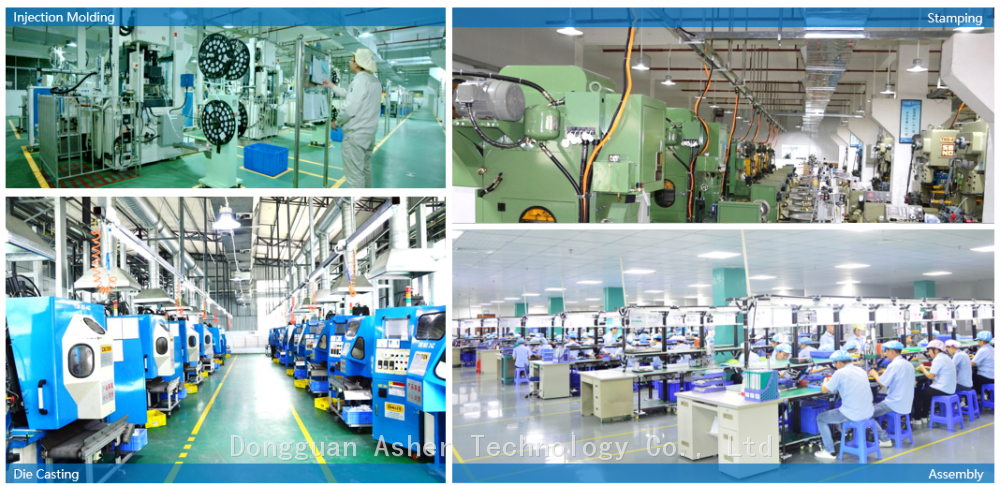

We are Dongguan Asher Technology Co., Ltd. in Guangdong Province, China, mainly engaged in customization, production, and export of 8mm, 9mm, 11mm, 12mm and other series of rotary encoder switches and potentiometers.
Covering types such as incremental encoder switches, absolute value encoder switches, logic encoder switches, Gray code encoder switches, linear potentiometers, etc.
The product has the characteristics of miniaturization, precise coding and positioning, uniform feel, low noise, long service life, and good stability. There are corresponding IP67 and IP68 waterproof products available at the same time.
Our company's products are currently widely used in fields such as home appliances, smart homes, mixing consoles, center consoles, relay stations, walkie talkies, radios, and automotive electronics.
These are available following Specifications :-
1. Mechanical Characteristic:
1.1 Body size: 7.7mm x 9.35mm
1.2 Total length of shaft: 10mm
1.3 Shaft sleeve length: 5mm
1.4 Mounting style: Horizontal
1.5 Total rotational angle: 360degree
1.6 Rotational torque: 200~400gf.cm
1.7 Shaft Wobble: 0.7*L/30mm P-P Max.
1.8 Push-pull strength: 8kgf Max.
2. Electrical Characteristic:
2.1 Max. operating current: 10mA
2.2 Rating: DC 5V
2.3 Insulation Resistance: 100MΩ Min. at 250VDC
2.4 Voltage proof: 300V AC for 1 minute
2.5 Pulse/detent: 10P20
3. Endurable Characteristic:
3.1 Operating temp. range: -30 to 80
3.2 Rotational life: 30,000cycles(15000cycles @IP67)
4. Switch Characteristic:
4.1 Rating voltage: DC 5V
4.2 Max current: 10mA
4.2 Switch Mode: Push switch
4.3 Push torque: 1200+/-400gf
4.4 Push life: 20,000cycles
