Factory Genyond Organic Chicken Essence Collagen Powder Forming Drying Making Machine Production Plant Line

1. The seasoning (chicken essence, shavings essence, seafood essence) production line adopts the form of integrated crushing, mixing, pelletizing, drying, cooling, sorting and sifting, and aroma adding section, which not only has clear functions, but also can organically combine, and coordinate the operation. Achieve process flow.

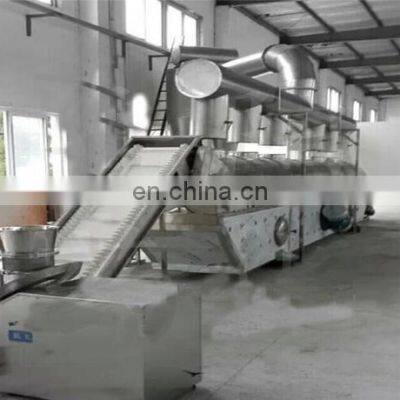

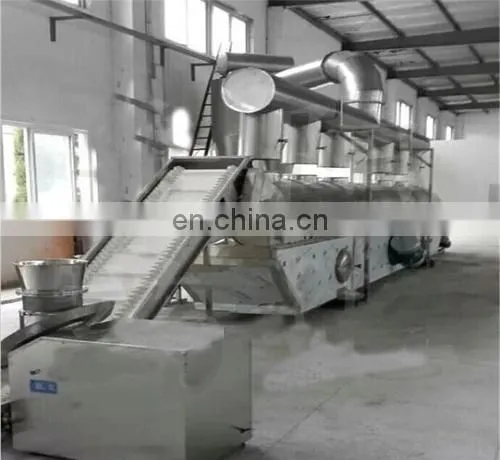

2. The core part of the production line: drying system. In the pre-drying section, a high pressure and low air volume fan is used to completely fluidize the wet chicken essence particles. Low pressure and high air volume fan is used in the dry section to take away more water in unit time and ensure even drying. The high air volume fan is adopted in the cooling section, which can take away heat quickly and reduce the temperature of the product. It not only meets the requirement of moisture control, but also facilitates the subsequent packaging process.

3. Drying medium circulation system: the blower, heater and air inlet pipe are made of stainless steel to avoid the possibility of pollution caused by unclean wind.

4. Quick opening structure is adopted between the upper and lower bed of the drying host machine, which changes the traditional structure and adopts bolt fixed connection, greatly facilitating the thorough cleaning of the system.

5. The pass of the bed plate adopts the combined structure, and the tongue hole is used in the front section, so that the material can move forward without leakage; The middle and back end adopt straight hole, the penetration rate of hot air is higher, the heat exchange of drying process is more full.

6, the bed body is supported by stainless steel seamless steel tube, the bed structure is stronger, long service life.

7. The inside of the bed body is made of stainless steel with full welding, so as to avoid sewage entering the insulation layer when cleaning, thus affecting product quality. Besides, there is a cleaning port for convenient cleaning equipment.

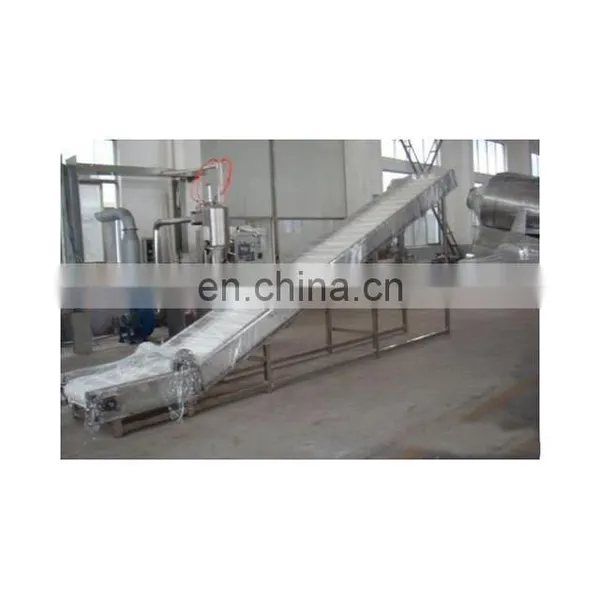

8. The system is also equipped with a crushing unit with dust absorption, a high-speed mixer, a material transfer conveying unit, a screening and incense adding unit, etc.
