Product Description

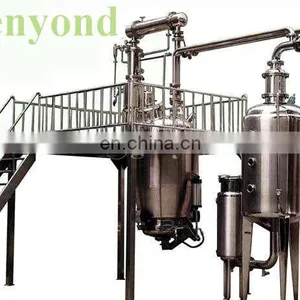

10% cut off leaf essential oil extraction machine with manufacturer
Product details
| Name | Extraction and Evaporation Equipment |
| Application | various plant and animal proteins with alcohol, methane and butane |
| Capacity | 50L to 5000L |
| Material | SUS304 |
| Product Keywords | leaf essential oil extraction machine |
Main Datas of Ultrasonic Herb Solvent Extraction Equipment
| Model | Capacity | Hot water generator power | Material | Heating Area of Extraction Tank | Condensing Area of Condenser | Vacuum pump power |
| GYS10 | 10L | 6KW | SUS304 | 0.21M2 | 0.22 M2 | 0.55KW |
| GYS20 | 20L | 8.8KW | 0.28 M2 | 0.5 M2 | 0.55KW | |
| GYS30 | 30L | 10KW | 0.33 M2 | 0.72 M2 | 1.5 KW | |
| GYS50 | 50L | 12KW | 0.5 M2 | 0.83 M2 | 3KW | |
| GYS100 | 100L | 24KW | 0.98 M2 | 0.95 M2 | 4KW | |
| GYS150 | 150L | 25KW | 1.45 M2 | 1.2 M2 | 4KW | |
| GYS200 | 200L | 27KW | 1.85 M2 | 1.5 M2 | 6.5 KW | |
| GYS300 | 300L | 35KW | 2.85 M2 | 2.3 M2 | 8KW |
Remark: capacity (10L ,20L,50L ,100L ,500L,1000L,1500L,2000L,3000L,4000L,5000L and more) available according to requirements.We have rich experience and can also design and manufacturing according to your demand.
The essnetial oil output rate can get 20~30%!
Parameters of Ultrasonic Herb Solvent Extraction Equipment
Ultrasonic generator: 28 KHZ ,55 KHZ).
Filter material: stainless steel material basket,stainless steel filter.
Ultrasonic control: digital ultrasonic control
The extracting tank heating area: 0.25 M2
Ultrasonic timer: digital
Heating timer: digital
Interlayer water pressure: the atmospheric pressure
Water extraction temperature: room temperature to 95 degrees,adjustable
Alcohol extraction temperature: room temperature to 73 degrees,adjustable
Power supply: single 50 HZ, 220 V
Extraction tank volume: 20L (Three layers of insulation hot water heating system.)
Extraction tank inside the water cycle: small heat pumps.
Material: the whole machine all adopt high quality food grade SUS304 2B, suitable for weak acid,
weak alkali cleaning equipment
The equipment surface treatment: mirror polishing tank surface, outer surface drawing inferior smooth processing.
Device size: 450*250*550 (length * width * height,can be customized according to customer's requirement
We are factory and good at essential oil extracting plant and machines,design and manufacturing.welcome your inquiry!
Genyond Machinery Industrial Group has 3 extraction machine factory .Manufacturing Product:there are distillation, alcohol extraction, supercritical CO2 and sub-critical butane extraction technology and equipment, can be used in various plant and animal protein essential oil extraction. Eighteen years of production and manufacturing experience, stable equipment, high oil yield.
