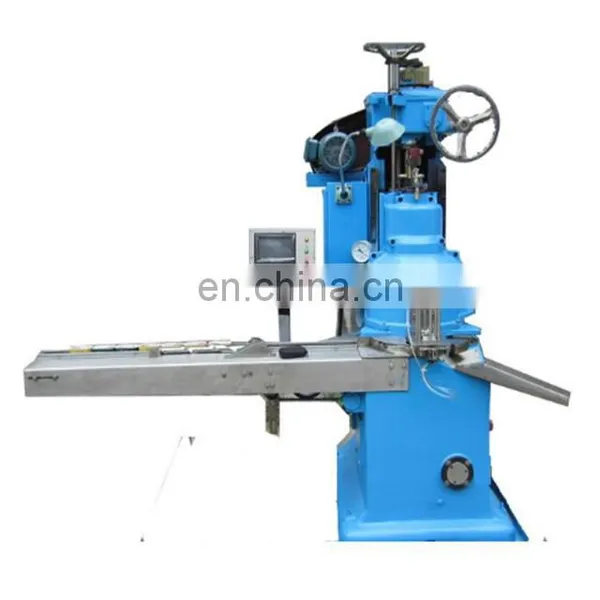

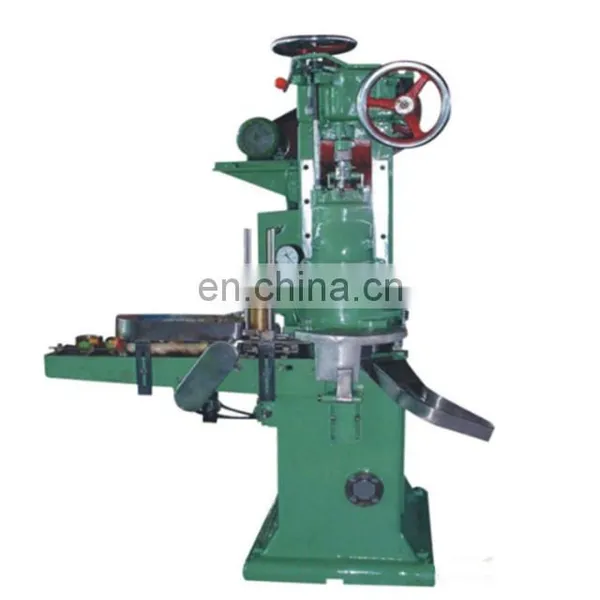

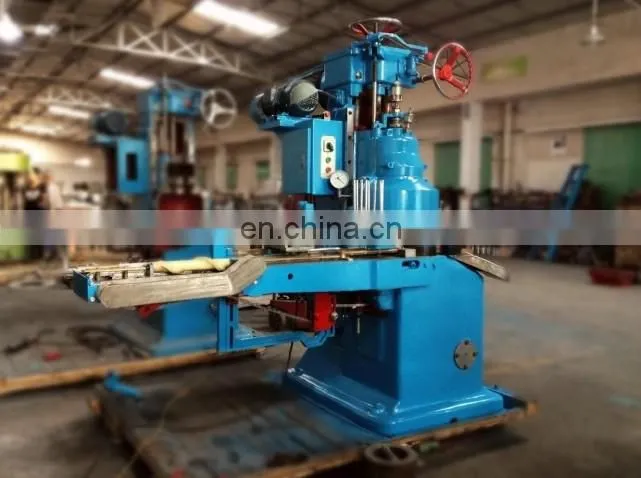

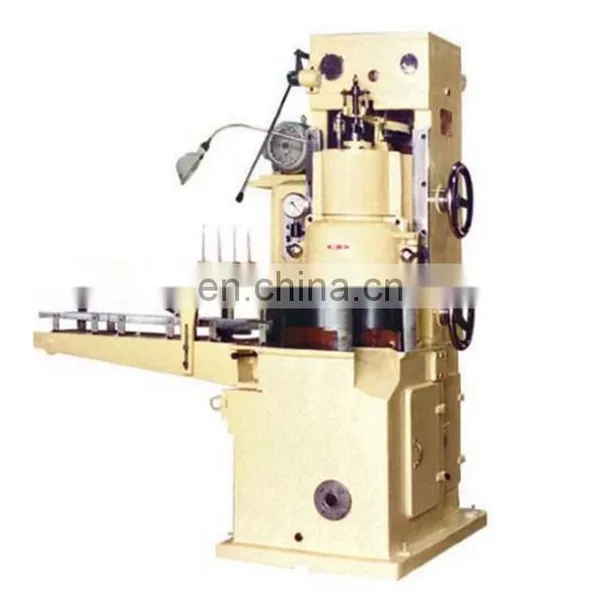

high speed metal can vacuum seamer machine
- T/T Credit Card
You May Like
-
Popping Boba Production Line Fruit Juice Popping Boba Making Machine
-
500L per hour ice cream processing plant
-
Press Coconut Oil Machine Presser Cold Press Virgin Coconut Oil Machine Presser Olive Oil Processing machines
-
Commercial Cold and Hot Peanut Coconut Olive Oil Press Machine Oil Mill Making Pressing Extracting Machine
-
500kg coconut oil cold pressing machine
-
Oil Pressing Machine Palm Oil Mill Design/sesame Seed Oil Extraction Process
Product Description
Tin can seamer
Tin can sealing machine
Canned food vacuum sealing machine
purpose and features

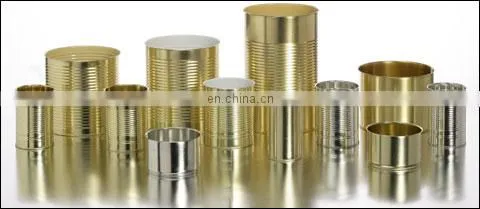

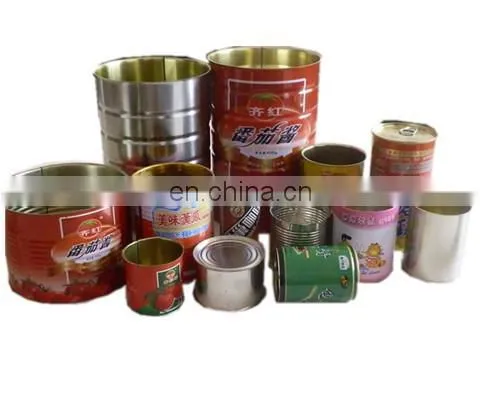

This machine is equipped with two pairs of single head automatic vacuum sealing equipment for sealing round cans (solid cans) made of tinplate in canning food factory.
This machine is widely used, can seal the department issued a variety of different specifications of cans, easy to adjust operation, reliable use.
The machine has the following safety devices to ensure the safe operation of the equipment.
1. Joint control device for canning cover: when the canning body enters, the canning cover shall be allocated correspondingly; if there is no canning, there is no lid.
2. "uncapped rolling seal" : when the canister body that fails to be allocated to the canister cover enters, it can also pass the sealing mechanism smoothly, so as not to damage the parts of the sealing mechanism due to the clamping head mold of the canister body.
3. Safe clutch device: when the drive fails and becomes overloaded, the drive can be interrupted and the tank can be stopped.
|
Application |
Food, chemical , |
|
Can size |
Dimension |
|
Speed |
Cans/min |
|
Vacuum |
With |
Major technical specifications
Production capacity... 42 cans/min
Head speed... 756 RPM
Sealing range :(with a single head only at random)
Tank diameter (head)... 50 ~ 70 mm
(head)... 70 ~ 115 mm
Outside the tank high... 50 ~ 125 mm
The nose vacuum... Mercury column greater than or equal to 520 mm
Motivation: motor model... Y90L - 4
Rated power... 1.5 kw
Full revolution... 1400 revolutions per minute
Overall dimensions (length X width X height)... X1460x1900 1210 mm
The host weight (about)... 1355 kg
Ancillary equipment:
Equipped with vacuum box for stabilizing device volume... 325 l
Applicable vacuum pump:
Model name... Szb-8 cantilever water circulation vacuum pump
Traffic... 8~38.2 m3 / h
Mercury column height... 650 ~ 440 mm

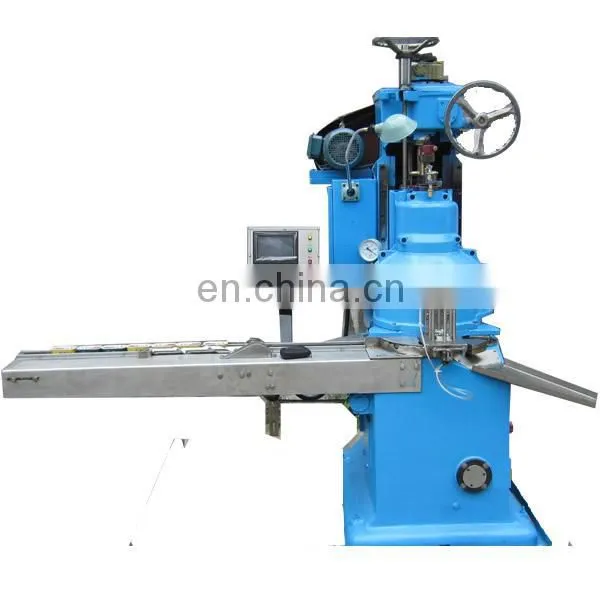

Vacuum Can Seamer for Round Can is a full automatic vacuum double seaming machine equipped with 4-positions rotary clincher and single seaming station. It designed for seaming various size of cylindrical can in tin plate or aluminium. Be suitable for food and beverage canning industry.
GT18 Technical Data
Max. Output Speed: 100 -200cans/min
Min./Max. Can Diameter: 52-105 mm
Min./Max. Can Height: 39-133mm
Power: 3 kW
Dimensions(L×W×H): 1600*2400*2000MM
Weight Approx: 2500 kg
Standard Features
Single Seaming Station
Synchro Clinching Station with 4 Positions
Synchronization Timing Screw
AC Inverter Drive (Optional)
Cam Drive Seaming Roll Feed
Vacuum Seaming (Vacuum Pump Extra)
No Can / No End Feed
Alarm and Delaying Stop if End Insufficient
Auto Stop / Alarm if Jam-Can, Jam-End
Filler Synchrodrive with Safety Clutch (Optional)
