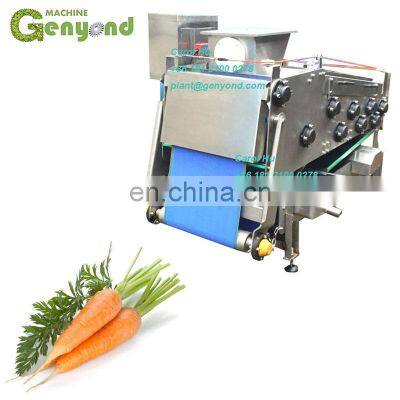

GYC-20 Juice Belt Press Machine

Belt type juicer juice extractor press presser pressing machine for fruit vegetable apple pear sugarcane carrot fruits vegetables

Equipment Technical Description:

1) Airbag tensioning device: This airbag tensioning device mainly works by injecting high pressure air and completes its function. When the equipment is off, the air pressure in the air bag is equal to the normal atmospheric pressure, so it belongs to the normal contraction state. Before the equipment starts to work, open the compressed air valve and adjust the intake pressure through the air pressure regulator to achieve the required tightening effect.

2) Pneumatic adjustment deviation device: The pneumatic adjustment deviation device mainly uses the forward and backward movement of the cylinder to push forward and backward movement of the deviation wheel to complete the adjustment of the conveyor belt. When the equipment is in operation, the conveyor belt will inevitably move to the left and right. Pneumatic adjustment and deviation device can achieve the function of adjusting deviation automatically through the collision of the conveyor belt with the control valve of the cylinder under the situation of the left and right movement of the conveyor belt.

Equipment characteristics:

1) The general equipment is screw juicer applies a wide range of materials, but the material yield is relatively low. Theory of 60% juice yield, the actual use of 35% ~ 45%. It is also complicated to clean the equipment. The internal filter of the equipment is relatively easy to block, and the material can only be juicing once.

2) The existing belt press juicer commonly use multi-stage multi-axis continuous pressing structure, The juice yield is about 60% to 75%.

3) This model of belt press juicer has a high production efficiency, the juice yield can reach 85%. This model solves the shortcomings of inconvenient tension in the conveyor belt. It is convenient to adjust the pressure to achieve the adjustment effect and directly solve the tension insufficiency problem in the conveyor belt. In the past, the deviation of the conveyor belt has always been a problem, and this model can automatically adjust the deviation of the conveyor belt through the pneumatic components. This model can achieve high juice extraction rate through a single conveyor belt, which lower much cost and easy maintain comparing the traditional double conveyor model.
