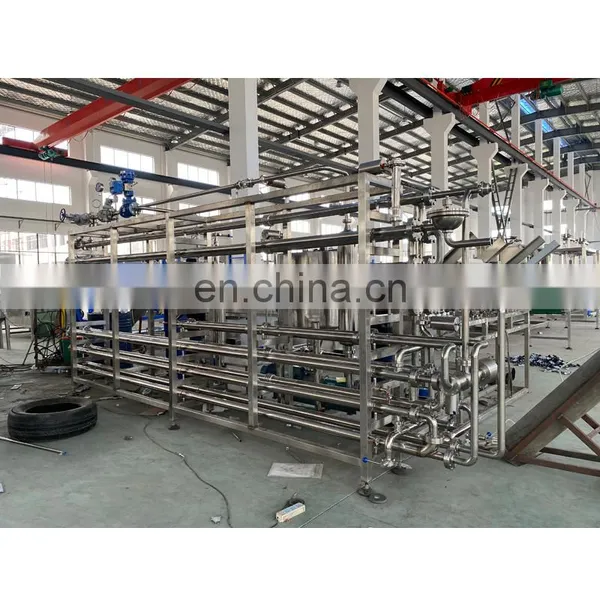

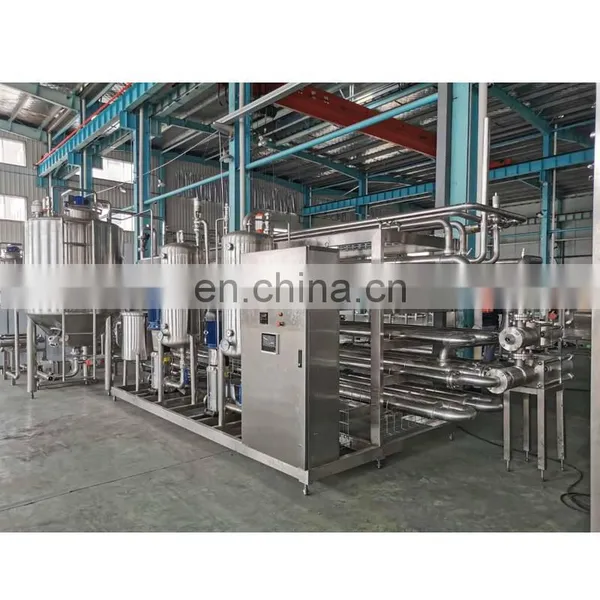

Tubular Sterilizer Pasteurizer for High Viscosity Juice Puree Concentrate
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2013
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1000L Tobacco Extraction Tanks/ Nicotine Extraction LineNegotiableMOQ: 1 -
1000L Nicotine Stainless Steel Vertical Jacketed Extraction Tanks/production LineNegotiableMOQ: 1
-
1000L Nicotine Stainless Steel Vertical Jacketed Extraction Tanks MachineNegotiableMOQ: 1
-
1000L Stainless Steel Vertical Jacketed Extraction Tanks for Extract Nicotine From TobaccoNegotiableMOQ: 1
-
Stainless Steel Jacketed Solvent Nicotine Extraction Tank MachineNegotiableMOQ: 1
Company Profile
Products Description

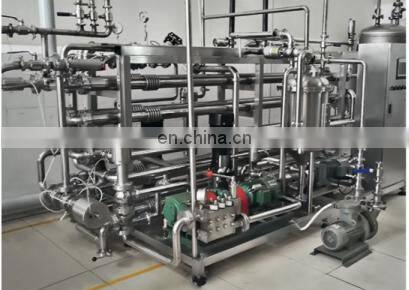

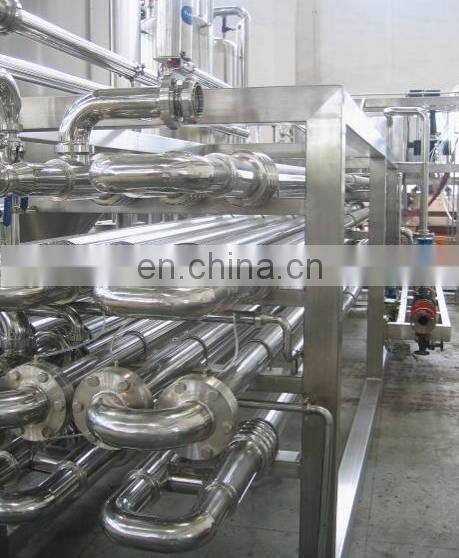

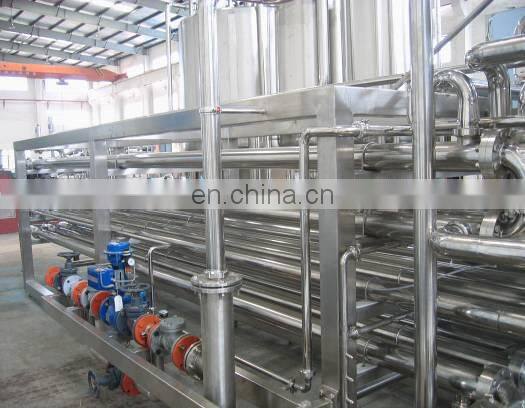

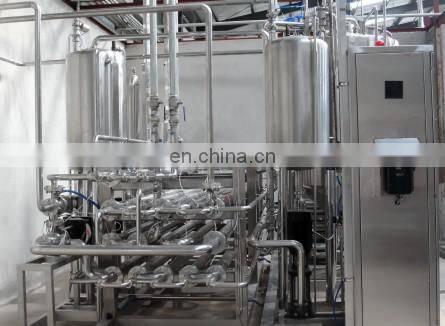

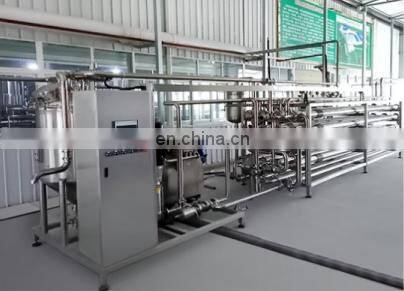

This machine by taking steam, hot water and cold water as the heat transfer media, the sleeve type sterilizer is especilly suitabl for sterilization of materials of high viscosity such as jam, concentrated fruit juice, etc. The main parts of the equipment adopts a four -layers sleeve type structure.
The heat exchange media flow in the inner and outer layers, and the materials make reverse flow at the middle layer., so as to ensure the maximum heat exchange efficiency. It is featured by short heating time, even heating inside materials, good sterilization effect and low energy consumption. The material pipe includes the temperature rising section, temperature holding section and temperature falling section. The material pipe adopts flanged connection at the connection places. The key pints are provided with steam shielding devices to ensure that the materials are safe and sterile.
Machine Features
1. Composed of four layer pipes heating exchanger; with heating section, sterilizing section, and cooling section.
2. With steam protection, automatic and pneumatic control, the output and reflux is controlled by valves via thermal resistance and PLC. There is diverison device to enhance the heat transfer effect and can avoid scaling inside the tube.
3. The heating-holding section has reasonable structure to guarantee the temperature stability of product.
4. PLC automatic system, mulit-stage recorder for recording the process data.
5. Feeding tank with electric liquid levle indicator and agitator
6. Use lobe pump for feeding to high pressure piston pump to make sure enough pressure.
7. Hot water circulation passing centrifugal pump, and temperature automatic control system.
8. Self-CIP system
Product Paramenters
Model |
GYTG-500 |
GYTG-1000 |
GYTG-3000 |
GYTG-5000 |
GYTG-10000 |
||||
Capacity |
500L/H |
1000L/H |
3000L/H |
5000L/H |
10000L/H |
||||
Sterilizing time |
2-300s(Designed according to requirements |
||||||||
Sterilizing temperature |
95-138 degree celsius |
||||||||
Material inlet temperature |
25-45 degress celsius |
||||||||
Outlet temperature |
25-45 degress celsius |
||||||||
Compressed air pressure |
≥0.7 MPa |
||||||||
Compressed air consumption |
10 m3/H |
||||||||
Steam pressure |
≥0.7 MPa |
||||||||
Steam consumption |
~100 kg/h |
~200 kg/h |
~600 kg/h |
~1000 kg/h |
~2000 kg/h |
||||
Total Power |
10 kW |
15 kW |
28 kW |
45 kW |
75 kW |
||||
Size(mm) |
5800*1700*1700 |
8800*2100*1800 |
8800*2250*1900 |
9500*2500*2000 |
9800*2800*2300 |
||||
