Home > Manufacturing & Processing Machinery > Machinery for Food, Beverage & Cereal > Fruit & Vegetable Processing Machinery > Automatic Cold Press Citrus Oil Extraction Machine

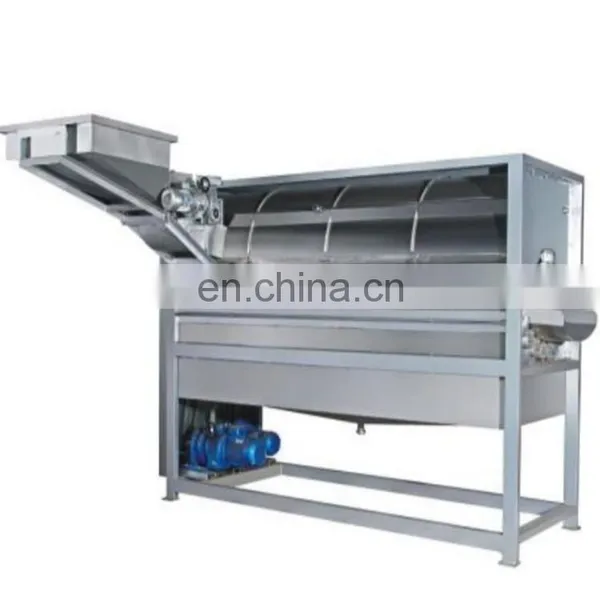

Automatic Cold Press Citrus Oil Extraction Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2013
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Candied Fruit and Dried Fruit Processing Production LineNegotiableMOQ: 1 -
Turnkey Fruit Paste Strawberry Jam Processing Production Line PlantNegotiableMOQ: 1
-
Fruit Apple Date Jam Making Cocoa Garlic Sauce Tomato Paste Making Machine Production LineNegotiableMOQ: 1
-
Spirit Equipment Alambique Alcohol Distiller Brandy Distiller Traditional French Cognac CharentaisNegotiableMOQ: 1
-
Cupping, Copper Distiller, Brewing Equipment, Household Baijiu, Pure Dew Machine, Wine Maker.NegotiableMOQ: 1
Product Description
Specification
Model |
Capacity |
Power (KW) |
Dimension (mm) |
MYJ-0.5 |
0.5T/H |
3 |
2200X800X1600 |
MYJ-1 |
1-2T/H |
3.7 |
2600×900×1800 |
MYJ-2 |
2-3T/H |
7.0 |
3200×1000×2000 |
MYJ-5 |
5T/H |
18 |
4000X1200X2000 |
MYJ-10 |
10T/H |
22 |
5500X1400X2500 |
Citrus fruit skin oil grinder is suitable for the skin grinding oil of all kinds citrus fruits, like orange, lemon, tangerine,
tangerine, grapefruit, and other fruits Structure characteristics and working principle of lemon oil mill:
It is mainly composed of two parts, a stainless steel toothed roller and a toothed screw shaft. When working, the citrus fruit moves axially along the toothed roller under the advancement of the screw shaft and rolls. The stainless steel tooth pierces the oil cell and the oil is washed away by high-pressure water at the same time. , Enter the post-separation process.
It is widely used in oil grinding conditions in large citrus processing plants.
The equipment is that the oranges and tangerines move forward and roll under the rotation of the stainless steel needled drum.
At the same time, the stainless steel needle pierces the oil cells, so that the oil in the oranges and orange peels flows out, and the oil is removed under the action of high-pressure spray water. Flush, so as to achieve the effect of oil separating.
The machine is composed of frame, reducer, reducer sprocket, sprocket cover, transmission sprocket and other components. When working, the stainless steel needled drum rotates under the drive of the drive sprocket, so that the fruit in the drum rolls at 360 degrees and advances forward, which is conducive to the stainless steel needle piercing the fruit oil cells, causing the oil in the fruit skin to flow out, and the high-pressure water will The oil is washed away, so that the oil on the surface of the fruit can be quickly separated to achieve the effect of oil removal.
tangerine, grapefruit, and other fruits Structure characteristics and working principle of lemon oil mill:
The equipment is composed of spiral, grinding roller, inlet and outlet hopper, spray pipe, water collection trough, etc. When
working, the material enters the middle of the spiral and moves to the discharge port through the spiral. Rub with the barbed grinding roller at the bottom to achieve the effect of oil grinding. At the same time, the high-pressure water of the upper spray pipe washes the oil away into the sump and enters the next separation process;
working, the material enters the middle of the spiral and moves to the discharge port through the spiral. Rub with the barbed grinding roller at the bottom to achieve the effect of oil grinding. At the same time, the high-pressure water of the upper spray pipe washes the oil away into the sump and enters the next separation process;
It is mainly composed of two parts, a stainless steel toothed roller and a toothed screw shaft. When working, the citrus fruit moves axially along the toothed roller under the advancement of the screw shaft and rolls. The stainless steel tooth pierces the oil cell and the oil is washed away by high-pressure water at the same time. , Enter the post-separation process.
It is widely used in oil grinding conditions in large citrus processing plants.
The equipment is that the oranges and tangerines move forward and roll under the rotation of the stainless steel needled drum.
At the same time, the stainless steel needle pierces the oil cells, so that the oil in the oranges and orange peels flows out, and the oil is removed under the action of high-pressure spray water. Flush, so as to achieve the effect of oil separating.
The machine is composed of frame, reducer, reducer sprocket, sprocket cover, transmission sprocket and other components. When working, the stainless steel needled drum rotates under the drive of the drive sprocket, so that the fruit in the drum rolls at 360 degrees and advances forward, which is conducive to the stainless steel needle piercing the fruit oil cells, causing the oil in the fruit skin to flow out, and the high-pressure water will The oil is washed away, so that the oil on the surface of the fruit can be quickly separated to achieve the effect of oil removal.
