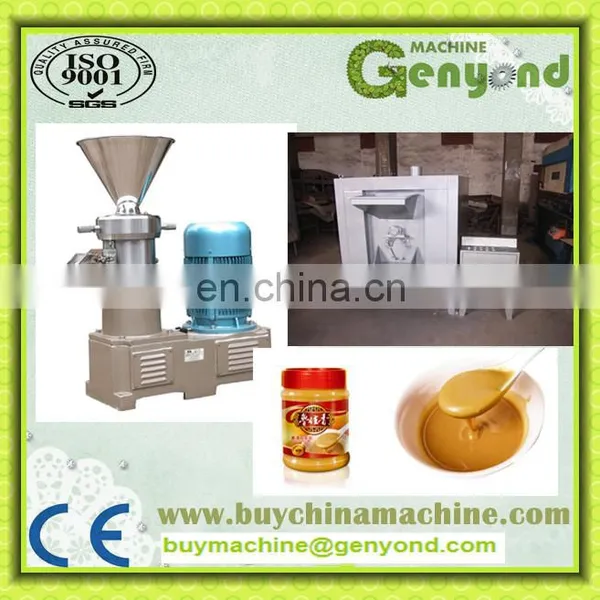

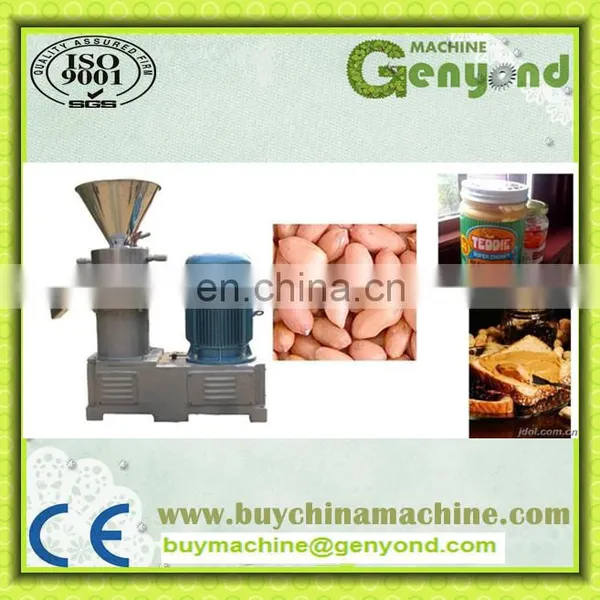

This peanut butter grinder machine is using different shape of stators and rotors, crushing under the high circumgyration. Grinding the material through cutting, milling, high- frequent-shaking. The distance between stators could be adjusted and grinding by recirculation. This machine has many advantages. Compacted structure, stable working, low noise, rust-proof, easy to clear and maintain.
We can get smooth and fine butter by this machine.

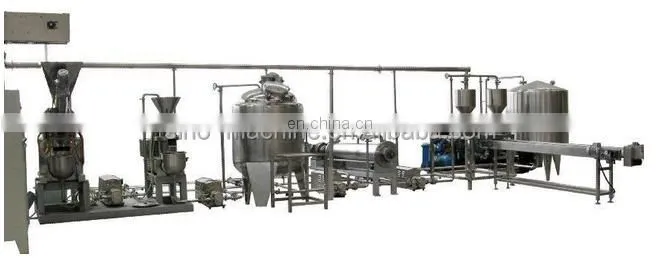

Processing flow chart
raw materials(peanut) → stone and foreign matters remover → Baking → Cooling→ peeling → picking → coarse grinding → deployment → fine grinding → cooling → degassing → filling .
Equipment list:
Oven baker, cooling zone, peeling machine ,conveying picking belt , coarse grinder , ultrafine grinder , condensing machine , gas removing tank , filling machine .
Brief Introduction of each machine
1,Oven baker: to bake peanuts.
2,Cooling zone: use the principle of pulled out of heat by the fan , cooling the baked peanut .
3,Peeling machine: peeling the peanuts after drying and baking, in the process peanut meat and skin automatically separated to ensure t4,he quality of peanut after peeling .
5,Conveying picking belt: selection of the unqualified peanut and food debris .
6,Coarse grinder: grinding peanuts initially.
7,Ultrafine grinder: after coarse grinding peanuts for further grinding, to further improve the processing fineness.
8,Condensing machine: the cool grinded peanut butter .
9,Gas removing tank: degassing before filling the peanut butter .
10,Filling: The filling and packaging.
Model of the peanut butter processing machine
|
Model |
TZ-80 |
TZ-130 |
TZ-180 |
TZ-240 |
|
Output size |
2-50 Micro |
2-50 Micro |
2-50 Micro |
2-50 Micro |
|
Capacity |
30-40kg/h |
200-250kg/h |
400-450kg/h |
1000-1500kg/h |
|
Voltage |
380v,50hz |
380v,50hz |
380v,50hz |
380v,50hz |
|
Power |
4kw |
15kw |
22kw |
37kw |
|
Die of rotor |
80mm |
130mm |
180mm |
240mm |
|
Size (mm) |
685*335*928 |
975*456*1054 |
981*471*1124 |
1319*500*1276 |
|
Weight(kg) |
210 |
400 |
420 |
1300 |
