Mille Crepe Cake Layer Production Line

Mille Crepe Cake Layer Production Line photo-1

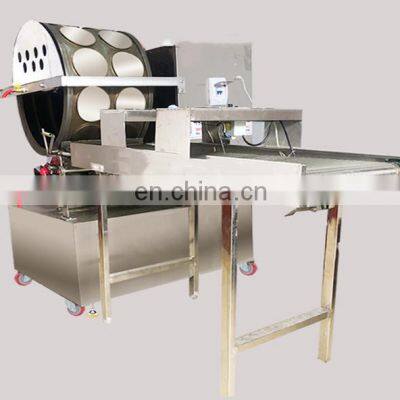

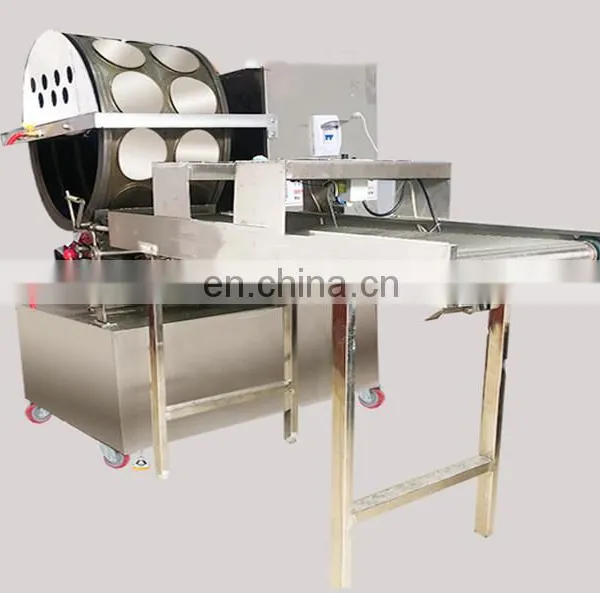

Mille Crepe Cake Layer Production Line photo-2

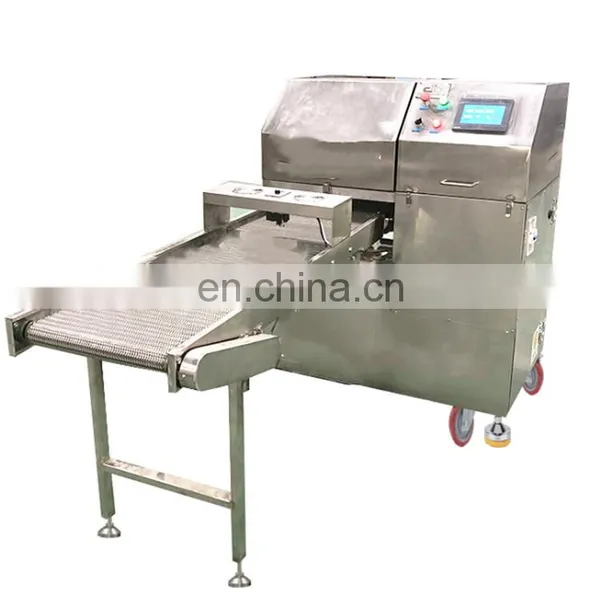

Mille Crepe Cake Layer Production Line photo-3

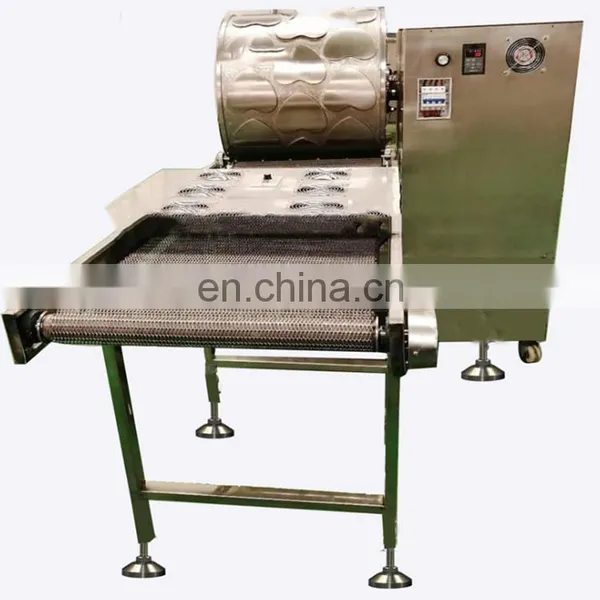

Mille Crepe Cake Layer Production Line photo-4

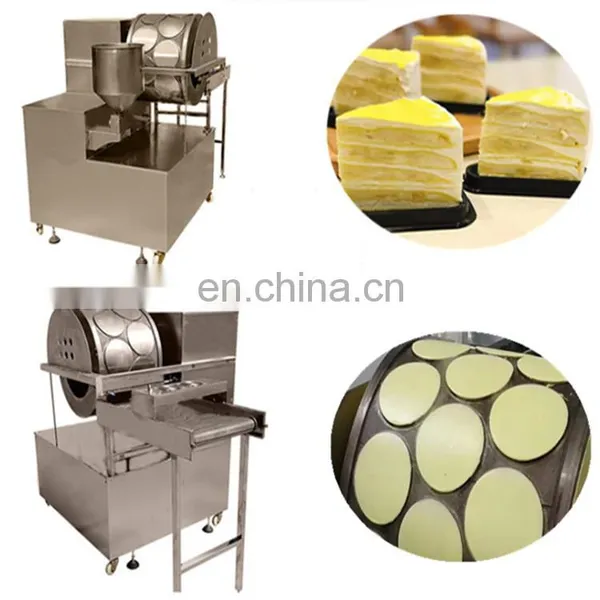

Mille Crepe Cake Layer Production Line photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2013
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description
Spring roll wrapper making machine
Egg roll wrapper making machine
Spring roll peel making machine
Mille crepe cake layer making machine
Egg pancake making machine
Egg dumpling skin making machine
Egg dumpling wrapper making machine


Put the prepared egg/flour slurry into the slurry bucket, when the roasting wheel is heated to 160°C, turn on the slurry pump to deliver the egg slurry to the nozzle, operate the clutch lever to make the egg slurry adhere to the arc surface of the roasting wheel. When the baking wheel rotates through an angle of 270-300 degrees, the egg mixture is cooked and automatically separated from the baking wheel to form a fixed thickness of egg skin or immediately roll up spring rolls. The heating method of grill wheel is divided into electric heating electromagnetic heating and gas heating for users to choose.
Model
SRP-
Power
220V 50Hz 0.37kw
Heating
Electric, gas, ....
Product Diameter
150-320mm (customized )
Product Thickness
0.4 -1.5mm
Baking temp.
150-200℃
Baking time
0-60s
Capacity
800-2000pcs/h (customized)
Dimension
2200x1150x1570mm (customized)
Weight
500kg
实物图(1张正面+1张侧面+1张背面+1张解析图含 产品的长/高/宽/等信息)+装修效果案例 (4张)总计8张
Detailed Images
 1. The produced egg skin has uniform thickness and is formed at one time.
2. Digital temperature control system, real-time temperature monitoring without waste.
3. The thickness of the egg skin can be adjusted by the eccentric wheel.
4. Independent motor control, frequency conversion speed regulation.
5.The cake mechanism is compact and the design is reasonable. The pulp bucket, host and mesh belt adopt independent split design, and the drive is individually controlled. The
drive adopts a variable frequency speed regulating motor, which is easy to adjust and no noise. The electric appliance adopts
Chint Electric. The temperature control device is far-infrared temperature detection, and the temperature is controlled by +1degree.
6.Slurry bucket The slurry bucket is inclined to collect materials, detachable, and the bottom is designed with a valve, making it easy to clean the beating and mixing materials.
7.The slurry pump adopts independent frequency conversion control to strictly control the material flow. Prevent excessive
circulation of excess materials and ensure product quality.
8. The heating wheel is made of high-temperature, high-frequency casting material to ensure that it will not be deformed during
use, and the equipment has higher precision and operational stability.
9.The scraper is made of Cr 12, and the surface is smoother and more wear-resistant after high temperature forging. The scraper
is close to the surface of the mold to separate the crust and scrape off the excess residue at the same time.
10.The main shaft is welded with seamless tube and stainless steel seamless tube. Fine turning by CNC machine tool to ensure
assembly coaxiality. Prevent the heating wheel from jumping.
