Home > Products > snack production line > Shanghai Genyond Ball Mill Chocolate Ball Mill Machine Chocolate Ball Mill 150L
Shanghai Genyond Ball Mill Chocolate Ball Mill Machine Chocolate Ball Mill 150L
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Genyond Refining Ball Mill Machine for Chocolate Chocolate Stirred Ball Mill
-
GY Chocolate Ball Mill Machine 500 Liter Ball Mill for Chocolate Spread
-
GY Chocolate Ball Mill Grinding Machine Chocolate Ball Mill Laboratory
-
Genyond Small Chocolate Ball Mill Machine Chocolate Conching Grinding Refining Machine
-
Shanghai Genyond Chocolate Grinding Machine Chocolate Melanger Chocolate Grinding Machine
-
Chocolate Melanger Chocolate Grinding Machine From Shanghai Genyond
Product Description
Product Description
Products Description:

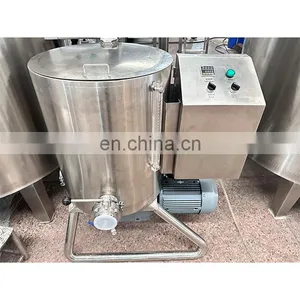

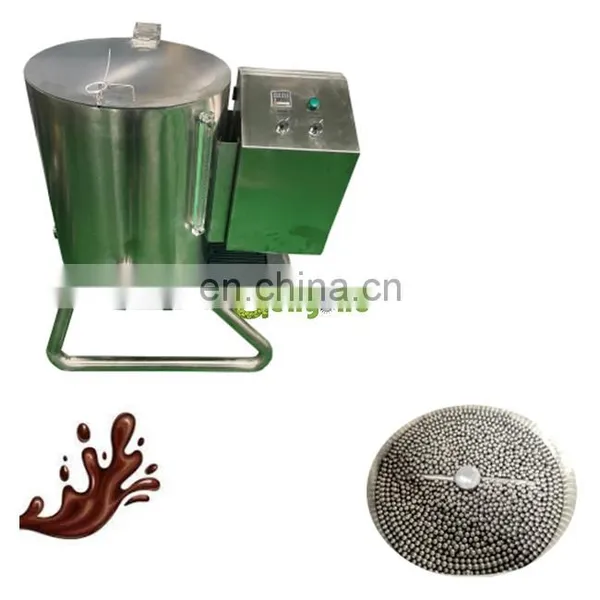

Vertical chocolate ball mill machine can be used to grind various food slurries such as chocolate, peanut butter, tahini.

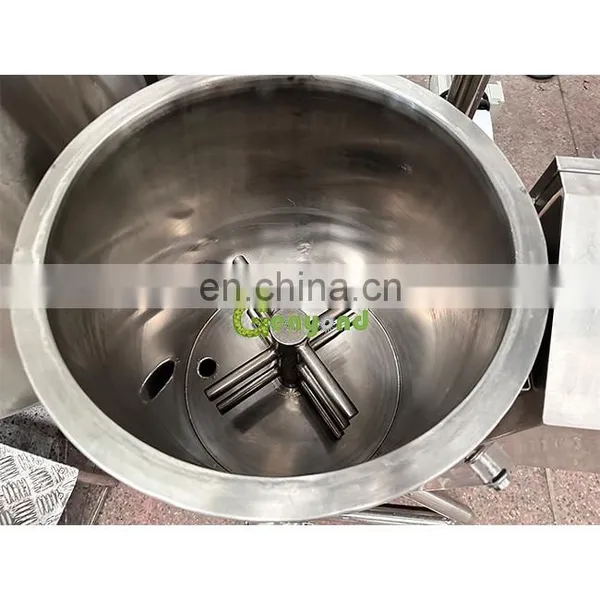

The body is made of all stainless steel 304, the inner bottom of the cylinder has a thickness of 12mm, and the upper

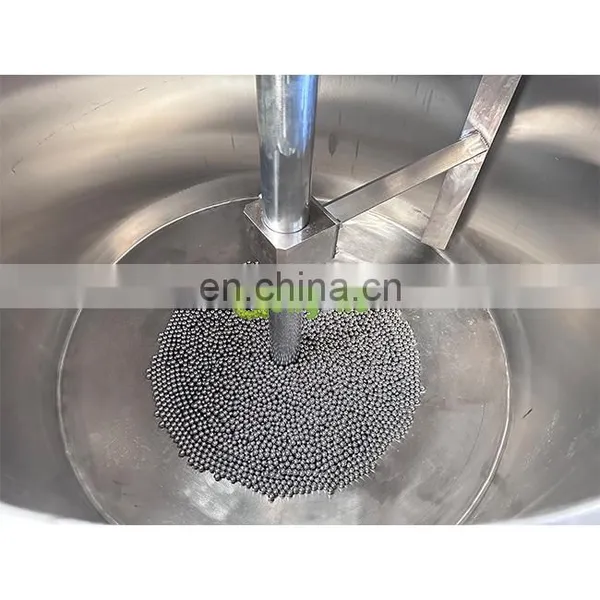

part of the cylinder has a thickness of 4mm, and the outer thickness is 4mm. The grinding adopts imported steel balls
with a diameter of 12mm, which is not easy to rust.
The body of ball mill machine has a water inlet and a water outlet, which can reduce the heat generated during the
grinding of steel balls by connecting the circulating water. Through these measures, we can maintain the consistency
of product taste.
The body is made of all stainless steel 304, the inner bottom of the cylinder has a thickness of 12mm, and the upper
part of the cylinder has a thickness of 4mm, and the outer thickness is 4mm. The grinding adopts imported steel balls
with a diameter of 12mm, which is not easy to rust.
The body of ball mill machine has a water inlet and a water outlet, which can reduce the heat generated during the
grinding of steel balls by connecting the circulating water. Through these measures, we can maintain the consistency
of product taste.
Features:
1. Space saving, low energy consumption, low noise, easy to use.
2. Easy to clean, greatly improving production efficiency and product quality.

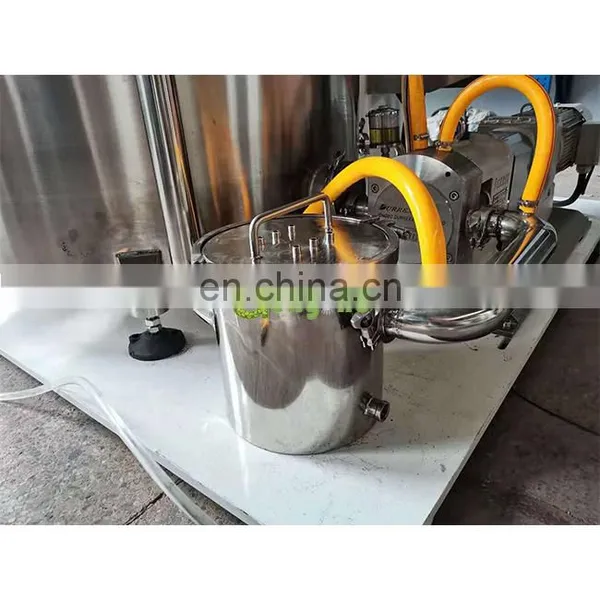

3. Use Durrex pumps to ensure stable and leak-free delivery of the chocolate slurry.
4. The heat preservation effect is good, and the sanitation level is high.
5. The vertical ball mill machine feeds from the top, discharge from the bottom, and the cap can be opened. Easy maintenance.
2. Easy to clean, greatly improving production efficiency and product quality.
3. Use Durrex pumps to ensure stable and leak-free delivery of the chocolate slurry.
4. The heat preservation effect is good, and the sanitation level is high.
5. The vertical ball mill machine feeds from the top, discharge from the bottom, and the cap can be opened. Easy maintenance.
Details Images
Parameter
Specification
item | value |
Condition | New |
Applicable Industries | Food & Beverage Factory, Food & Beverage Shops, chocolate food factory, chocolate food factory |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | Engine, Motor, Gear, Pump |
Brand Name | Genyond |
Place of Origin | China |
Voltage | 220V |
Power | 10Kw |
Dimension(L*W*H) | 1000*1100*1900mm |
Weight | 1200KG |
Warranty | 1 Year |
Application fields | Snack food factory, Frozen food Factory, Beverage Factory, chocolate food factory |
Machinery Function | Milling time: 3-4H |
Raw material | Milk, Chocolate |
Output product name | Chocolate |
Key Selling Points | Long Service Life |
Product name | Vertical chocolate ball mill machine |
Capacity | 50L 150L 300L 500L 1000L |
Milling time | 3~4hours |
Power | 10kw |
Voltage | 220V |
Diameter of grinding balls | 12mm |
Weight of grinding balls | 200kg |
Output fineness | 18-25um |
Dimension | 1000*1100*1900mm |
Weight | 1200kg |
