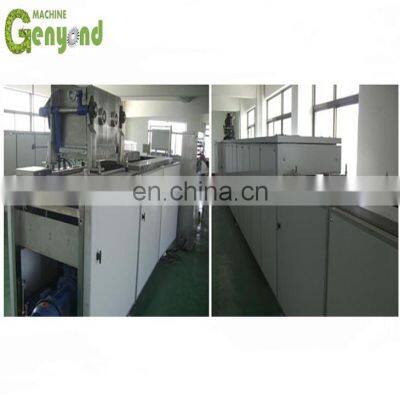

Factory Automatic Chocolate Conch Grinding Tempering Depositing Molding Forming Making Machine Chocolate Equipment Product Plant photo-1
Factory Automatic Chocolate Conch Grinding Tempering Depositing Molding Forming Making Machine Chocolate Equipment Product Plant photo-2
Factory Automatic Chocolate Conch Grinding Tempering Depositing Molding Forming Making Machine Chocolate Equipment Product Plant photo-3
Factory Automatic Chocolate Conch Grinding Tempering Depositing Molding Forming Making Machine Chocolate Equipment Product Plant photo-4
Factory Automatic Chocolate Conch Grinding Tempering Depositing Molding Forming Making Machine Chocolate Equipment Product Plant photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2013
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Factory automatic Chocolate conch grinding tempering depositing molding forming making machine chocolate equipment product plant

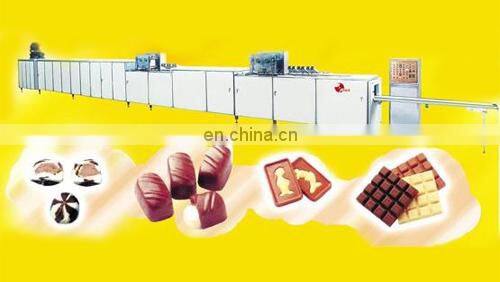

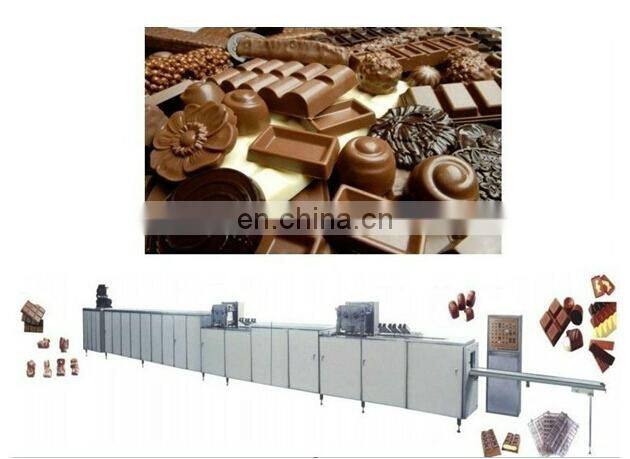

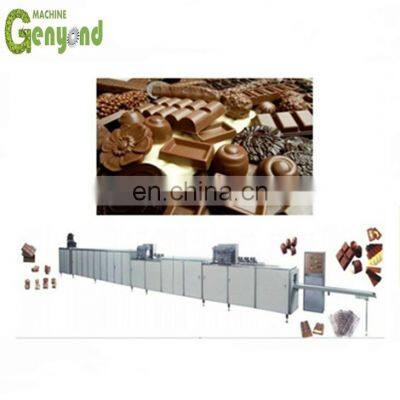

The chocolate deposite forming machine is for chocolate deposit forming. The whole process is fully automatic including
depositing, mould plate vibrating, cooling, demoulding, conveying and plate heating. You can choose one head semi-automatic, one head, two heads or three heads moulding line for different products. The line is suitable for pure chocolate, center filled chocolate two colors chocolate, four colors chocolate, amber or agate chocolate, etc.
Factory automatic Chocolate conch grinding tempering depositing molding forming making machine chocolate equipment product plantFactory automatic Chocolate conch grinding tempering depositing molding forming making machine chocolate equipment product plant

The main equipment of Chocolate production line

1)chocolate conche refiner → capacity from 40L to 3000L
2)chocolate ball mill → continuous friction between steel balls. capacity 250kg/h

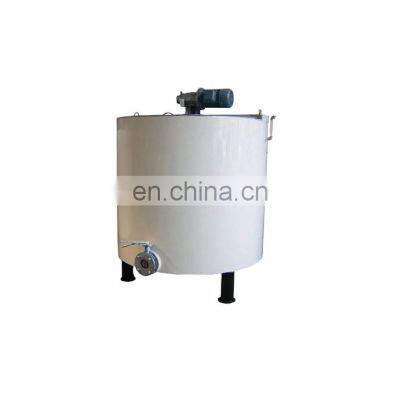

3)chocolate storage tank → capacity from 100L to 5000L
4)automatic and semi-automatic chocolate depositing machine → with one depositor head, two depositor heads, and three depositor
heads. can make pure chocolate, center filling chocolate, compound chocolate, nuts mixed chocolate, double color chocolate
5)cooling tunnel → cooling chocolate and other confectionery
6)sugar grinding machine → capacity 250kg/h
7)chocolate fat melting tank → capacity from 100L to 5000L
8)chocolate tempering machine → continuous tempering capacity 250kg/h and 500kg/h.
9)chocolate coating pan → coat chocolate on nuts. coat dragee on chocolate.

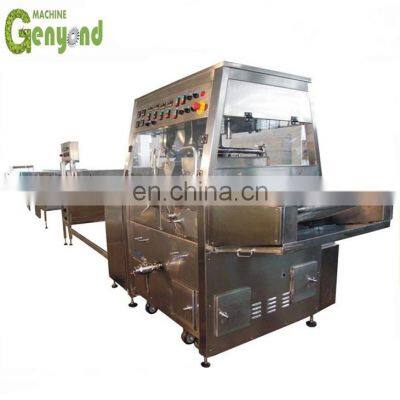

10)chocolate coating machine → coat chocolate on confectionery(wafer,candy,cake...)
11)chocolate chips depositing machine → can make chocolat chips with different size and weight
12)chocolate bean production line → can make chocolate bean with different shape and size (ball,egg,heart,star,triangel...)
13)chocolate pump, pipe, elbow, tee and valve etc. → with double warm water jacketand so on .....

Model
GY-100
GY-300
Capacity
0.8-1T/8HR
2-2.5T/8HR
Total Electric Power:
21KW
30KW
Working Condition: Temperature:
20-25°C
20-25°C
Chocolate weight:
Pure chocolate : 2.5-512g
Centre filled chocolate:15-40g
Total Machine Weight:
5250kg
6950kgs
Total Machine Size:
16.7*1.12*2.5m
19.85*1.21*3.5m
Mould Size:
280*200*30 and 300*225*30mm
280*200*30 and 300*225*30mm
Factory automatic Chocolate conch grinding tempering depositing molding forming making machine chocolate equipment product plantFactory automatic Chocolate conch grinding tempering depositing molding forming making machine chocolate equipment product plant
