factory potato chips frozen french fries making machine production line plants

Name: factory potato chips frozen french fries making machine production line plants
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

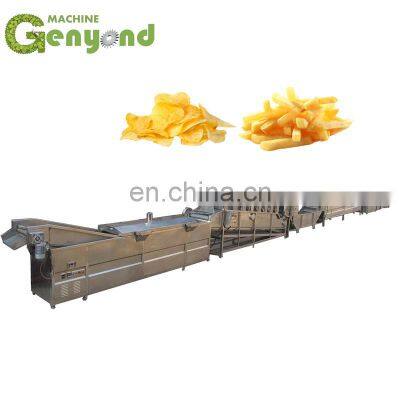

This set of production line is a new type of frozen french fries Making Equipment developed by our company. This
production line is made of high quality 304 Stainless Steel. PLC electrical control, safe and efficient.The production line adopts advanced technology, the output is high, and the ex-factory price is directly sold. This is the best choice for businesses and the most ideal device.

1.Process capacity (finished capacity 100kg/h to 2000kg/h) and work flow can be customized.
2.All equipment are made of SUS304, electrical apparatus element are Schneider brand or CHINT brand.
3. Heating method: Electric heating, Gas heating or Diesel heating (equipped with RIELLO or BALTUR burner), etc.
4. The size of French fries and the thickness of potato chips are adjustable. french fry production line
5. For French fries line, we have special equipment to remove the unqualified fries. french fry production line
6. With special designed fryer, quick heating and energy saving, enabled good performance. french fry production line

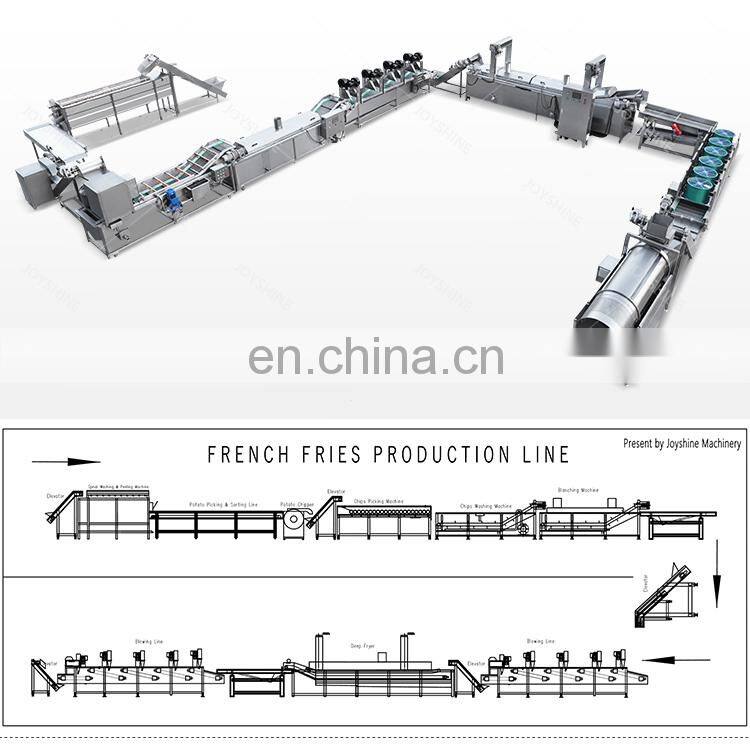

Processing flow

Product Description

Specification

No.	Machine Name	Function
1	PVC Elevator	For elevating and conveying fresh potatoes into the next washing peeling machine

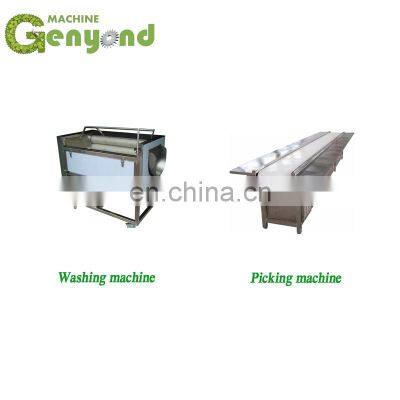

2	Potato Washing and Peeling Machine	Thoroughly washing and peeling the potatoes
3	Sorting Conveyor	For manually disposing the uncleaned places and selecting the defective potatoes
4	Fries Cutting Machine	Cutting the potatoes into fries, sizes adjustable from 77 to 1212mm
5	Water Tank Elevator	water as buffer to prevent fries breakage, and simply removing starch, meanwhile elevating fries into next step
6	Fries Sorting Machine	Automatically picking up the small pieces fries
7	Bubble Washing Machine	Through high pressure waterflow and water bubbles to impact and scrub the fries to wash off the starch
8	Blanching Machine	Through 60-95 degree hot water blanching to inhibit the activity of the enzyme and maintains the original vivid color of the fries
9	Vibration Dewatering Machine	Through vibration to remove the surface water and also to transport the fries uniformly to the next machine
10	Air Drying Machine	Through high pressure wind blowing for pre-cooling and removing the excess water in short time, effectively prevent the fried oil jumped phenomenon
11	Elevating Conveyor	For elevating and conveying the fries into next fryer machine
12	Continuous Frying Machine	For quick frying the fries around 40 seconds in 180°oil to avoid the adhesion and extend the shelf life
13	Vibration Deoiling Machine	Through vibration to achieve deoiling purpose, and also to convey the fries uniformly to next machine
14	Pre-cooling Machine	Through high pressure wind blowing for pre-cooling and deoiling the fries
15	Freezing Machine	Through mechanical vibration and wind pressure, the fluidized quick freezer floats products on stainless steel mesh belt, frozen products and prevent adhesion, achieve IQF
16	Automatic Packing Machine	For packing the finished frozen french fries

GENYOND MACHINERY INDUSTRIAL GROUP

It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.

Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly. A satisfying project will be given; A long-term cooperation will come.
