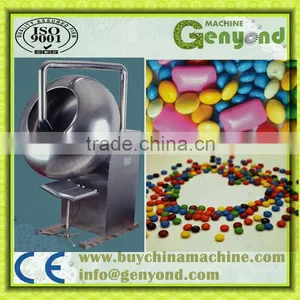

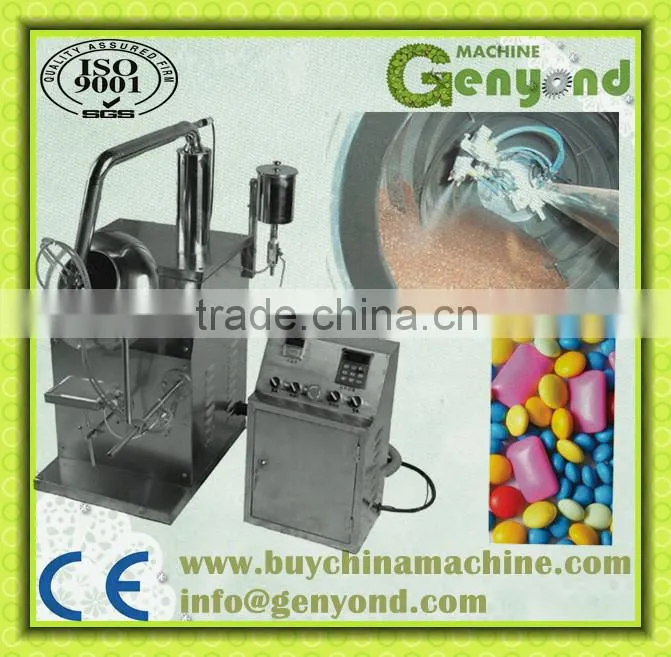

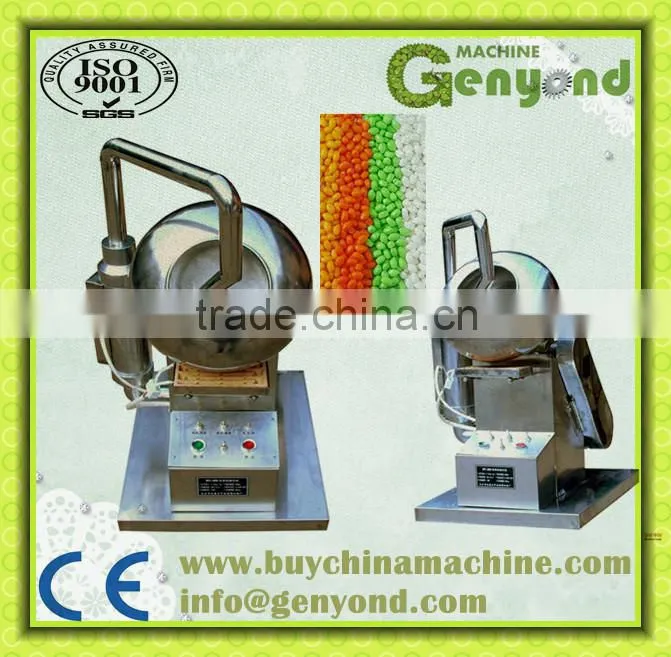

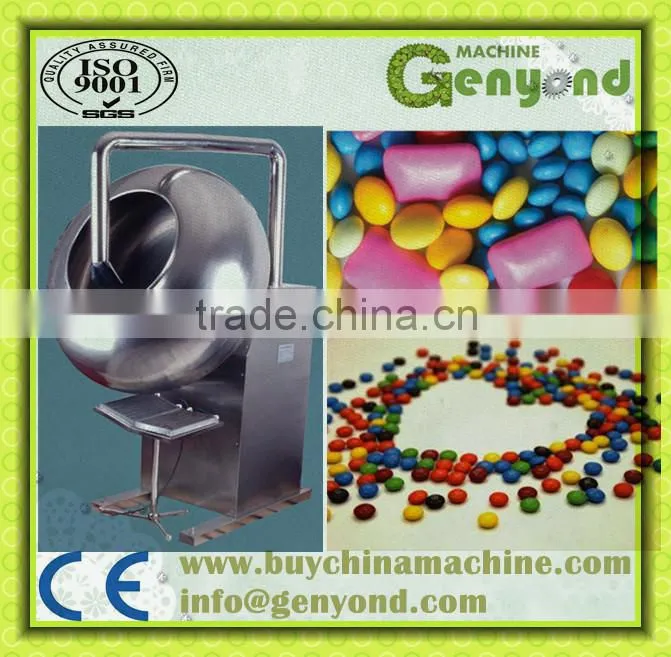

GYJL chocolate beans making machine bean to bar chocolate machine
- T/T Credit Card
You May Like
-
chocolate bean enrobing machine in shanghai
-
chocolate melting tank for chocolate processing line
-
Italy spaghetti noodles machine / italy pasta noodles machine / macaroni production line
-
chewing gum manufacturer/chewing gum processing machine/chewing gum manufacturing in turkey
-
Bubble gum processing machine/chewing gum manufacturing machine
-
full automatic chewing gum making machine
Product Description
this week will give best price for customer who need our machines
Features:
1.The character of automatic chocolate coating machine is, the tilting angle of the coating pot is 30degree, under the coating pot can put an electric or gas oven, and other heating equipment.
2.There is an electric blower equiped with the machine, the air tube put into the pot can blow hot or cold air for different processing stage. The heating degree is adjustable.
3.It can be used for sugar coating of different shapes food such as diamond, square,etc. as well as chocolate coating of peanuts.
Working principle:

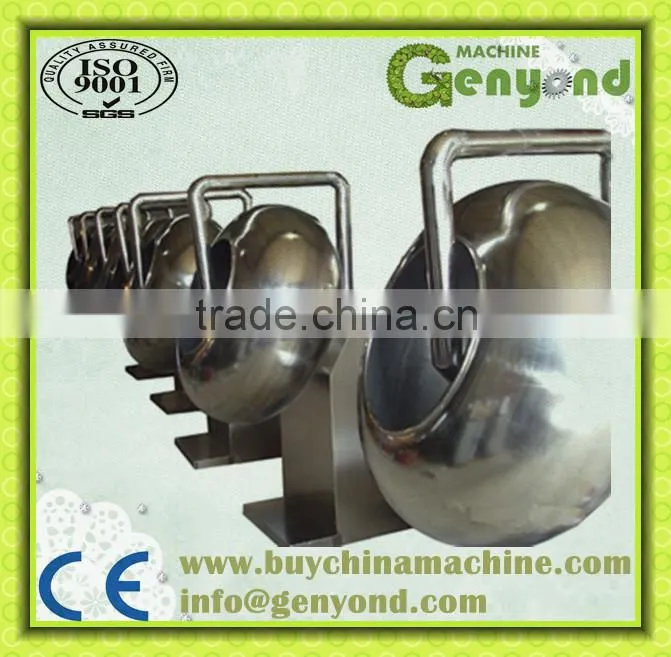

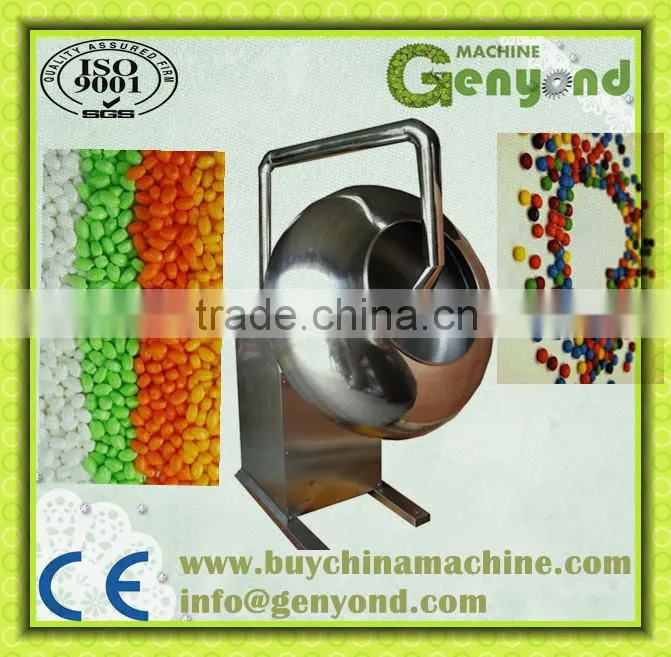

The equipment is composed by rolling pot, machine frame, transmitting system, and heating system. The shape of the machine is more suitable for coating of non-circular material or high viscocity material.
The cooperation of motor and reducer will reduce the processing speed to easy operation state. The heating system is composed by direct heating and hot air heating, you can use them separately according to different requirement.
Main application:
This machine is widely applied in pharmacy.It is mainly used for the coating,polishing,making-granule of medicanes,as well as for the shaping and making of round or granulated materials in the foodstuff,chemical and industries etc.
click here send a price inquiry
Structural features:
This coating boiler is made of stainless steel.It offers advantages such steady drive,reliable performance,easy to clean and maintain, and high heat neating.It is very easy to adjust the angle of coating boiler according to the requirements of production process.It is an ideal equipment of pharmacy,foodstuff,chemical industry and so on.Besides,stepless speed,wholly-packing encloser,spray pump,and hot air dedusting systme.can be added on the basis of client’s demand.
Main technical parameters:
|
Model |
GYJ-1000 |
GYJ-800 |
GYJ-500` |
|
Coating boiler |
Φ1000mm |
Φ800mm |
Φ500mm |
|
Productivity |
50-70kg/once |
40-50kg/once |
8-15kg/once |
|
Main motor power |
1.5kw |
1.5kw |
0.55kw |
|
Speed of coating boiler |
35r/min |
35r/min |
18-44r/min |
|
Electric-heat power |
2kw |
2kw |
|
|
Adjustable angle range |
5-40 centigrade |
5-40 centigrade |
5-40 centigrade |
|
Blower power |
0.25kw |
0.25kw |
0.15kw |
|
Air delivery 2.2 square meter/min |
2.2 square meter/min |
0.8 square meter/min |
0.8 square meter/min |
|
Temperature of hot air |
50-60degrees centigrade |
50-60 degrees centigrade |
50-60 degrees centigrade |
|
Total weight |
390kg |
310kg |
200kg |
|
Exteranal dimensionl |
1000*1100*1720mm |
800*1100*1620mm |
550*800*1000mm |
related Chocolate equipment list:
Sugar powder machine
Pan to melt
Fine grinding machine
Ball mill
The insulation cylinder
Tempering machine
Casting machine
Drops of water machine
Polishing machine
Coated dryer
Coating polishing machine
Chocolate bean molding machine
Cereal/corn chocolate molding machine
The decoration machine
Grain spreader
Packaging machine
Send slurry pump
Cooling tunnel
Spiral feeding conveyor
Chocolate spray head
Feeder system
and
lollipop candy cooling tunnel/Automatic Wafer Cooling Tunnel/Factory Directly Supply CoolingTunnel for Hard Candy Machine/Large Capacity Chocolate Enrober Temper Enrober Enrobing Cooling/Chocolate making line with coolingtunnels/Automatic Mini chocolate coating machine / chocolate covering /Semi-automatic chocolatescooling tunnel with CE Certificate /Automatic Biscuit ChocolateCoating Machine with Cooling/Gold Supplier Chocolate MachineChocolate Enrobing Line Cooling/ Chocolate Cooler ChocolateCooling Tunnel/high quality chocolate coolingtunnel with advanced technology/30kg biscuit chocolate coating machine with chocolate enrober/Professional Factory Full Automatic Chocolate Production ...
and

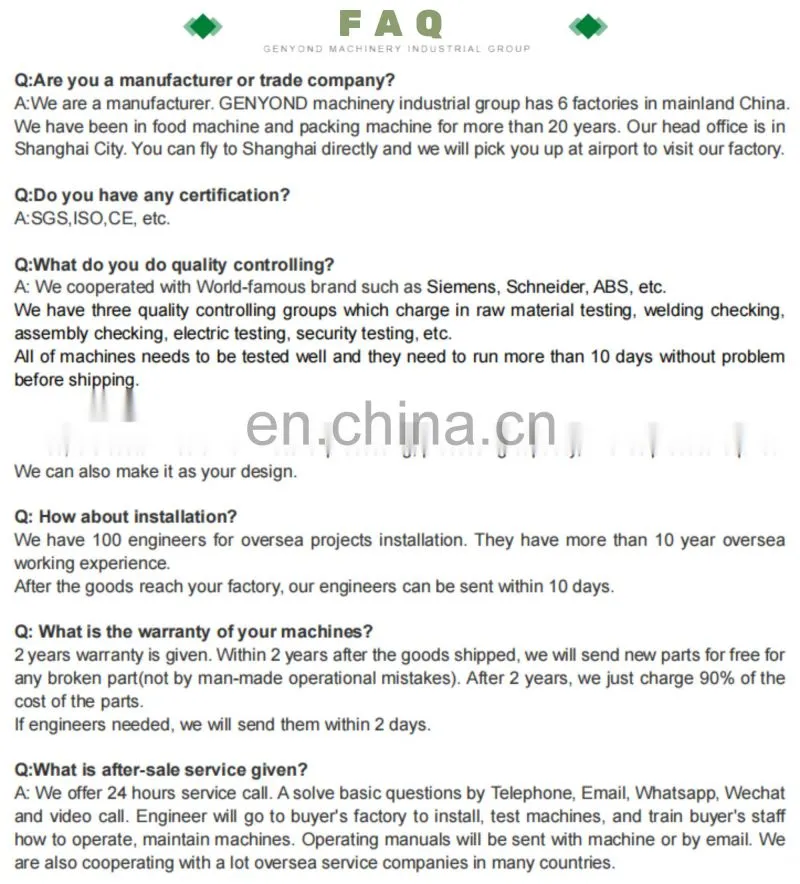

Training and Use 1.We will supply with the machine operation manual in English version for installing and operation. 2.We will make training video for client’s reference. 3.Customer can come to our factory for free training. Warranty and After sales service 1.Our warranty is within 12 months from the date when client receive the material. 2.We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time. 3.When some problems can’t be solved by customers, our engineer can go to door to support.
