Small Scale Corn Flakes Production Plant

Small Scale Corn Flakes Production Plant photo-1

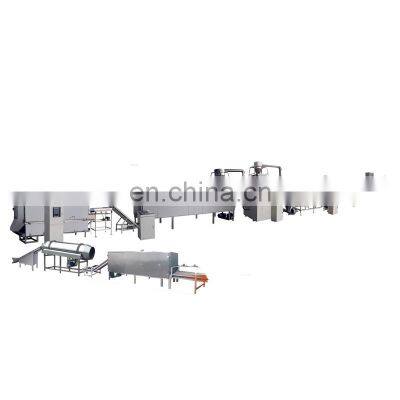

Small Scale Corn Flakes Production Plant photo-2

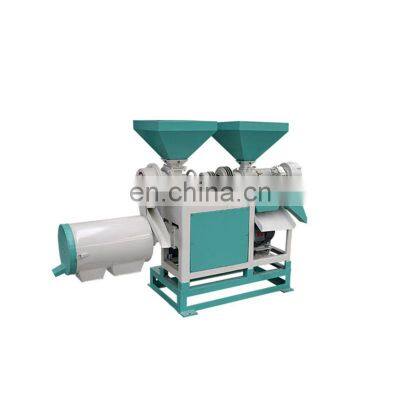

Small Scale Corn Flakes Production Plant photo-3

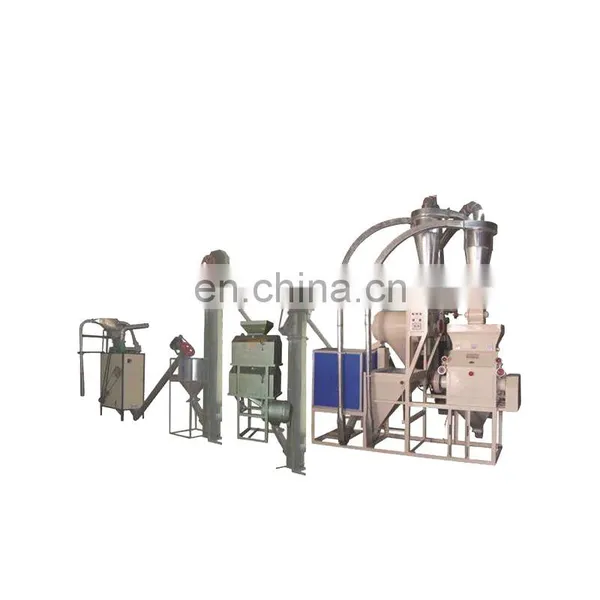

Small Scale Corn Flakes Production Plant photo-4
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2013
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Producion Introduction



Breakfast cereal corn flakes is a brittle food with good rehydration, outside the red is not bad, taste lubricants,grain flavor is fragrant.Corn flakes mainly corn flour as the main raw material,added sugar, vitamins,mixed raw minerals, add a sufficient amount of water after kneading, aging, forming, baking and tableting in order to manufacture a sheet flavoring.





Machine Flow Chart



Mixing system---Extrusion system----Cooling system—Flaking system--Drying system—Toasted system---Sugar Spraying system ---Drying system---- Packing system



Machine Features



1.Mixer : Make the corn residue or corn flour added to a nutritional additive and mixing a proportion of water uniformly.

2.Screw conveyor : Marinated raw material fed to the extruder feed hopper.

3.Double screw extruder: The material in the feed hopper into the extrusion system, to produce small  spherical particles.

4.Shaker:Dispersed particles, to avoid overlap pressed together into a tableting machine.

5.Air conveyor:Transported the particles into the tableting machine.

6. Flaking machine:Flaking the corn ball to raw corn flakes.

7.Air conveyor:Transfer the corn flakes to the baking oven.

8.Mutil-layer oven: Oven  mostly is toaster,temperature between 0-200 degrees self-regulation through the control cabinet,internal stainless steel double mesh bag,baking time may be adjusted according to the speed,remove the water.



Main Technica Patameters

ModelGY171-AGY171-BGY171-C
Installed power130kw150kw180kw
Real power90kw110kw140kw
Capacity100-120kg/h200-240kg/h300-500kg/h
Dimension38000*1200*2200mm41000*1500*2200mm43000*3500*4300mm



More Pictures

small scale corn flakes production plant



small scale corn flakes production plant



small scale corn flakes production plant



small scale corn flakes production plant

small scale corn flakes production plantsmall scale corn flakes production plant
