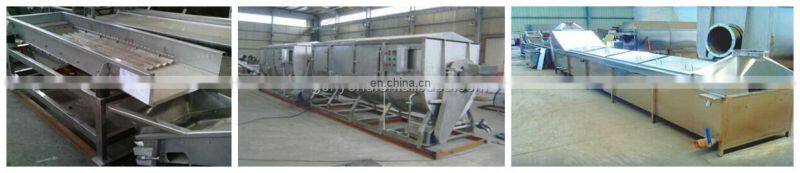

Quick Freezing Vegetable Tpye Tunnel Freezer Machines Frozen Vegetable And Fruit Production Line
- T/T Credit Card
You May Like
-
IQF Quick Freezing Sea Cucumber / Seafood Frozen Machinery / Blast Freezer Tunnel Machine
-
PU Sandwich Panel for Walk in Freezer to Store Frozen Fish
-
Wholesale Frozen Yogurt Vending Machine
-
China Frozen Vegetable Production Line/Green Peas Quick Freezing Processing Machine
-
Pita Bread Production Line/lebanese Pita Bread Machines/frozen Pita Bread
-
Hot Sale Equipment Frozen Fruit Machine
Product Description
Specifications
1. complete process line
2. stainless steel construction
3. stable operation
Main part of Vegetable & fruits processing line for quick freezing:
High pressure cleaner, sorting conveyor, bubble cleaner, spiral blancher, normal temperature cooler,
ice water per-cooler and vibration draining machine so as to realize automatic pre-treatment processes such as cleaning, sorting, blanching , cooling, pre-cooling and filtering of vegetables.
Application:
It is suitable for processing garden bean, asparagus, broccoli, taro, string bean, young soy bean, sweet corn, strawberry, cherry, apple dice, onion, tomato, mushroom, pumpkin dice, spinach, bean sprout and other fruit and vegetable products.
Advantage:
Designed through absorbing main advantages of same products at home and abroad, the production line can adjust blanching time and temperature of vegetables as well as conveying speed so as to achieve an optimal treatment effect of various vegetables.
Featured by stable operation, reliable performance, economic energy consumption,
small land area, simple use and convenient maintenance the equipment can be both operated singly and used in combination with others.
Model Parameters | GLZ-0.5 | GLZ-1.0 | GLZ-1.5 | GLZ-2.0 | GLZ-3.0 | GLZ-4.0 | GLZ-5.0 |
Output(kg/h) | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 |
Overall dimensions(m) | 7.1×3.9×3.7 | 9.1×4.1×3.7 | 11.6×4.1×3.7 | 13.6×4.1×3.7 | 15.6×4.2×3.7 | 16.6×4.5×3.7 | 17.6×4.7×3.7 |
Input material temperature(°C) | +15 | ||||||
Output material temperature(°C) | -18 | ||||||
Freezing temperature(°C) | -36±2 | ||||||
Freezing time(min) | 5~50(Continually adjustable) | ||||||
Coolant | R717/R22 | ||||||
