high quality bee honey production line
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
stainless steel bee honey processing equipment
-
fruit juice concentration machine juice concentration machine jam evaporator Double effect evaporator
-
Paste vacuum concentrator Pulp vacuum concentration machine Rising-film evaporation machine Single effect concentration machine
-
Mini Sugar Manufacturing Plant from sugar cane Sugar production line Mini Sugarcane Factory
-
mozzarella cheese making machine
-
Turnkey project Beer processing line
Product Description
Product Description
The honey concentrator uses the principle of lowering the boiling point of honey in a high vacuum state to quickly evaporate the water in the honey and increase the concentration of the honey. The equipment also has the functions of melting and crystallization, filtration and sterilization, and concentration, so that the honey can meet the national standards and can be stored for a long time.

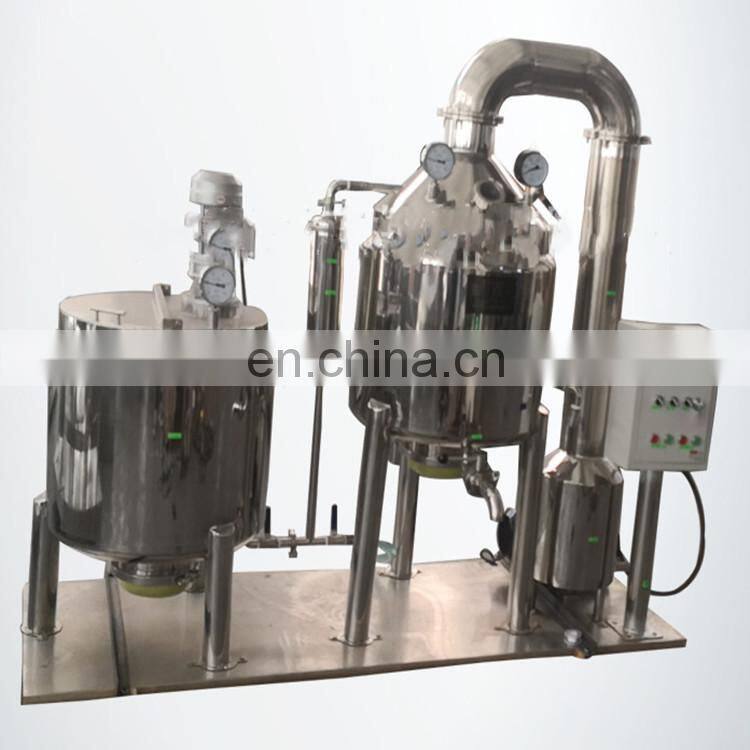

The equipment consists of preheating tank, filter, concentration tank, condenser, vacuum pump, etc. It adopts automatic control electric heating method for heating, which is hygienic and convenient. The equipment materials are all made of high-quality 304 stainless steel, and the tank body and pipeline are mirror-polished inside and outside, which meets the requirements of QS certification. The equipment is simple to operate, efficient, and effective. It is suitable for small and medium-sized enterprises, especially for beekeepers to process honey.
Specification
Model | B-5 | B-10 | B-20 | B-40 | |||
Capacity | 5t/shift | 15t/shift | 20t/shift | 40t/shift | |||
Material | SUS304 | ||||||
Voltage | 380V 50HZ | ||||||
Evaporation temp. | ≤50℃ | ||||||
Vacuum degree | ≥0.092 | ||||||
Steam pressure | 0.1 - 0.4Mpa | ||||||
Dimension | To be customized | ||||||
Power | 7.5KW | 7.5KW | 7.5KW | 11KW | |||
Weight | 600kg | 780kg | 1550kg | 2180kg | |||
Process flow:
First, load the bee honey into pre-heating tank for temperature increasing ≤50℃ for de-crystallization and pasteurization.
Second, vacuum suction the honey to the filter for filtration and separate any impurities.
Third, vacuum suction the honey to evaporator for concentration.

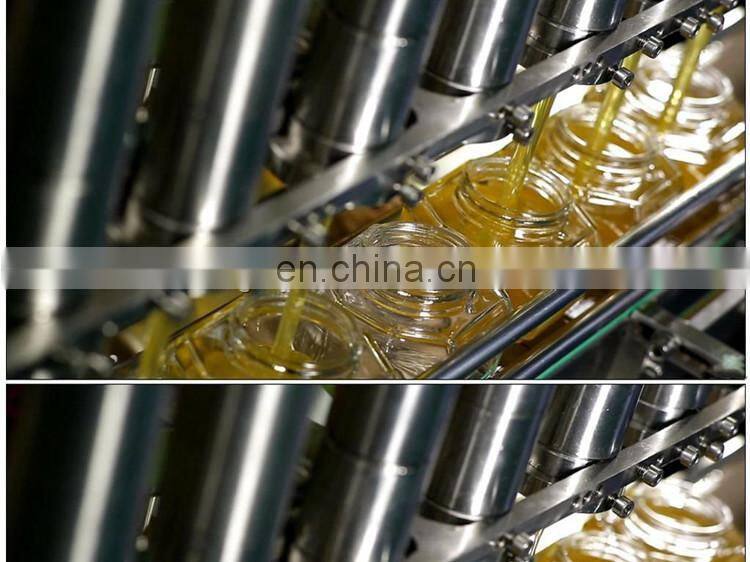

Final product store in balance tank and ready for filling and packing.
Equipment features:
1. Fully made of high-qualitySUS304 except for the motors, electrical appliances, and soft connections.
2. With reasonable design, it takes lessarea and has a compact structure, which is easy to setup and operate, also with
convenient maintenance and long service life.
3. With high vacuum value, low temperature and high speed evaporation.
This machine is suitable for continuous process with heating by electric or steam.
First, load the bee honey into pre-heating tank for temperature increasing ≤50℃ for de-crystallization and pasteurization.
Second, vacuum suction the honey to the filter for filtration and separate any impurities.
Third, vacuum suction the honey to evaporator for concentration.
Final product store in balance tank and ready for filling and packing.
Equipment features:
1. Fully made of high-qualitySUS304 except for the motors, electrical appliances, and soft connections.
2. With reasonable design, it takes lessarea and has a compact structure, which is easy to setup and operate, also with
convenient maintenance and long service life.
3. With high vacuum value, low temperature and high speed evaporation.
This machine is suitable for continuous process with heating by electric or steam.
