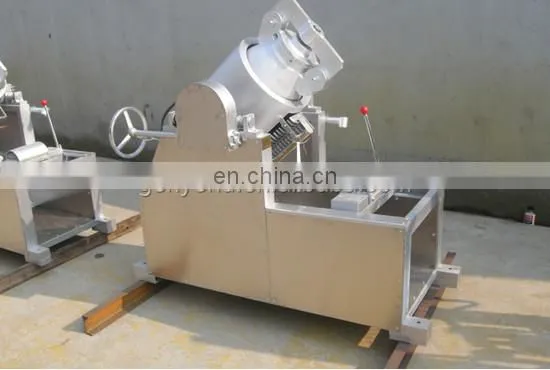

50kg per hour puffed food makers/Pressure Cooker puffing Machine
Snack Food Popper for millet wheat highland barely buckwheat corn sorghum sweet barley straw and beams etc.
Hand Rice popper Rice bulking machine ,Pressure Cooker puffing Machine/makers ,Corn popcorn makers /machine
Large air flow puffing machine is one crop puffing equipment, expansion tanks, heating device, rotating device, safety device, vibration damping device, frame, the base of several parts.Is on the basis of the traditional fire expansion tank, technical renovation.Compared with traditional small air flow puffing cans, 4 to 6 times higher output, safety coefficient is also greatly improved, at the same time reduce the operator labor intensity, reduce the energy consumption.Has been found that the rice, millet, wheat, barley, buckwheat, corn, sorghum, yi, buckwheat, beans and so on as long as the starchy material can be expanded.
Working principle of the air flow puffing: certain materials into with cover sealing in the cast steel tanks, use liquefied petroleum gas, gas or coal to heat, and constantly rotating tanks at a certain speed, uniform heat of material, along with the continuous heating, tank temperature rise gradually, reaches above 100 ℃, material surface moisture in the body will escape and vaporization, certain pressure in the tank.When the material moisture content was accused of 5% ~ 8%, the pressure in the tank will reach 0.8 ~ 1.25 Mpa (different material pressure).Has basic cure, material of the tank at this time if the tank lid suddenly opened and released by high temperature and high pressure condition suddenly dropped to atmospheric pressure, the material will be in the position of the water loss by air filled but bigger, its structure changes, raw starch starch (beta) become mature (alpha starch), volume) several times to ten times.A moment of release from material extrusion machine outlet air flow and instantaneous bulging and tear air sharply at the same time, to produce noise, noise of 100 decibels.
By the end of 2012 domestic and foreign food factory nearly 2000 set large air flow puffing machine in use.

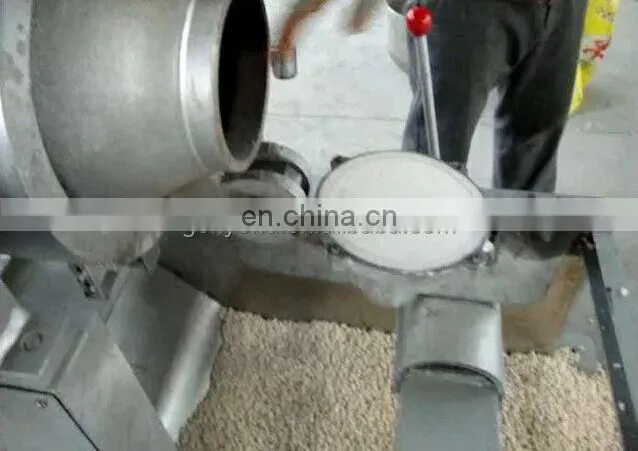

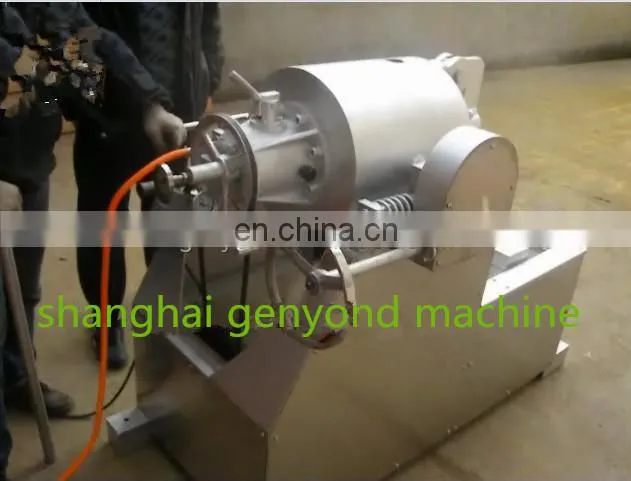

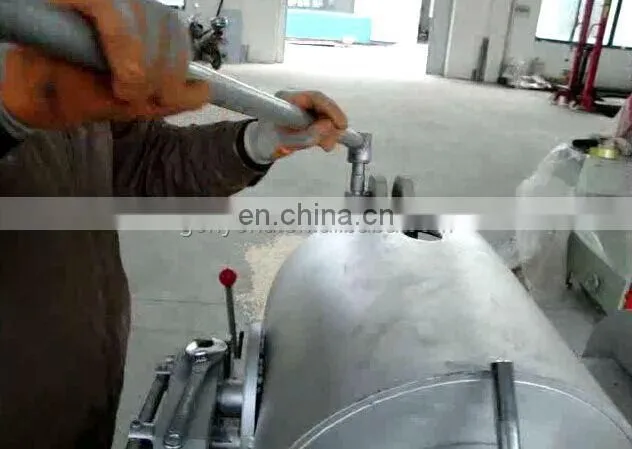

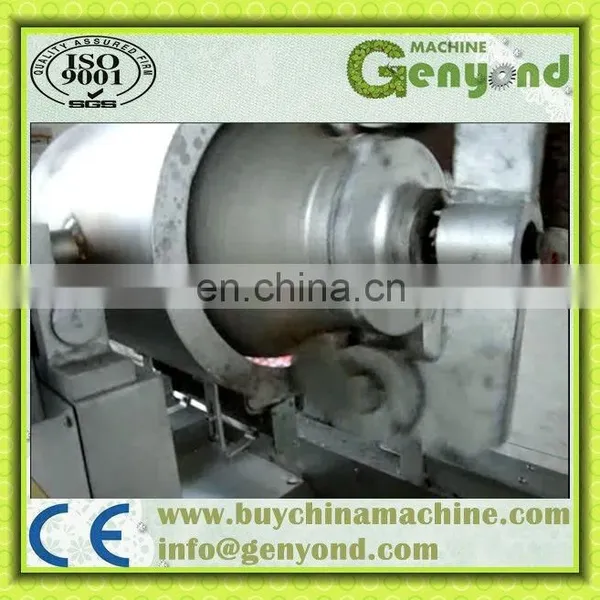

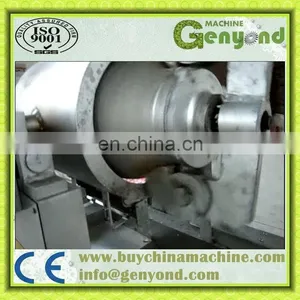

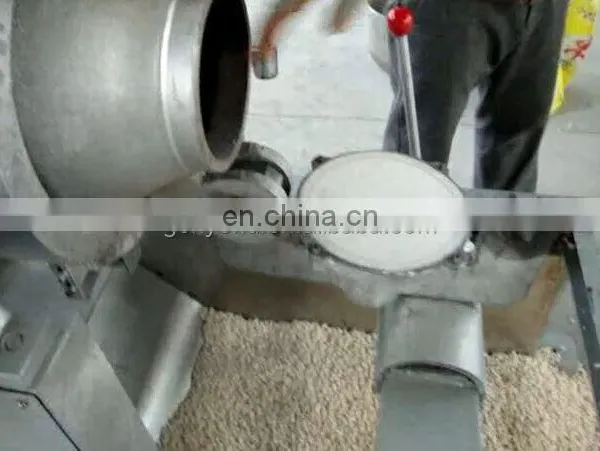

Popper machine are working photo:
Product Specification:
Model NO: |
SMCP-50Q |
L: |
1520mm |
Speed: |
50KG/H |
W: |
1320mm |
Power: |
380AC/50HZ 750W |
H: |
800mm |
Weight: |
430KG |
|
Applied Object: Rice ,millet ,wheat ,highland barely ,buckwheat ,corn ,sorghum ,sweet barley ,straw and beams ,etc.
