Help CenterCold Crush Fresh Tomato Paste /jam/ketchup Production Line for Sale
Related Products
-
Complete Tomato Paste Making Machine With Packing LineNegotiableMOQ: 1 -
Peanut Butter Making Machine/peanut Paste Making Machine/tomato Paste Processing LineNegotiableMOQ: 1
-
Hot Sale Tomato Paste Sachet Making MachineNegotiableMOQ: 1
-
Tomato Paste Making Machine Production LineNegotiableMOQ: 1
-
Factory Price Automatic Tomato Sauce/tomato Paste /pasta Sauce Canning MachineNegotiableMOQ: 1
Best price fresh tomato paste processsing line/prodcution line/plant/equipment/machine/machinery for sale , cold crush fresh tomato paste /jam/ketchup production line for sale , high quality professtional manufacture fresh tomato paste /jam/ketchup processing machines/production line/plant for sale in China, colloid mill for food
Capacity :fresh tomato100-5000kg/hour (output capacity 20-1000kg/hour)
Pls Note: when you inquired our fresh tomato produciton line pls tell us following :
1.your raw material : fresh tomato or conctration tomato paste ?
2.how many budget you will invest ?
3.which kind packing you will use ? how many volume per packing ?
4.how many brix ?
5.........
more details more well ,hope you understand us hard working ! thanks for your coperation!
Fresh tomato paste production line equipment list :
NO. | MACHINE | QTY |
|
A FRESH TOMATO PRE-HANDLING SECTION | |||
A1&A2Fresh fruit receiving pool and hydraulic flume By client prepare . | |||
A3 | Low-level bucket elevator | 1 |
|
A4 | Fruit washing and sorting combiner | 1 |
|
| Working table for sorting | 1 |
|
| Waste fruit discharge conveyor | 1 |
|
| |||
B1 | Fresh tomato receiving tank | 1 |
|
| Feeding pump | 1 |
|
B2 | Tomato crushing machine | 1 |
|
B3 | Tomato pulp receiving tank | 1 |
|
B4 | Screw pump | 1 |
|
B5 | Tubular preheater | 1 |
|
B6 | Double-stage refiner | 1 |
|
| Spiral discharge machine | 1 |
|
B7 | Colloid mill | 1 |
|
B8 | Balance tank for raw paste | 1 |
|
B9 | Sanitary pump | 1 |
|
B10 | Electric control system | 1 |
|
| |||
C1 | Double-effect forced circulation evaporator | 1 |
|
C2 | Electric control system | 1 |
|
C3 | Balance tank for raw paste | 1 |
|
| |||
D1 | Mixing tank | 1 |
|
D2 | Tube in tube sterilizer | 1 |
|
D3 | Electric control system | 1 |
|
D4 | Aseptic balance tank | 1 |
|
| |||
E1 | Bag filling machine | 3 |
|
E2 | Bottle filling screw cap machine | 1 |
|
E3 | Label printing machine | 1 |
|
| |||
F CIP SYSTEM AND WATER TREATMENT SYSTEM | |||
G PIPELINES, VALVES, FITTING AND spare parts ACCESSORIES | |||
H INSTALLATION, TRAINING & TEST-RUNNING | |||
Fresh tomato paste production line some main equpments photo:

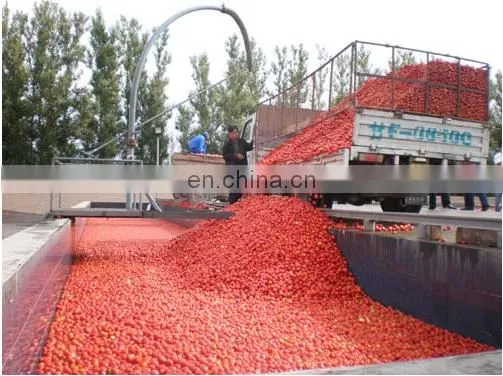

Fresh tomato receving pool Low-level elevator
Tomato washing and sorting
tomato crush tomato pulp receving tank
two-channel beater colloid mill electrical system control

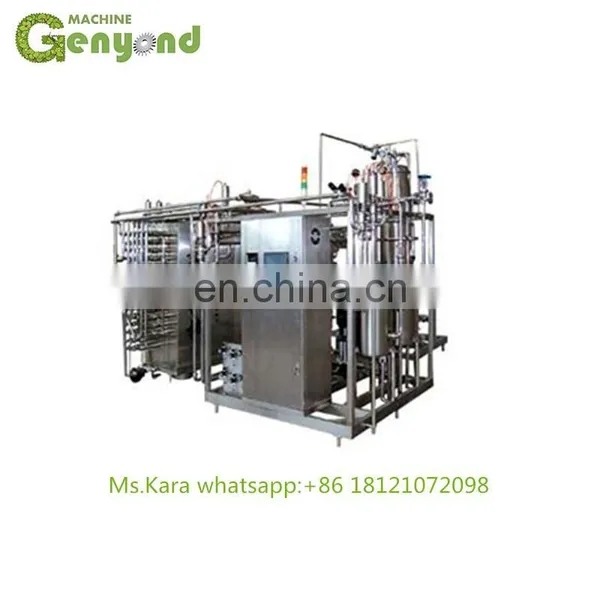

concentration sterilizer

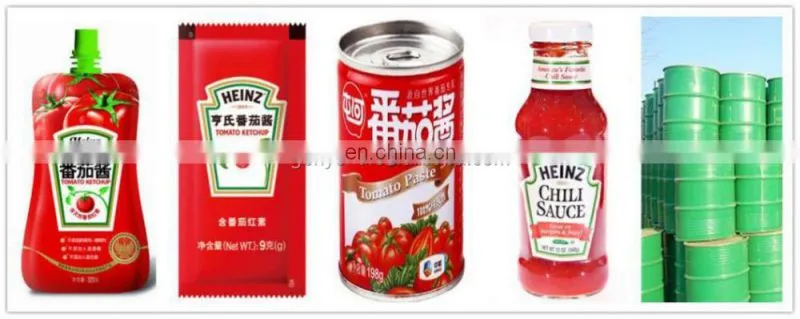

Packing : small bag ,bottle ,tin ,barrel and so on .
Packing according to your choice we equipment different packing machine .
Welcome to order now !
Thanks for your supporting and business !
Contact:
Kara
GENYOND MACHINERY INDUSTRIAL GROUP LIMITED
NO.1328 Hengnan Road Minhang District 200000 Shanghai
Mob/ WhatsApp: +86 18121072098
Skype /Wechat: 18121072098
