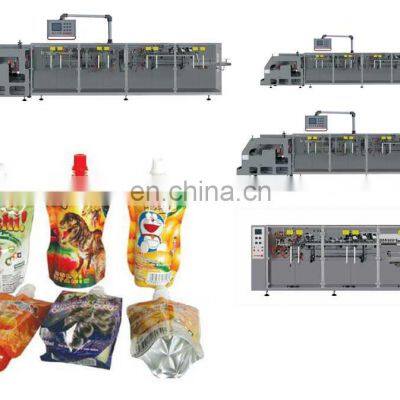

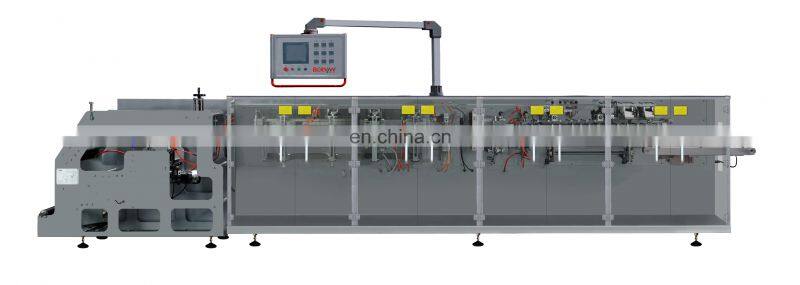

Soya-bean Milk Self-supporting Bag Filling Machine/ Fruit Juice Bag Filling Machine /milk Self-supporting Bag Filling Machine
FEATURES
Multi-application---Separated-type feeding system, can meet many various kinds of materials(powder, liquid or paste etc.)
Multi-shapes bags---After simple adjustment, one machine can meet many different kinds of bags(3-sides seal, 4-sides seal,stand-up pouch(doypack),zipper bag,nozzle bag etc. )
Multi-materials---Particular feeding system, have overcome the shortcomings of general packing machines sole materials, it can meet many kinds of different materials mixtures, and precise proportion(e.g. with oil,water or others etc.)
Operation Stability---Adopting cam for transmission, pure mechanical motions, simple structure.
Easy to maintenance---Simple mechanical structure, easy to maintenance
Low Failure Rate---In compared to Pure Mechanical Packing Machine, no very many control element and test elements, which can avoid electronic errors.
Beautiful Outlook—-Unique,Advanced and Mature technology,finished bags flat, without leakage.
Reducing Loss—-High precise packing, can reduce materials loss
Good Reliability---All of the ELECTRIC ELEMENTS are international famous brand, good quality&reliability
|
Item |
Parameter |
|
|
Packing |
Pouch size range |
60-80mm |
|
Pouch size range |
180-230mm |
|
|
Packing Capacity |
800ml(max) |
|
|
Packing Speed |
60bags/min(max) |
|
|
Specification |
Overall Size |
7800 (L) X1000 (W) X 1500 (H)mm(approx.) |
|
Total Weight |
2000Kg |
|
|
Working Environment |
Environment Temp. |
-10°C—+55°C |
|
Related Humidity |
<85%(No condensation state) |
|
|
Power Supply |
AC380V,50Hz |
|
|
Output Power |
6.5Kw |
|
|
Working Pressure |
0.5MPa |
|
|
Compressed-air Consumption |
0.6m3/min |
|

GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly.
A satisfying project will be given; A long-term cooperation will come.
