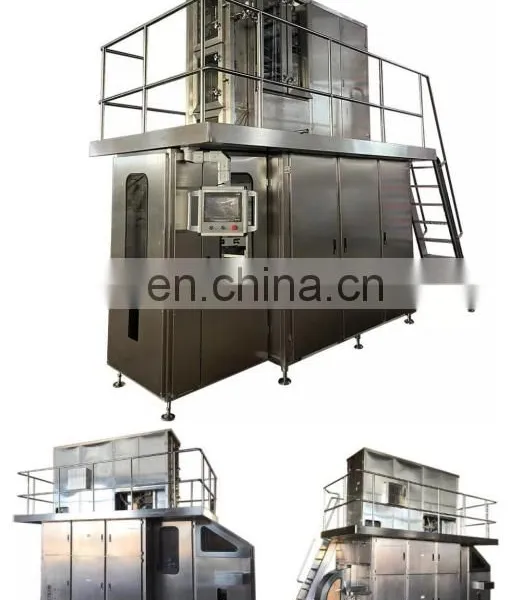

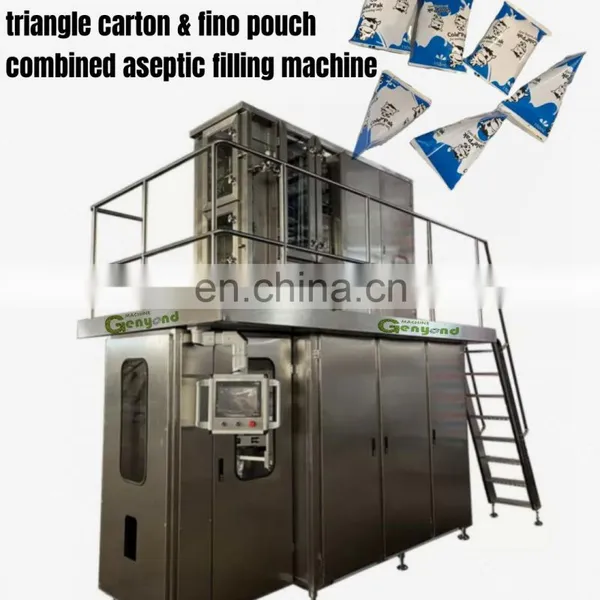

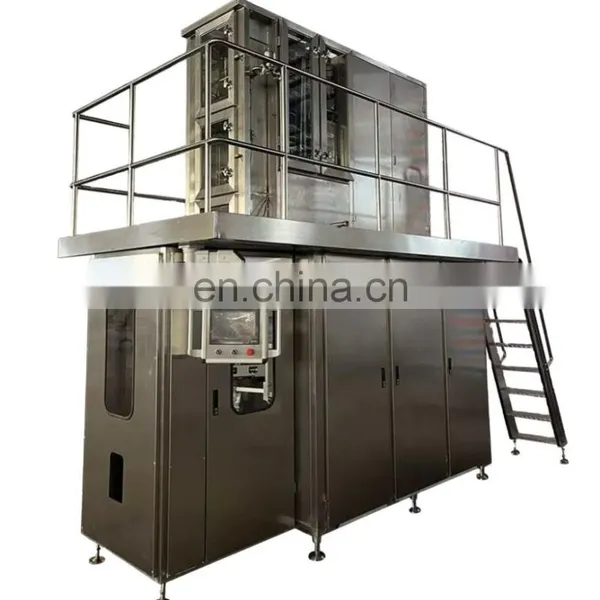

Triangle carton and Fino pouch combined aseptic neutral liquid filling and packing machine for milk, juice

Name: Triangle carton and Fino pouch combined aseptic neutral liquid filling and packing machine for milk, juice
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

This machine is used for filling milk, fruit and vegetable juice plant protein etc. Liquid beverage by Paper aluminum plastic composite packaging carton.
This machine is responsible for sterilizing the carton package and machine inside filling environment is aseptic, so that can make the UHT beverage after filling is aseptic, which can make the beverage shelf life is 6-12 months.

Product Name	Aseptic carton filling machine	Material	SUS304/316L
Brand	Genyond	Power	15-25kw
Application	Juice/ Milk/ beverages..	Dimension	4000x2500x2400mm
Filling range	100-1000ml..	Weight	2000-4000kg
Filling speed	2000-7500BPH	After sale service

1. The machine Automatic Form- Feed –sterilize –filling –shaping –
2. The machine's PLC, photoelectric correction, frequency conversion speed regulation. Pneumatic, solenoid valve, vacuum system, liquid level control, intelligent electronic temperature control adjustment. Automatic fault alarm system. Aseptic room, etc., all adopt German, Japanese and other brands, and the whole machine All are made of stainless steel, with exquisite appearance and easy operation.
3. It adopts mass weighing system control to realize quantitative filling, and the filling is more accurate.
4. Mirror welding technology is used to ensure the smooth and flat welding seam, leaving no sanitary corners.
5. Use programmable controller to realize automatic operation of equipment.
6. Incorporating new technologies of modern optical-mechanical-electrical integration, integrated design, and precision manufacturing. The use of closed-loop control technology to control tension, photoelectric detection, PLC calculation control, touch-type man-machine interface operation, monitoring, radiant heat and high-frequency induction power supply clever application, so that the strip and vertical and horizontal sealing are firmer and more reliable.
7. The main drive is mechanical, and the auxiliary drive is pneumatic. Scientific and reasonable use makes the machine run more freely and stably.
8. Specially equipped with non-stop roll changing device, so that the machine can easily change rolls and docking paper heads without stopping the machine.

Productivity	2000BPH for 500-1000ml
Package shape	Brick based shaped ,brick slim shaped
Packing material	PE/PAPER/PE/AL/PE/PE 6layer aseptic packaging material roll
Electric power	24kw (mechanical transmission:4kw,electric heating power:30kw)
Rated voltage	220V/380V
Power frequency	50Hz/60Hz
Compressed air	0.4-0.6Mpa,1.0m3/min
Technological process	Feed paper---print date---sterilize---filling---shaping
Operation model	PLC control,man-machine interface operation
Shelf life	In 20-30℃,juice 12month ,milk 6 month
Outside measurement	L x W x H=4500x1600x4000(mm)
Production Area	100-140sq.m
Production personal	1-2per shift
Final product	Drinking Milk ,Yoghurt, Juice

Detailed Images

PLC control Small size /small capacity milk /yogurt /fruit juice production line,
Small size /small capacity milk /yogurt /fruit juice production line adopts the most advanced technology, including a combination
of 200L and 500 l/H, filling machine and fermentation tank and freezers, the 200L and 500 l/H unit, including water treatment,
mixing tank, fermentation tank, canning, plate sterilizer, homogenizer, boiler, air compressor, pipelines, valves, etc.
suitable for small production production of pasteurized milk, yogurt and fruit juice.All electrical appliances and accessories
with international famous brand products, production line for high quality stainless steel structure.

Compare with other big brand in the world, our machines have less power, which saves more electricity. They use high power
heater to sterilize the wind which is blowed inside machine (approx 60-70kw).
But our machine uses a triple ultra-fine particle filtration system to filter impurities and most bacteria in the air. And then
inside the machine, we designed hydrogen peroxide atomization and ozone generator for further sterilization treatment. Finally, UV
ultraviolet rays are used for deep sterilization to create a aseptic filling environment.
The total power we control it within 25kw. Which can save 75% electricity.
