Help CenterFactory Genyond 20% OFF Fruit Puree Pulping Machine / Juice Screw Pressing Extracting Equipment Extractor Machine
Related Products

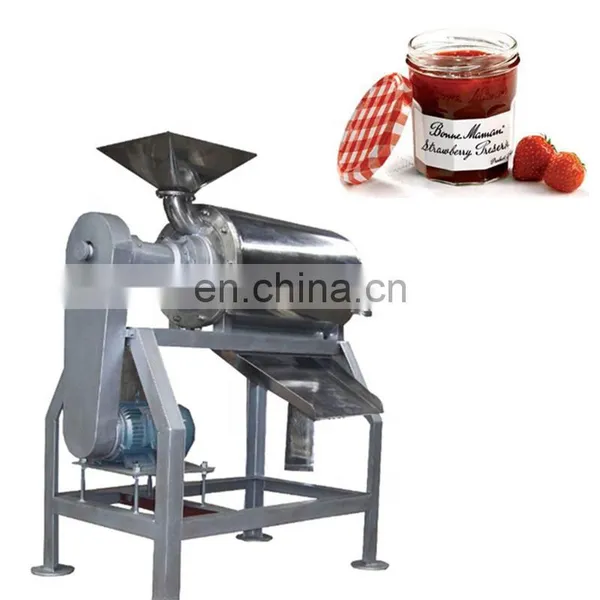

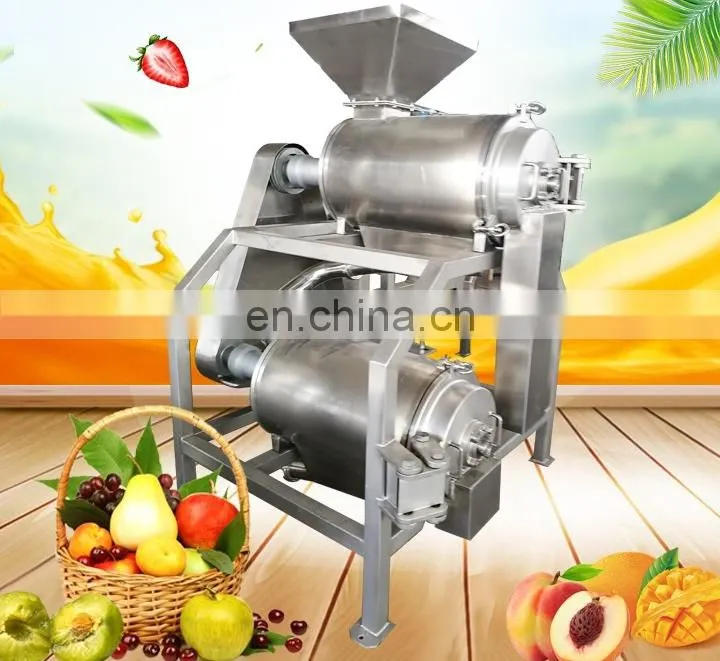

FRUIT PULPING MACHINE
This pulp extractor machine is suitable for beating and removing residue of drupe (mango, peach, apricot, etc.), berries (kiwifruit, strawberry) and kernel fruit (apple, pear, soursop ,guava,passion fruit etc.)
-
Its characteristic is: pulp juice, residue (skin, seed, nut) automatic separation
-
automatic separation of pulp;
-
can be combined in the production line, but also stand-alone production;
-
contact with the material are made of high quality stainless steel, in line with food hygiene health.

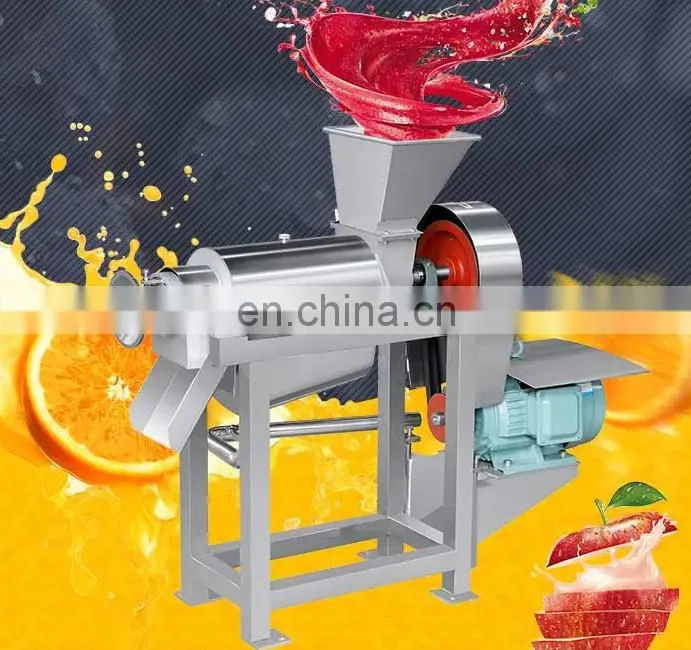

FRUIT JUICE EXTRACTION MACHINE

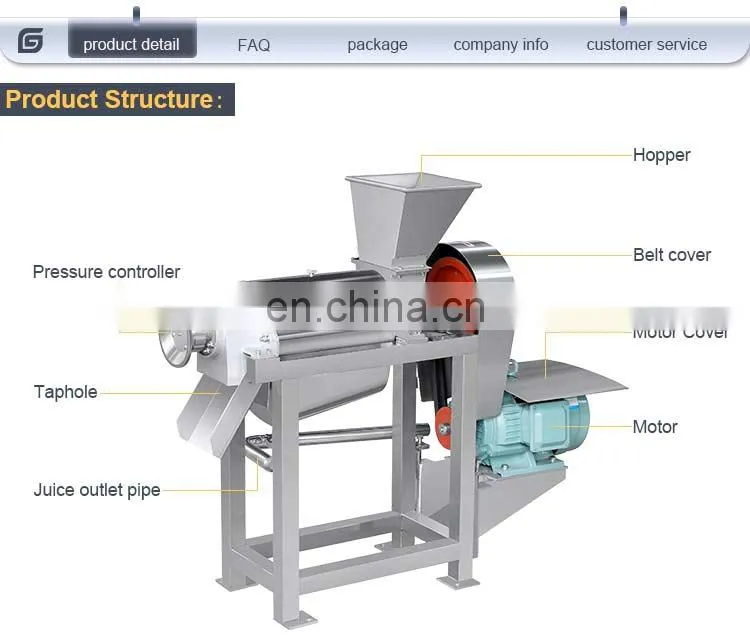

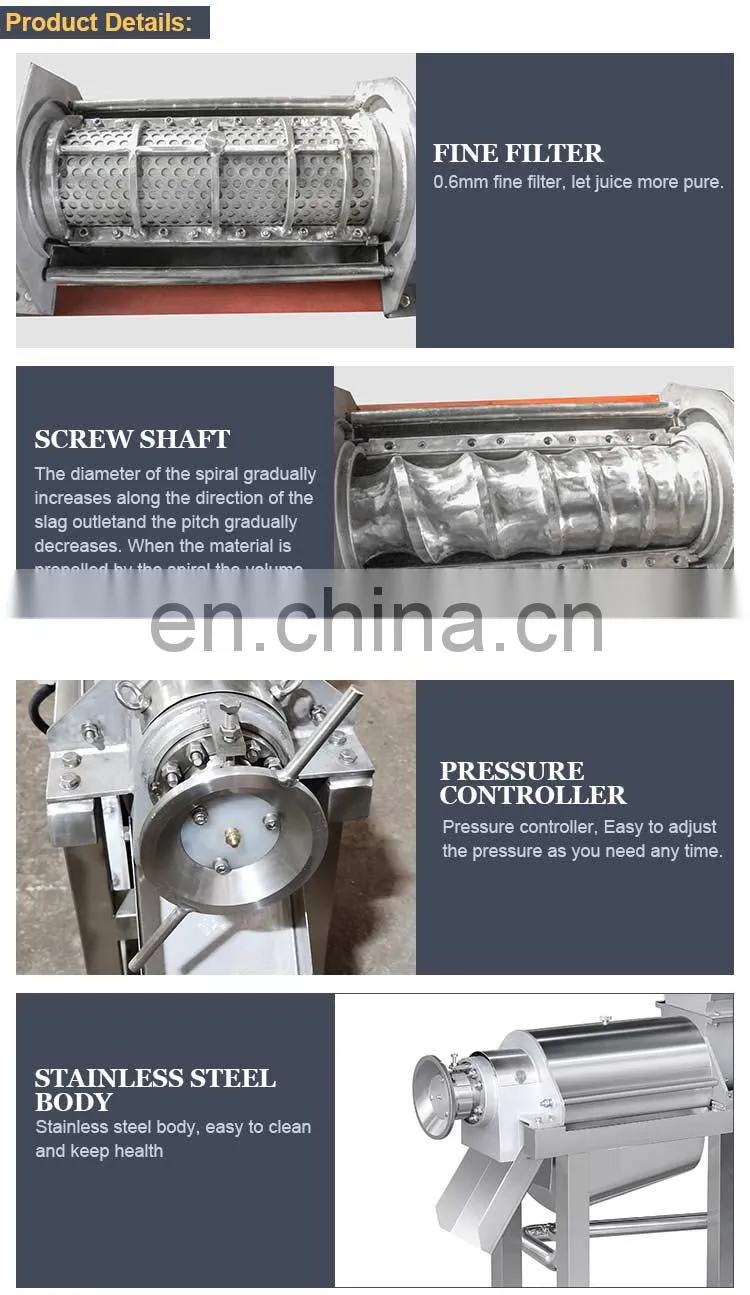

The main component of the device is a spiral. The diameter of the spiral gradually increases along the direction of the slag outlet and the pitch gradually decreases. When the material is propelled by the spiral,the volume of the spiral cavity is reduced to form a squeeze of the material and juice.The direction of rotation of the spiral main shaft is from the feed hopper to the slag groove direction, which is clockwise.The raw material is added to the feed hopper and pressed under the advancement of the spiral.The pressed juice flows through the filter into the bottom of the juicer, and the slag passes through the annular gap formed between the spiral and the tapered portion of the pressure regulating head. Discharge, the movement of the pressure regulating head in the axial direction can adjust the size of the gap.
When turning the handwheel bearing seat clockwise by hand (from the slag sump of the equipment to the hopper end), the pressure regulating head is turned to the left, and the gap is reduced. Otherwise, the gap becomes larger. By changing the size of the pores, that is, adjusting the resistance of the slag, the juice rate can be changed.However, if the pores are too small, under strong extrusion, some of the slag particles will be extruded through the filter together with the juice.Although the juice yield increases, the quality of the juice decreases relatively. Therefore, the size of the pores should be determined according to the specific process requirements of the user.
GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly.
A satisfying project will be given; A long-term cooperation will come.
