Application of the onion powder processing line:
1. the onion powder processing line is composed of three parts: pretreatment part, drying part and grinding part.
2. The drying part and grinding part of this onion powder processing line is suitable for spices, like onion, garlic horseradish, etc.
3. Can make granules in specification of 8-16mesh, 16-26mesh, 26-40mesh, 40-80mesh, and powder in specification of 80-100mesh, 100-120mesh. The project will be changed according to your requirements on the final project.
Flow chart of the onion powder processing line:
Part 1. (pretreatment part) onion skin peeling and end cutting → washing → dehydration → cutting into pieces →

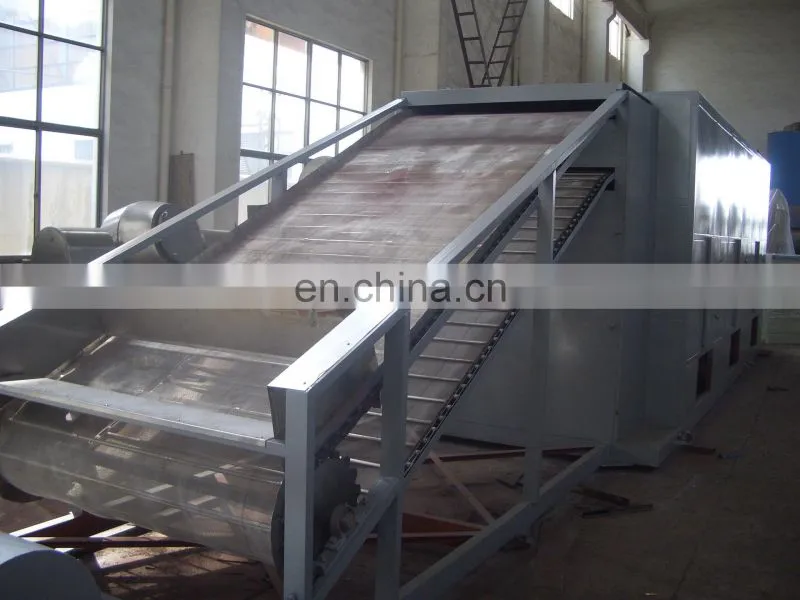

Part 2. (drying part) drying the onion →

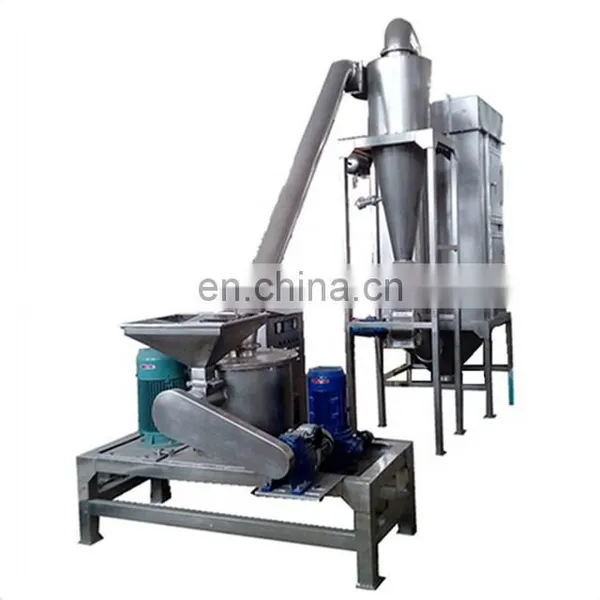

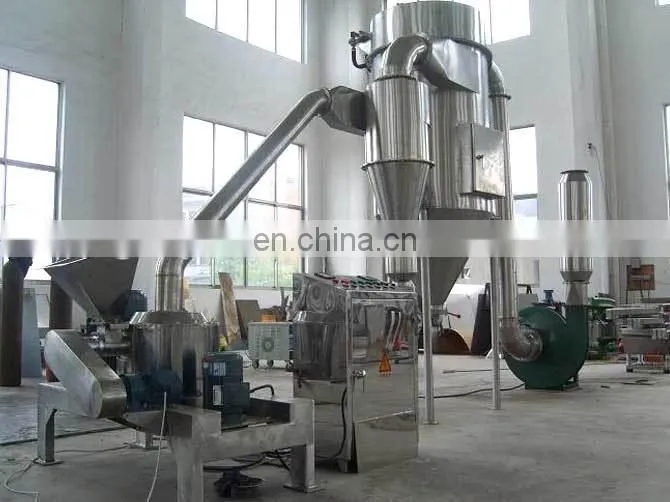

Part 3. (grinding part) elevator→ grinding → sifting → powder collecting → dust removing → packing
This onion powder processing line is divided into three part: pretreatment part, drying part and grinding part. the pretreatment part is special for onion. the drying and grinding part can be used for other spices, like garlic,horseradish, etc.
For further information please contact :
Ms. Yolanda Hu
Mobile / Wechat: +86 18817752376
Main Technical Parameters:
|
Model and Specifications |
SL—20 |
SL—30 |
Remarks |
|
Capacity(t/24h) |
16-18T |
30-40 |
Based as mainly produced mesh size 8-16 mesh |
|
8-12 |
15-20 |
Based as mainly produced mesh size 20-40 mesh |
|
|
5-7 |
10-15 |
Based as mainly produced mesh size 40-60 mesh |
|
|
7-10 |
15-18 |
Based as mainly produced mesh size 40-80 mesh |
|
|
Grinding roller contact length(mm) |
1000 |
2000 |
|
|
Sifting Area (m2) |
10-12 |
14-17 |
|
|
Power(KW) |
32 |
48 |
|
Features of Onion Powder Machines

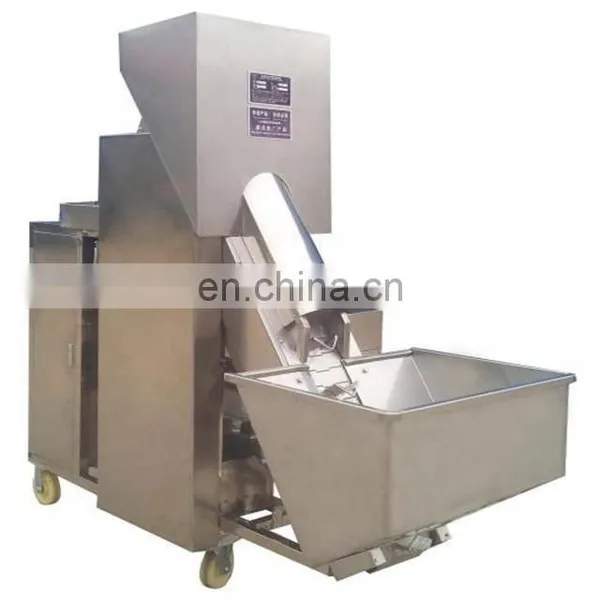

1 Perfect peeling quality
2 Full automatic, no spoilage to onions, easy operation and high peeling rate more than 95%
3 Stainless steel, no pollution to the onions.
4 Complete dry peeling
5 Hygienic design (easy to clean and disinfect)
6 Low energy and air consumption, Big handling capacity
7 Simple design and convenient usage, adopts food grade 304 stainless steel chain automatically feeding machine. Saving labor and healthy instead of manual processing onion.
8 Nice appearance, safe and reliable usage,all the components of materials meets the standards of PRC (GB/T-1997).
9 Adjustable at peeling skin layers .
