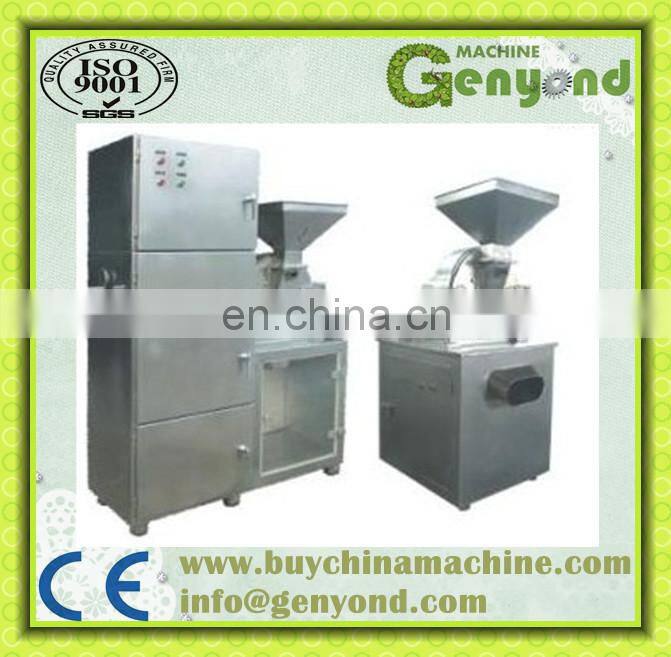

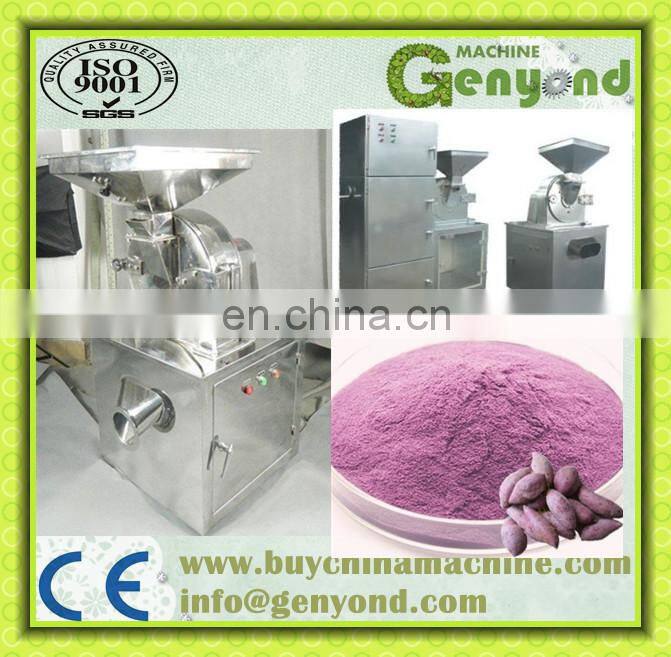

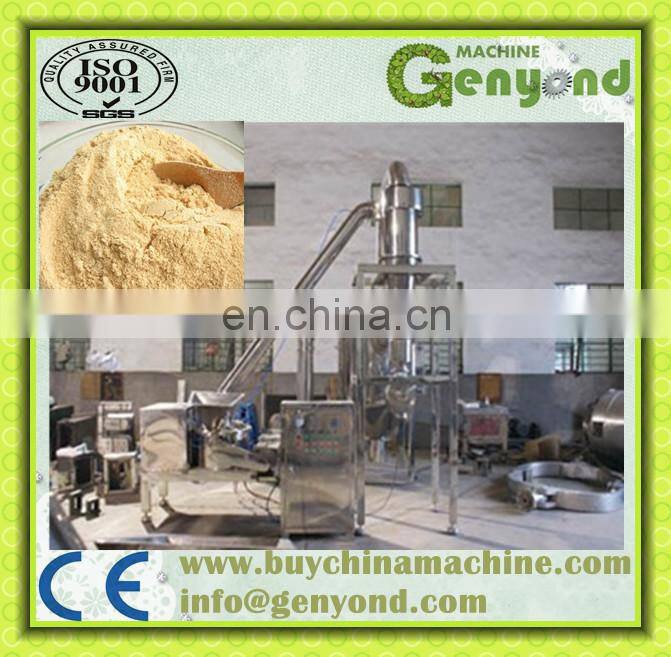

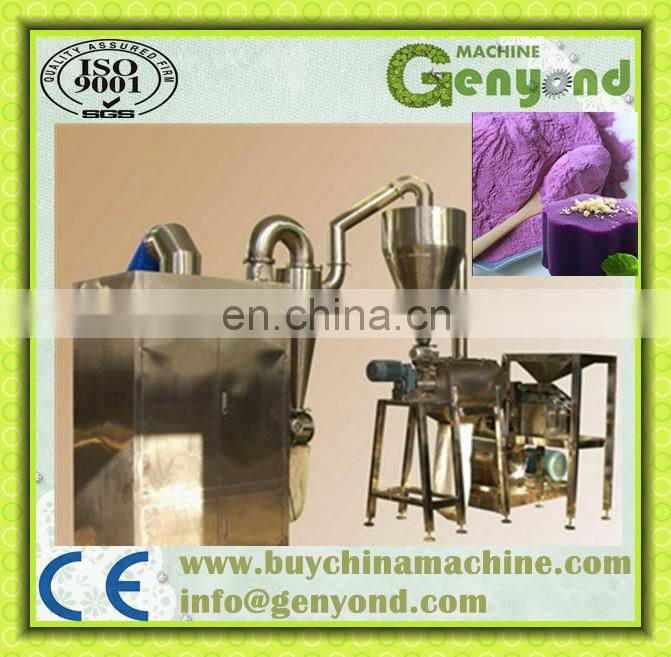

Fruit and Vegetable Powder Grinding Machine With Factory Pice
- T/T Credit Card
You May Like
-
Egg Tray Making Machine Price/carton Egg Tray Machine/ Fruit Tray Forming Machine
-
Potato Washing/drying/sorting/grading Machine
-
Sorting Grading Machine of Fruits and Vegetables
-
Big Out Onion Sorting Machine
-
Apricot Sorting Machine/cherry Sorting Machine/mango Sorting Machine for Sale
-
Cherry Sorting Machine/ Cherry Tomato Sorting Machine
Product Description
Machine Introduction
This machine has widly application and is widly used for pharmaceutical industry,chemical industry,pesticide industry,foodstuff industry,grain industry and so on.
Features
1.The machine uses the relative motion between movable and fixed teeth disc,the raw materials to be crushed undertakes the comprehensive actions such as impacted by teeth,friction,imcrushed.
2.Its features are simple and solid in structure,stable in operation,high crushed effciency.The crushed raw material can be discharged through are grinding chamber.
3.Its inner wall is processed finely,so it is smooth and level.
4.It overcome the shortcomings existed roughness,accumulated powder.
5.It makes the products of medicines,foodstuff and chemicals and so on is in comformity ith the requirements of standard and meet the requirement of GMP.
6.Control system uses program control, which operate easily and simply.
Technical Patameters
| Model | Unit | 20B/20B unit set | 30B/30B set | 40B/40B set | 60B/60B set |
| Capacity | kg/h | 60-150 | 100-300 | 160-800 | 500-1500 |
| Main shaft speed | r/min | 4500 | 3800 | 3400 | 2800 |
| Feeding granule size | mm | 6 | 10 | 12 | 15 |
| Fineness of pulverization | mesh | 60-150 | 60-120 | 60-120 | 60-120 |
| Grinding motor power | kw | 4 | 5.5 | 11 | 15 |
| Fan powder | kw | 0.75 | 1.1 | 1.5 | 2.2 |
| Weight | kg | 260 | 320 | 550 | 680 |
| Dimension | mm |
1100*600*1650
|
1200*650*1650 | 1200*650*1650 | 1550*1000*1750 |
More Pictures
Company Profile
Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
