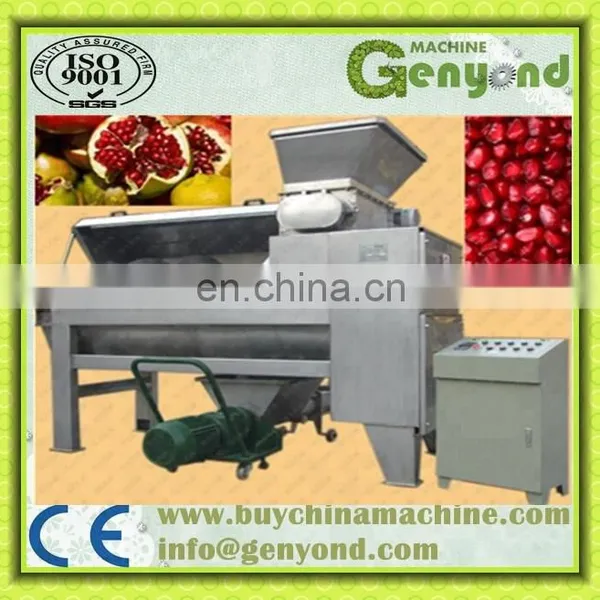

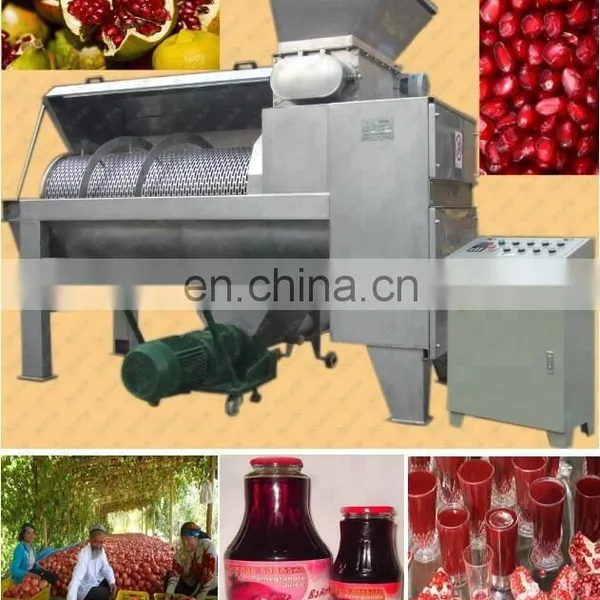

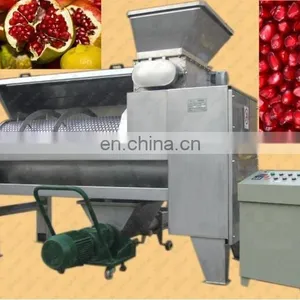

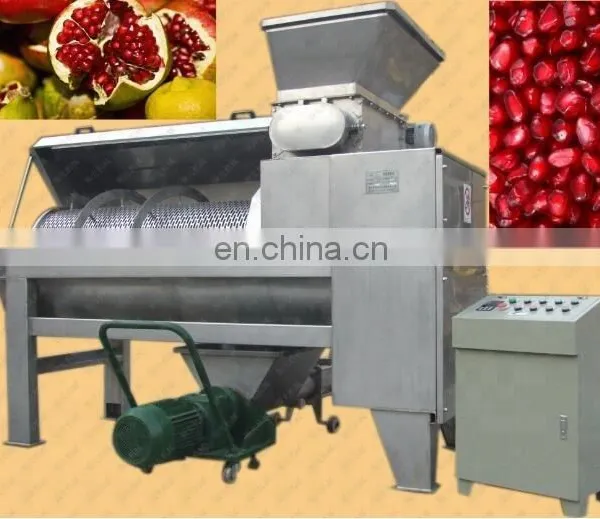

Help CenterPomegranate Seeds Separator Machine/pomegranate Seed Removing Machine
Related Products
-
Grape Seeds Separator/Industrial Automatic Electric Grape CrusherNegotiableMOQ: 1 -
Factory Direct Supply Stainless Steel Milk Spray Dryer/spray Drying EquipmentNegotiableMOQ: 1
-
Mini Laboratory Drying Equipment/spray DryerNegotiableMOQ: 1
-
Dried Mango Processing PlantNegotiableMOQ: 1
-
Full Automatic Honey Processing PlantNegotiableMOQ: 1
Specifications
1.Can both stemmer and crusher the grapes
2.high efficiency with advance designed
3.easy to operate
4.save worker
Performance characteristics
Grape destemming and crushing machine is adopted the French,Italy advanced technique and designed special for the drinks industry.
Main Technical Characteristics
1.This machine frist to rremove the stems,then to smash the grapes.Moblie single screw pump to convey the mashed fruit.
2.The screw pump can be fixed feeding mashed fruit
3.The stem removing equipment can adjust the rotary speed according the different grade of grapes.
4.Grape destemmer main parts are made of stainless steel 304.The crusher roller is made of for non-toxic,high elastic rubber.
5.The smashing mashine is easy to operate.Its rollers are rubber roller ,do not hurt the grapes and cores.
6.The size of the screen according the size of the garpes,beore order the machine ,pls confirm the max and min size of the garpes.
Main Technical Characteristics
|
Model |
GY-GR101 |
GY-GR102 |
GY-GR103 |
GY-GR104 |
GY-GR105 |
|
Capacity |
5-7t/h |
8-10t/h |
18-22t/h |
30-35t/h |
45-50t/h |
|
Slurry pump discharge |
90mm |
100mm |
100mm |
125mm |
125mm |
|
Crushing power |
0.75kw |
1.1kw |
1.1kw |
3.0kw |
3.0kw |
|
Host power |
1.5kw |
2.2kw |
4.0kw |
5.5kw |
5.5kw |
|
Slurry pump power |
4.0kw |
5.5kw |
7.5kw |
15kw |
15kw |
|
Weight |
690kg |
850kg |
1000kg |
1800kg |
1950kg |
|
Dimension (mm) |
1900*720*1350 |
2200*900*1600 |
2550*910*1630 |
3150*1200*2000 |
3200*1250*2000 |

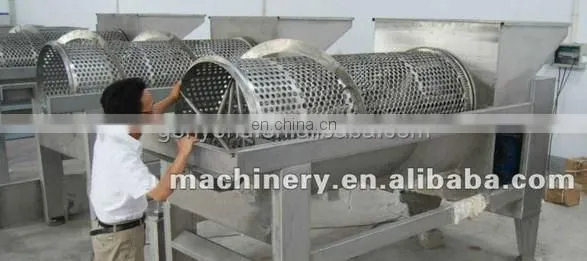

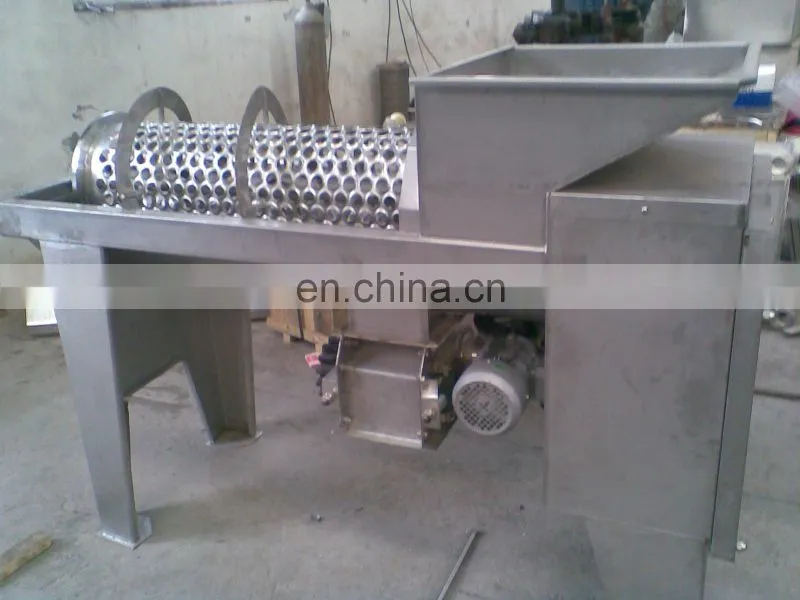

More pictures
