Jacketed kettle is mainly used for food, candy, soup, meat, milk, porridge, pharmacy and chemical industry cooking and boiling.
We can add the mixer, edge & bottom scraper, cover according to your need.
The kettle has tilting type and stationary type. The steam jacketed kettle can be heat by gas, steam(boiler) or electric. Generally, the bigger model can choose stationary type and by steam heating.

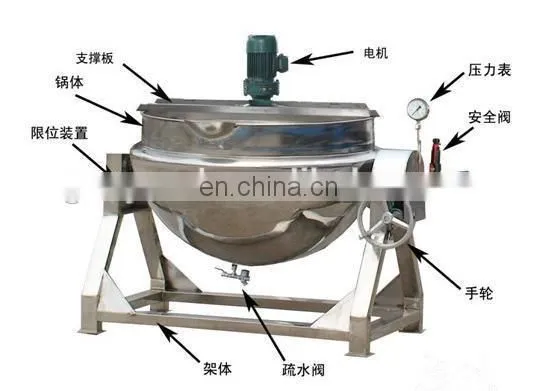

Jacketed kettle with pressure gauge, safety valve and electric control box.
Both inside and outside of the bowl are made of stainless steel, which is resistant to corrosion and in accordance with
GMP standard.
Features:
|
1. Material: stainless steel 304; |
|
2. Nominal capacity: 50-1000L; |
|
3. Large heating area, evenly heating; |
|
4. High thermal efficiency, short boiling time |
|
5. Heating temperature is easy to control; |
|
6. Nice appearance; |
|
7. Easy to install and operate; |
|
8. Safe and reliable. |
Technical parameters
| Model | GY-50 | GY -100 | GY-200 | GY-300 | GY-400 | GY-500 | GY-600 | GY-800 | GY-1000 |
| Capacity | 50L | 100L | 200L | 300L | 400L | 500L | 600L | 800L | 1000L |
| Open Diameter(mm) | 560 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 |
| Depth | 400 | 450 | 530 | 630 | 680 | 730 | 780 | 830 | 900 |
| Heating area(m2) | 0.40 | 0.58 | 1.12 | 1.42 | 1.75 | 2 | 2.3 | 3.2 | 3.9 |
| Heaing pipe power | 1kw*3 | 3kw*3 | 5kw*3 | 6kw*3 | 6kw*3 | 8kw*3 | 8kw*3 | 9kw*3 | 10kw*3 |
| Conduction oil | 25L | 36L | 45L | 60L | 70L | 80L | 100L | 200L | 250L |
| Working pressure | Equal and less than 0.09Mpa | ||||||||
| Mixing speed | 36r/min | ||||||||
| Mixer power | 0.3kw | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 |
