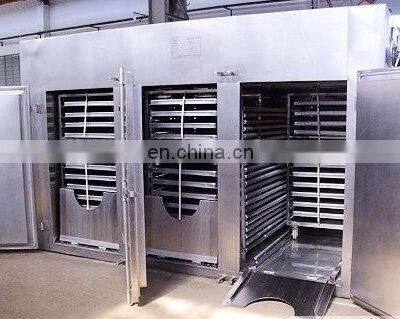

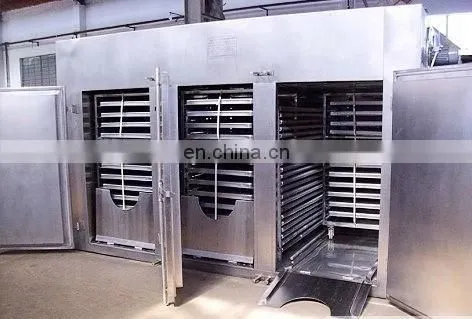

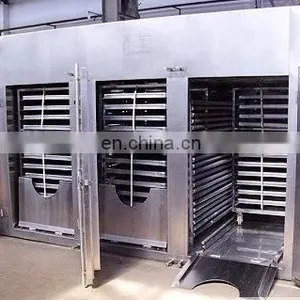

Help CenterVegetable&Fruit Drying Machine/Dryer/Drying Cabinet/Oven
Related Products
-
Machine to Dry Fruits/solar Fruit Drying Machine/industrial Fruit Drying MachineNegotiableMOQ: 1 -
Food Drying Equipment/ Fruit Dryer/microwave Drying MachineNegotiableMOQ: 1
-
Wide Used Industrial Food Dehydrator Machine for Fruit / Industrial Food Drying Machine / Commercial Food Dryer MachineNegotiableMOQ: 1
-
Shanghai Genyond Ginger Washing MachineNegotiableMOQ: 1
-
Industrial Cold Press Juicer/apple Juice Belt PressNegotiableMOQ: 1
Specifications
Automatic temperature control
Nutrition maintenance
Used for fruit vegetable fish etc.
Low noise, stable working, low cost.
Features
High heating efficiency
By means of forced air blast, the drying chamber can dry materials evenly.
Multiple heating resources, e.g. steam, electricity
Low noise, balanced operation, and easy temperature control, installation and maintenance.
Application
Heating, solidification, drying and dehydration of drugs, chemicals, food, agricultural and sideline products,
marine products, e.g. raw medicines, crude drugs, traditional Chinese medicines prepared in ready-to-use forms, extracturms, powders, granular drugs, packing bottles, pigments, dyestuff, vegetables, melons
and fruits,pineapples,mangoes,sausages, plastic resins, electronic components and coatings.
Explanation
1 For the heating source, there are many kinds: steam, electrical, or steam and electrical to be chosen.
2 The used temperatures to be used: steam heating 50-140°C, Max.150°C.
3 The moisture while using the electrical or temperature: 50-350°C.
4 There are the automatic control system and the computer control system for users’ selection.
5 Commonly used steam pressure 0.02-0.08 Mpa(0.2-8kg/cm2)
6 If using the electrical heating and being type one, the calculation is 15kw, and the practical use is 5-8kw/h.
7 The special requirements should be indicated at the time of order.
8 The price for the non-standard oven should be consulted.
9 The use temperatures more than 140°C and less than 60°C should be indicated at the time of order.
|
Field standard number |
Model |
Drying capacity (kg/batch) |
Power (kw) |
Steam Consumption (kg/h) |
Radiator area (m2) |
Fan volume (m3/h) |
Temperature difference (℃) |
Equipped drying tray(pcs) |
Size(mm) |
Equipped drying cart |
|
RXH-4-B |
CT-1 |
100 |
1.1 |
20 |
20 |
3400 |
±2 |
48 |
2430×1200×2375 |
2 |
|
RXH-27-B |
CT-2 |
200 |
1.1 |
40 |
40 |
5200 |
±2 |
96 |
2430×2200×2433 |
4 |
|
RXH-41-B |
CT-3 |
300 |
2.2 |
60 |
80 |
9800 |
±2 |
144 |
3430×2200×2620 |
6 |
|
RXH-54-B |
CT-4 |
400 |
2.2 |
80 |
100 |
9800 |
±2 |
192 |
4380×2200×2620 |
8 |
Q: Are you are trading company or manufacturer?
A: We are manufacturer, specializing in the design and produce the food processing line, like fruits, meat, vegetables, beverages, dairy machinery, essential oil refining equipment, filling and packaging euipmen etc.
Q: How can I get your quote?
A: Please do not hesitate to contact us, tell us your production plan, and we will make the best proposal for you regarding to your requiement.
Q: Can I visit your factory?
A: Of cousre, we are very welcome you visit us and discuss the every detail face by face. Please inform us the trip plan before you coming.
1. Provide top quality OEM/ODM service.
2. Customized deign by our technical team.
3. Good quality control with competitive price.
4. Our machine with low consumption and high efficiency
5. We aim to offer fast delivery, professional sales service and best after-sale services.
6. We promise your any inquiries will get prompt attention
