Sweetened condensed milk production line





Turnkey pasteurized milk production line/UHT milk processing line/milk drink processing machines.

The whole milk production line consists of the following systems:
1. Water treatment system
2. Suger melt system
3. Sterilizer system
4. Filling and packing system
5. CIP cleaning system
6. After treatment equipments, like conveyor, package or pallet, etc.
7. There are other assistant equipments used such as steam boilers, air compressor, cold water unit, etc.
8. Installation materials for the process pipline, utility pipeline as well as electrical installation are provided.
Filling and packing types can be decided by the customer then designed accordingly.
Our company can design customized milk production lines in accordance to the customers' requirements. The production capacity varies from 1000L/h to 10000L/h according to customer's need



Note: this milk production lines can be widely used to produce UHT milk, pasteurized milk, setted milk, stirred milk, milk drink, yogurt, ice cream, condensed milk and milk powder, and so on.

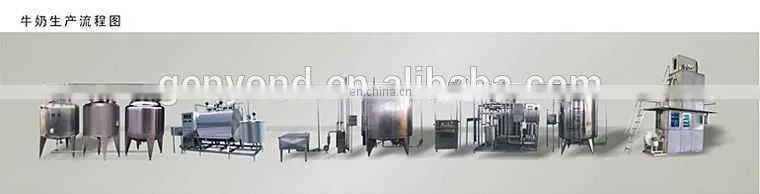

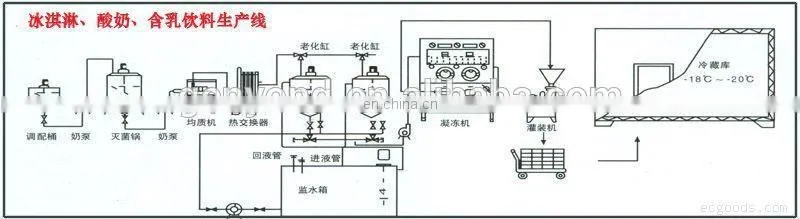

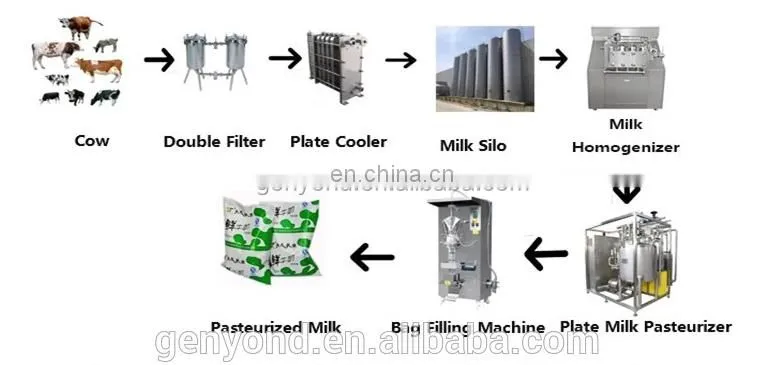

Milk &Yogurt & Beverage Processing Line flow chart



Factory 500L per hour Evaporated milk making filling canning machine processing plant Sweetened condensed milk production line







 Factory 500L per hour Evaporated milk making filling canning machine processing plant Sweetened condensed milk production line





Standard Equipment list of DAIRY PRODUCTION LINE

NO.

NAME

MAIN TECHNOLOGY PARAMETER

1

MILK RECEIVESTORAGE

2

milk receiving tank

SUS304 stainless steel,single layer,CIP cleaning ball

3

milk pump

SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished

4

double filter

SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh

5

dish separator

auto residue discharge

6

cooling tank

SUS304 stainless steel,alveolate jacket,attached with compressor

7

milk pump

SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished

8

blending tank

SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet

9

milk pump

SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished

10

mini set of plate-type heat exchanger

SUS304 stainless steel,two stages,

11

milk pump

SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished

12

UHT sterilizer

tub-type,sterilizing temperature 137 C,holding time 4S,full automatic control

13

high pressure homogenizer

40MPa,(starting box included)

14

CIP system

15

semi-auto CIP system

outer coat of SUS304 stainless steel material,inner shell of SUS316,single cleaning way,Concentrated acid/alcali tank adding system based on US technology, 100L×2 acid/alcali Concentrate tanks

16

CIP return pump

SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished

17

 installation part

whole milk processing line installation and commissioning

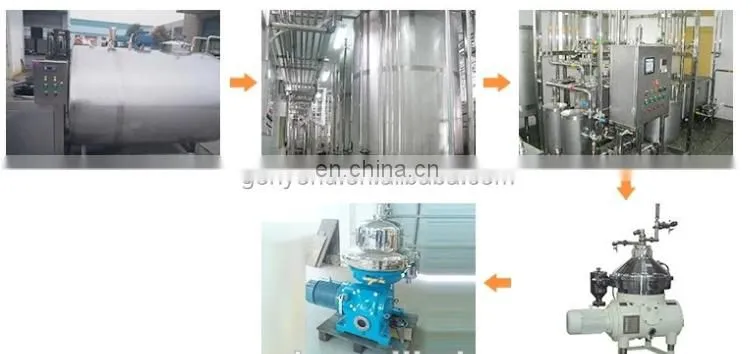

Sweetened condensed milk plant Process Flow

Inspection on raw milk -- Milk clarification -- Cooling --Storage -- Standardization -- Pre-heating -- Homogenization -- Sterilization -- Evaporation -- Cooling and crystallizing -- Filling -- Secondary sterilization

Factory 500L per hour Evaporated milk making filling canning machine processing plant Sweetened condensed milk production lineFactory 500L per hour Evaporated milk making filling canning machine processing plant Sweetened condensed milk production lineFactory 500L per hour Evaporated milk making filling canning machine processing plant Sweetened condensed milk production lineFactory 500L per hour Evaporated milk making filling canning machine processing plant Sweetened condensed milk production lineFactory 500L per hour Evaporated milk making filling canning machine processing plant Sweetened condensed milk production lineFactory 500L per hour Evaporated milk making filling canning machine processing plant Sweetened condensed milk production line

 Factory 500L per hour Evaporated milk making filling canning machine processing plant Sweetened condensed milk production line
