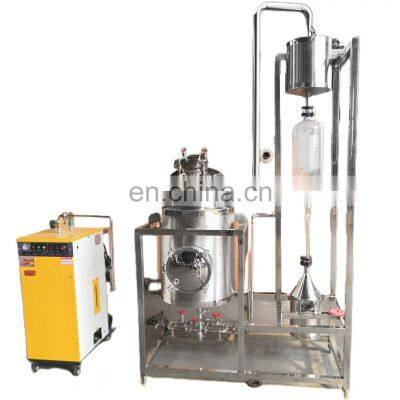

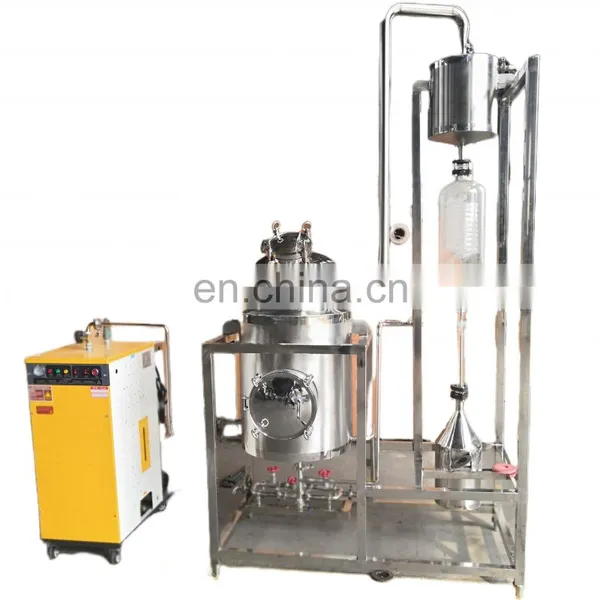

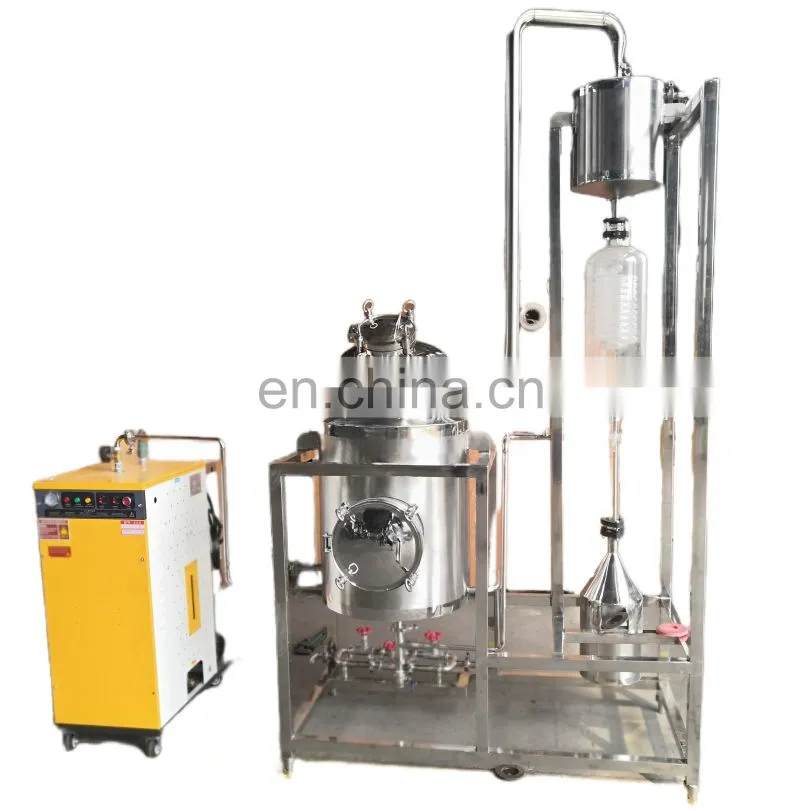

100L - 500L essential oil distillation equipment
This essential oil distilling equipment is popular in production of Chinese medicines,health products,biological drugs,cosmetics and food .This essential oil Distill equipment uses technology and chemical separation,can extract plant components efficiently by steam distillation , have good effect in collecting essential oil from plants.
Description

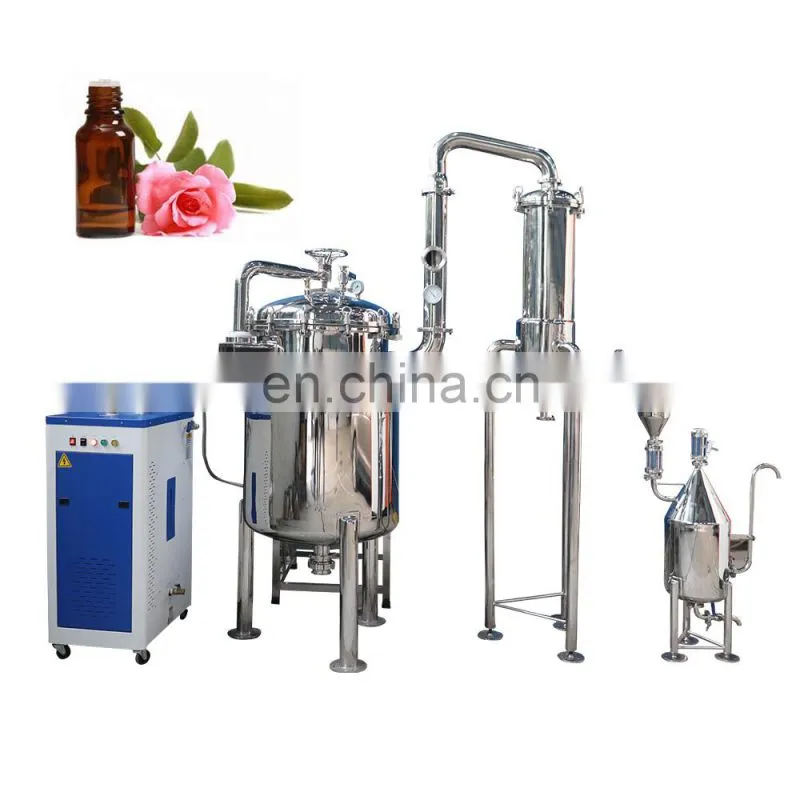

500L multifunctional essential oils distiller
To watch more videos about this machine, please check our youtube channel:
/channel/UCs-MbMT4Pu0HseoNwFjWCgQ
Specification of 500L distiller:
1. Heating type: A:Electric(220/380V or customized)
2. Volume of extracting tank: 500L
3. Condenser: Coil type, 500 mesh,condensing area 1.3 square meters
4. Extracting temperature: Indoor temperature to 100℃
5. A Electric heating power: 24kw(conducting oil heating system)
6. Pipeline Filter: Filtering capacity: 1200kg / h;filtration precision: 200 to 300 mesh
7. Cooling media: Water,1T/h(customers can choose 5P chiller as needed)
8. Temperature transducer: PT-100
9. Temperature control module: Taiwan LAHO
10. B Temperature control system: Siemens temperature control steam proportional valve group
11. Temperature control: A with automatic control;B through shutoff valve manual control or proportional valve automatic control;C manual control
12. Equipment Material: Whole equipment using excellent stainless steel SUS304,thickness 3mm
13. Distillation tank: 2 layers stainless steel(electric heating 3 layers)
14. Water separator material: Borosilicate glass
15. Size: L2300xW1200xH2500mm
|

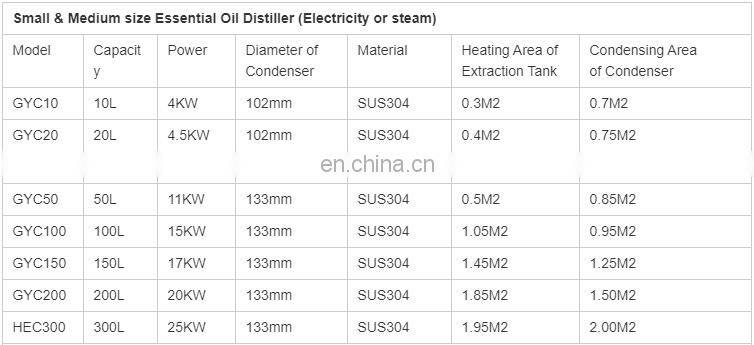

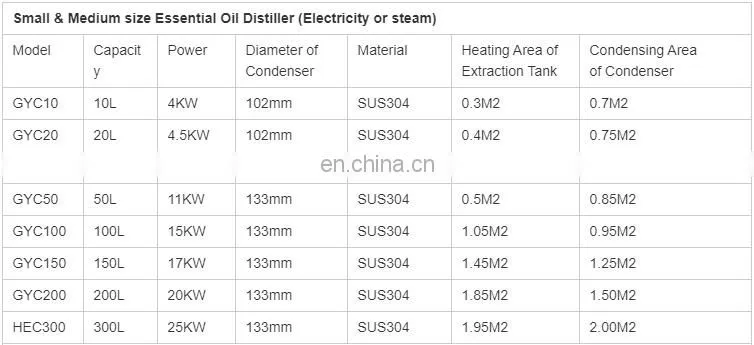

10-20L distiller |
50-200L distiller |
300-500L distiller |
|
800-1000L distiller |
2000-3000L distiller |
4000-5000L distiller |
GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly.
A satisfying project will be given; A long-term cooperation will come.
