Introduction:
Countercurrent circulation ultrasonic extraction unit is widely used in a variety of volatile or non-volatile solvent extraction of natural products active ingredients, suit for medicine, food, health products, cosmetics and other laboratories and production, can also be used for ultrasonic dispersion, emulsification, release slow drugs AMD capsules and nanocapsules Preparation of research use, this is the ideal equipment of schools and research institutes and pharmaceutical companies.
Features:
1)This countercurrent circulation ultrasonic extraction unit uses Ultrasonic countercurrent cycle extraction and extract Vacuum evaporated a variety of pharmaceutical technology as one. Automatic operation, PLC automatic control inverter, touch screen dynamically displays the whole workflow. Test data can be external PC Print Save.
2)Shanghai Yuda countercurrent circulation ultrasonic extraction unit adaptability: it’s do not limited to ingredients polarity and molecular size for extract Chinese herbal. countercurrent circulation ultrasonic extraction unit is applies to the extract of vast majority of Chinese herbal extracts and various ingredients
3)Equipment selectable frequency range: 15KHz,20KHz,28 KHz,30 KHz,35 KHz,40 KHz,50 KHz,60KHz,80KHz.
4)The countercurrent circulation ultrasonic extraction unit is dynamic extraction cycle, do repeated ultrasound, repeated extraction to the material. The extraction rate of this countercurrent circulation ultrasonic extraction unit higher than the average ultrasonic extraction.
5)Countercurrent circulation ultrasonic extraction unit using frame structure, compact structure, convenient operation, comes with cleaning function.
6)The countercurrent circulation ultrasonic extraction unit with different filter systems according to the different materials of customer.

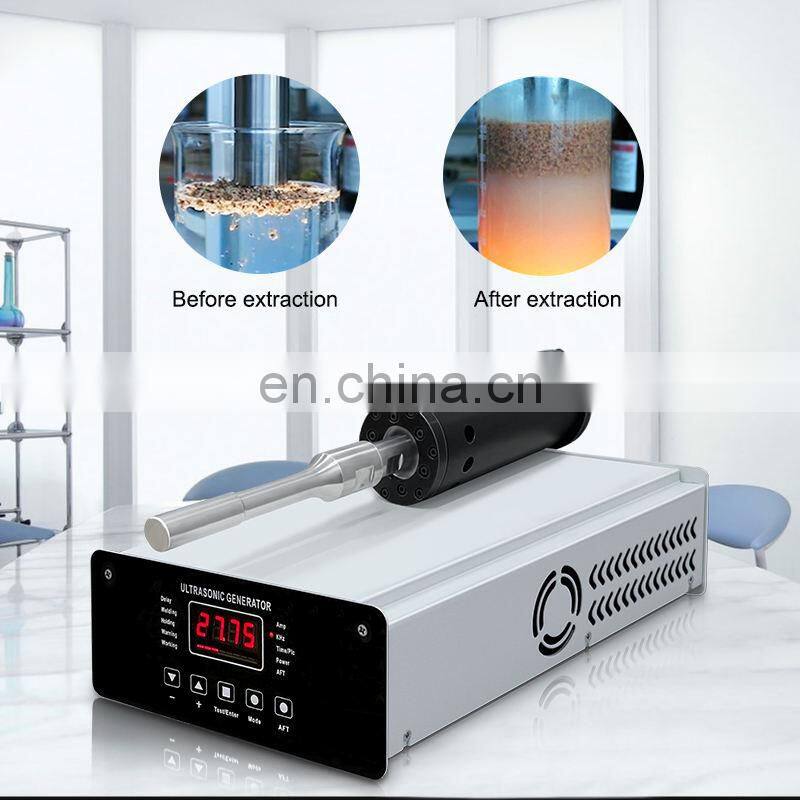

7)Countercurrent circulation ultrasonic extraction unit, use high-power of shaped ultrasonic generator. The ultrasonic power can be adjust, the ultrasonic electronic control is touch screen dynamic display control system.
Ultrasonic power: 200W ~ 3000W can be adjusted arbitrarily.
Ultrasonic frequency: 20KHz automatic tracking, ± 0.15KHz.
Random horn (mm): 3.2, 6.3, 9.5 or customized production.
Equipment parameters (100L for reference):
1 Total power: 12.5KW.
2 vacuum pump: 1.75KW, with control valve.
3 mixing system: centrifugal pump liquid circulation mixing system
4 Scraper Motor: 1.5kw (also done CIP cleaning)
5. extraction tank heating area: 0.95M2
6 condenser condensing area: 1.63 M2
7 scraper concentrated heating area: 0.95 M2
8 sandwich working pressure: 0.3MPa;
9 water extraction temperature: room temperature to 100 degrees;
10 alcohol extraction temperature: room temperature to 85 degrees
11 Vacuum degree: -0.05 ~ -0.08MPa;
12 scraper concentrated distillation temperature: 45 to 80 degrees
13 Extraction tank effective volume: 100L
14. scraper concentrate tank volume: 100L, three heat preservation heating structure, scraper agitator, 360 CIP cleaning components.
15 Material: machine uses the high quality SUS304 2B, liner 3mm, jacket 3mm, shell body 3mm.
16 Equipment surface treatment: tank inter surface mirror polishing , outer surface drawing inferior smooth processing.
17 Equipment size: 1850x850x2370, customized according to customer demand.
Parameter
|
Model |
FY-U10 |
FY-U-30 |
FY-U50 |
FY-U100 |
FY-U300 |
FY-U500 |
|
Capacity (L) |
10 |
35 |
55 |
110 |
220 |
320 |
|
Vacuum pump (kw) |
0.55 |
0.75 |
1.5 |
1.5 |
2.2 |
2.2 |
|
Heating area (M2) |
0.32 |
0.38 |
0.55 |
0.86 |
1.95 |
3.05 |
|
Heating power (kw) |
3 |
6 |
9 |
12 |
24 |
Steam for heating |
|
|
For 300L or below, electricity can be used for heating |
|
||||
|
Interlayer pressure (MPA) |
Atmospheric pressure |
|||||
|
Pressure in tank (MPA) |
-0.09 |
|||||
|
Pressure in tank (MPA) |
Room temperature - 100 (controllable) |
|||||
|
Heating mode |
Electricity or steam |
|||||
|
Ultrasonic frequency |
15khz,20KHz,28KHz,30KHz,35KHz,40KHz,50KHz,60KHz,80KHz |
|||||

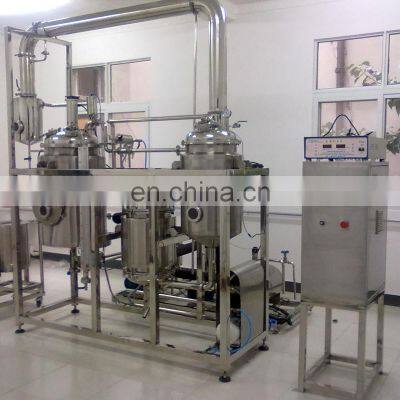

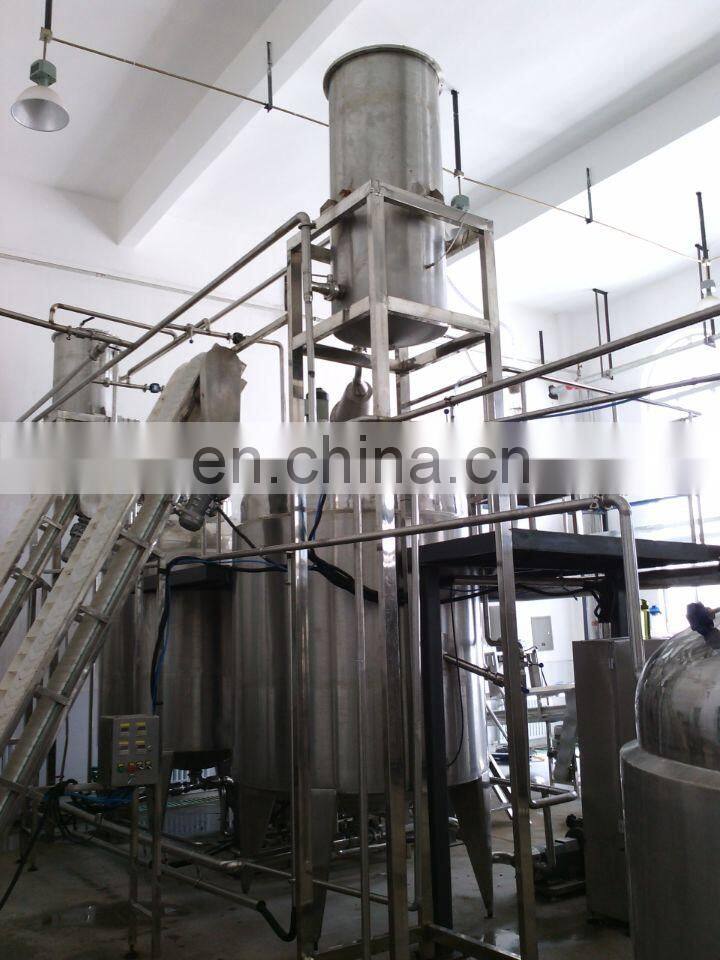

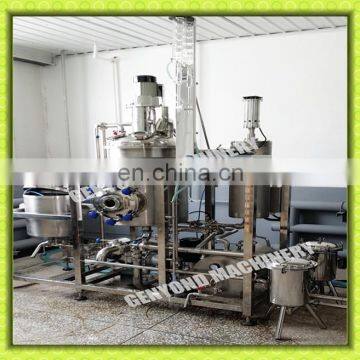

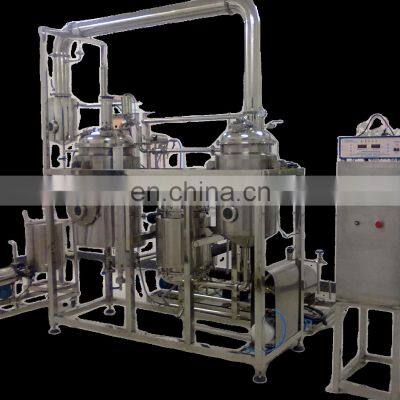

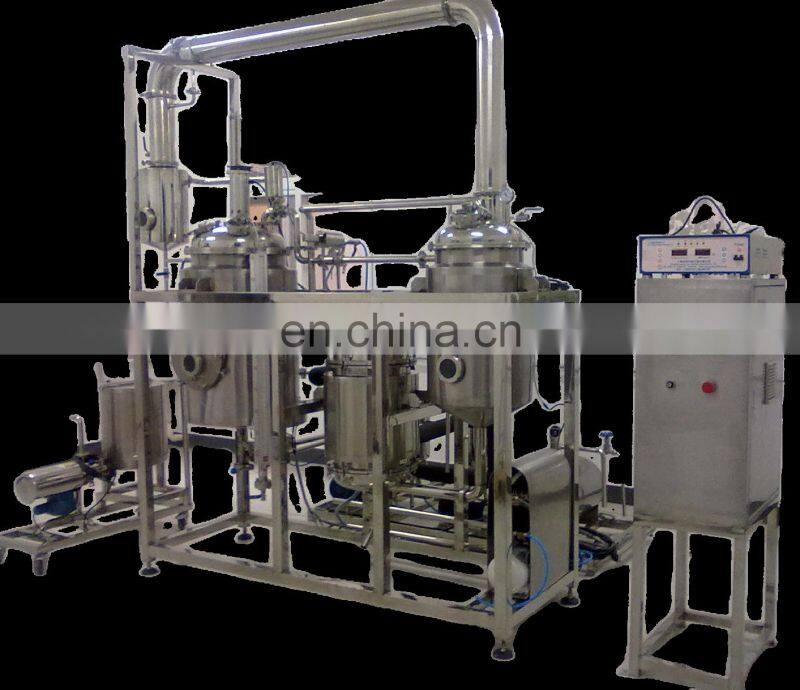

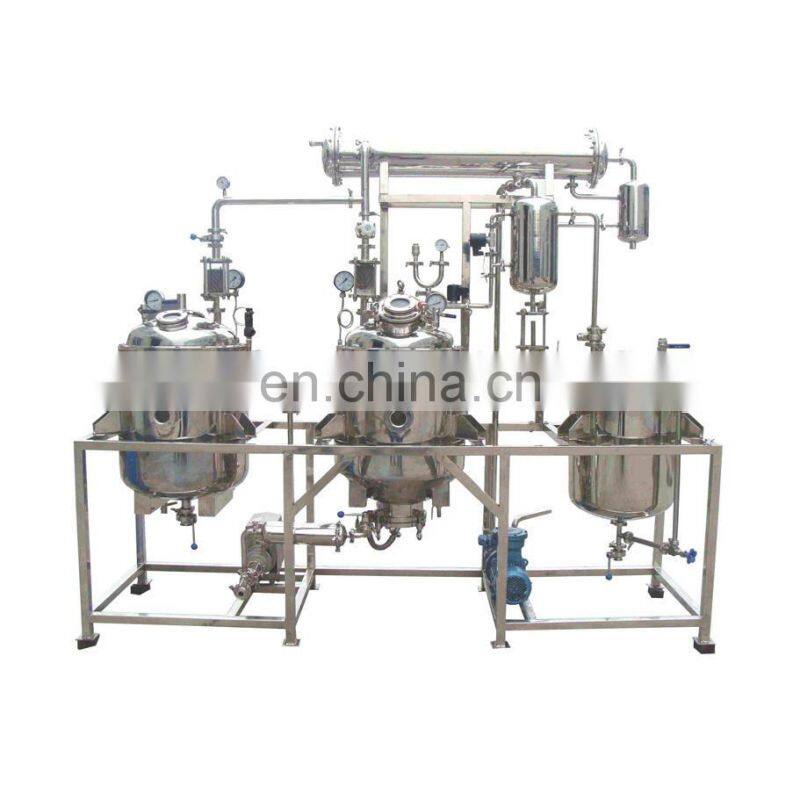

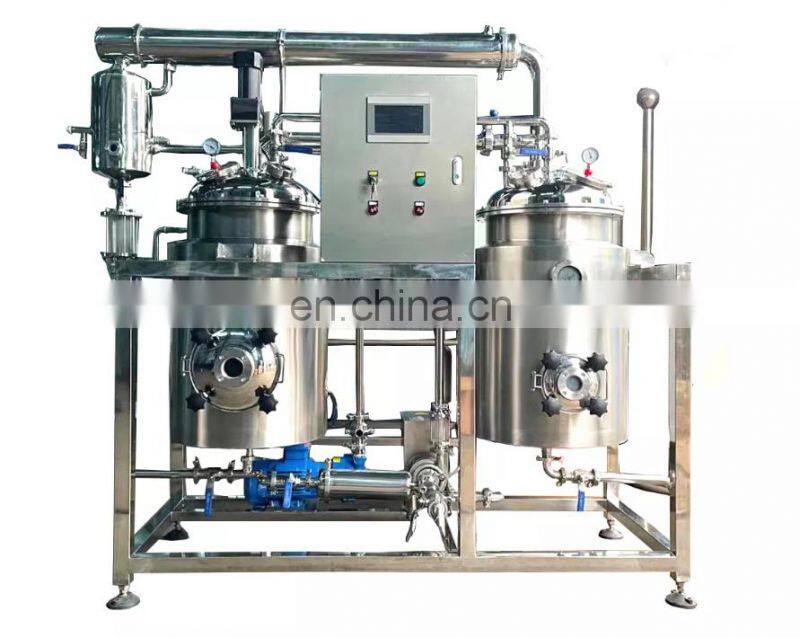

More Pictures for reference
|
|||
|
|
|
|
|
|
|
|
|
|
GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly.
A satisfying project will be given; A long-term cooperation will come.
