AKH-0.66/K-50 Split Core Current Transformer Class 0.5 Voltage 660V AC Frequency 50~60Hz

Acrel Electric Co., Ltd
AKH-0.66/K-50 Split Core Current Transformer Class 0.5 Voltage 660V AC Frequency 50~60Hz thumbnail-1
AKH-0.66/K-50 Split Core Current Transformer Class 0.5 Voltage 660V AC Frequency 50~60Hz thumbnail-2
AKH-0.66/K-50 Split Core Current Transformer Class 0.5 Voltage 660V AC Frequency 50~60Hz thumbnail-3
AKH-0.66/K-50 Split Core Current Transformer Class 0.5 Voltage 660V AC Frequency 50~60Hz thumbnail-4
AKH-0.66/K-50 Split Core Current Transformer Class 0.5 Voltage 660V AC Frequency 50~60Hz thumbnail-5
AKH-0.66/K-50 Split Core Current Transformer Class 0.5 Voltage 660V AC Frequency 50~60Hz photo-1

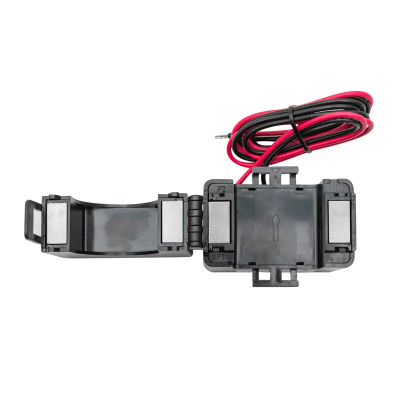

AKH-0.66/K-50 Split Core Current Transformer Class 0.5 Voltage 660V AC Frequency 50~60Hz photo-2
AKH-0.66/K-50 Split Core Current Transformer Class 0.5 Voltage 660V AC Frequency 50~60Hz photo-3

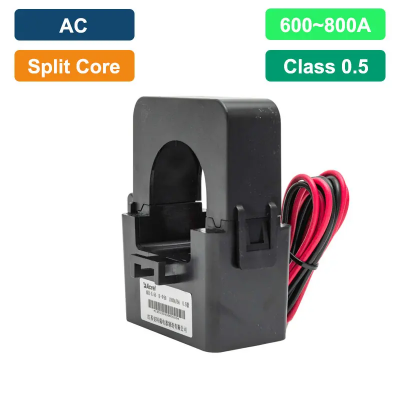

AKH-0.66/K-50 Split Core Current Transformer Class 0.5 Voltage 660V AC Frequency 50~60Hz photo-4
AKH-0.66/K-50 Split Core Current Transformer Class 0.5 Voltage 660V AC Frequency 50~60Hz photo-5
US$ 19 - 25 MOQ: 1 Bag
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
AKH-0.66/K-50
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Acrel
Place of Origin China
Model Number AKH-0.66/K-50
Usage Current
Phase Single
Coil Number Autotransformer
Coil Structure Toroidal

AKH-0.66 K-φ50 Split core Current Transformer
Current Transformer (CT) is used to transform the high AC current to small easily manageable values.They are connected with the Panel Meter or Relay and they can help to measure the current or protect the equipments.


● Measurement: Alternating Current (AC) ● Accuracy: Class 0.5 ● Primary Current Input: 600~800A AC ● Rated Voltage: 660V AC ● Rated Frequency: 50~60Hz ● Installtion: Clamp-on (installed on Cable) ● Loop Count: 1 Loop ● Standard&Certificate: IEC/EN61869-1;IEC/EN61869-2;CE
Explanation of Model Name
Function & Parameter
Technical Parameters
Model
Name
Current Ratio(A)
Primary/Secondary
Accuracy
Class
Rated Load
(VA)
Aperture
Hole Diameter(mm)



AKH-0.66/K-Φ10
5A/1.67mA
0.5
10
φ10
5A/2.5mA
10A/5mA
45~50A/20mA
80A/26.7mA


AKH-0.66/K-Φ16
120A/40mA
0.5
10
φ16
40~100A/20mA
80A/32mA


AKH-0.66/K-Φ24
60~200A/20mA
0.5
10
φ24
200A/40mA
150~200A/5(1)A
1
1
200~300A/5(1)A
1
1.5




AKH-0.66/K-φ36
400A/50mA
0.5
10
φ36
400A/40mA
600A/75mA
200~400A/20mA
300~400A/5(1)A
               1
1.5
500~600A/5(1)A
              0.5
AKH-0.66/K-Φ50
(600~800)A/100mA
              0.5
               10
              φ50
Dimension & Installation
Dimension Overview
Model Name
                                          Outline Size (mm)
Perforation Size (mm)
Tolerance (mm)
W
H
D
M
N
φ1
φ2
AKH-0.66/K-φ10
27
40
26
24
36
10
9
     ±1
AKH-0.66/K-φ16
31
50
29
28
42
16
17
AKH-0.66/K-φ24
39
71
46
36
52
24
23.5
AKH-0.66/K-φ36
42.5
82
58
40
56
33.5
35
AKH-0.66/K-φ50
46.5
110
90
54
66.5
47
52
Installation Instruction
Solutions & Applications
Application Scenario
Petrochemical
Siderurgy
Rail Transportation
