Acrel ARD2M-250 Blocking Motor Protector Series Protect Blocking Overload Unbalance Short Circuit

Acrel ARD2M-250 Blocking Motor Protector Series Protect Blocking Overload Unbalance Short Circuit photo-1
Acrel ARD2M-250 Blocking Motor Protector Series Protect Blocking Overload Unbalance Short Circuit photo-2
Acrel ARD2M-250 Blocking Motor Protector Series Protect Blocking Overload Unbalance Short Circuit photo-3
Acrel ARD2M-250 Blocking Motor Protector Series Protect Blocking Overload Unbalance Short Circuit photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

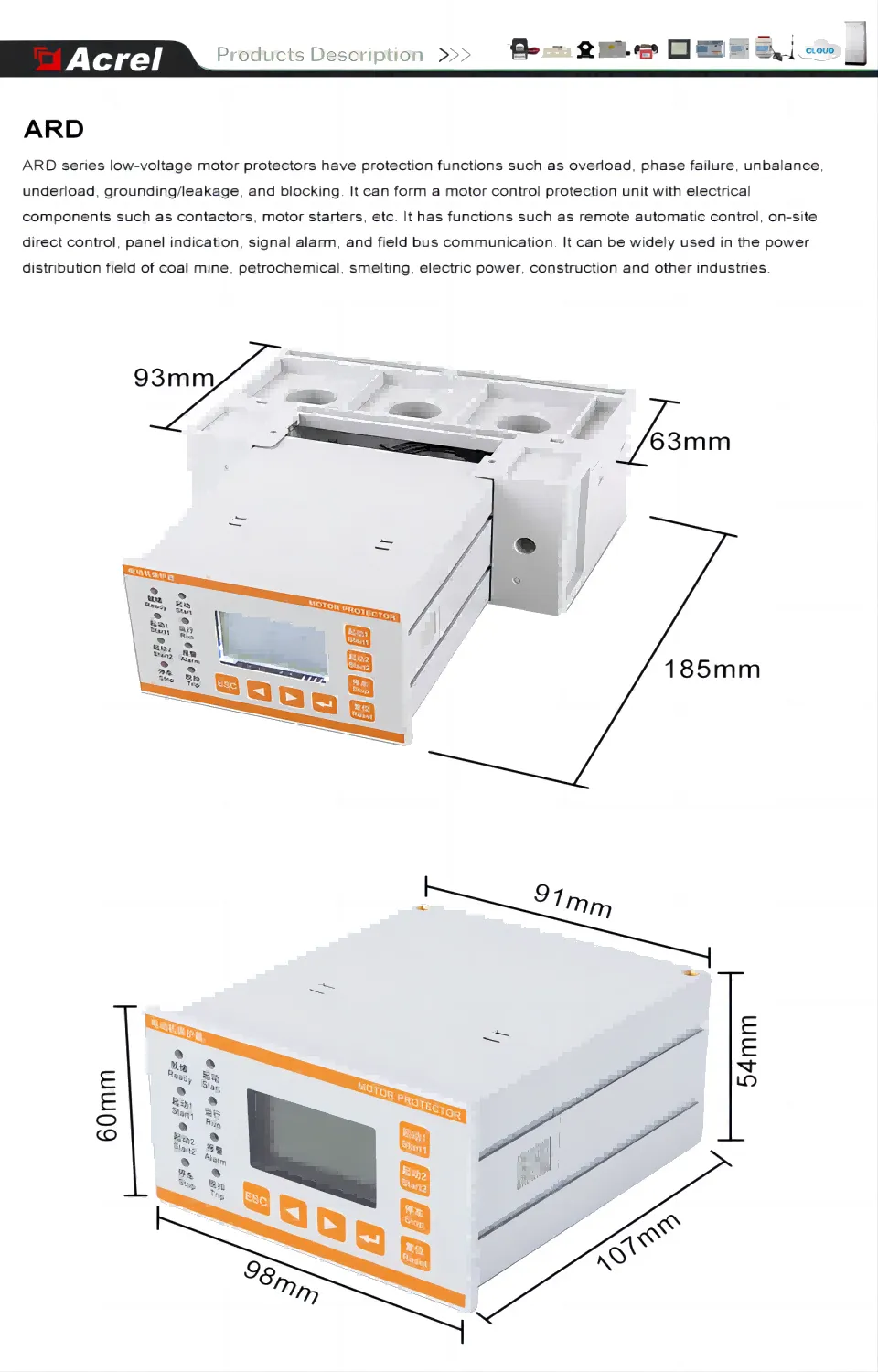

ARD2M motor protector (hereinafter referred to as the protector) is suitable for low-voltage motor circuits with rated voltage up to 380V and integrates protection, measurement, control, communication, operation and maintenance.Its perfect protection function ensures the safe operation of the motor, with logic programmable function, can meet a variety of control methods.

Protector
current
specification
(A)
Ratio
setting
Primary side coil
number of
transformer
Applicable scope of
motor (kW)
Suitable for motor
Rated current range
(A)
1
Support
1 circle
0.12-999
0.1-1.6
5
1 circle
0.12-999
1.6-6.3
25
Does not
support
1 circle
3-11
6.3-25
100
1 circle
15-45
25-100
250
1 circle
55-132
63-250
800
1 circle
160-250
250-800
Technical parameters
Technical indicators
Protector auxiliary power supply
AC85-265V/DC100-350V
Rated working voltage of the motor
AC220V / 380V,50Hz / 60Hz


Rated operation current of the motor
1 (0.1A-1.6A)


Integrated/Split current transformer
5 (1.6A-6.3A)
25(6.3A-25A)
100(25A-100A)
250(63A-250A)
Split current transformer
800(250A-800A)
Relay output contact capacity
Impedance load
AC250V、10A
Switching input
8 channels of passive dry contact (active DC110V, DC220V, AC220V
input can be optional)

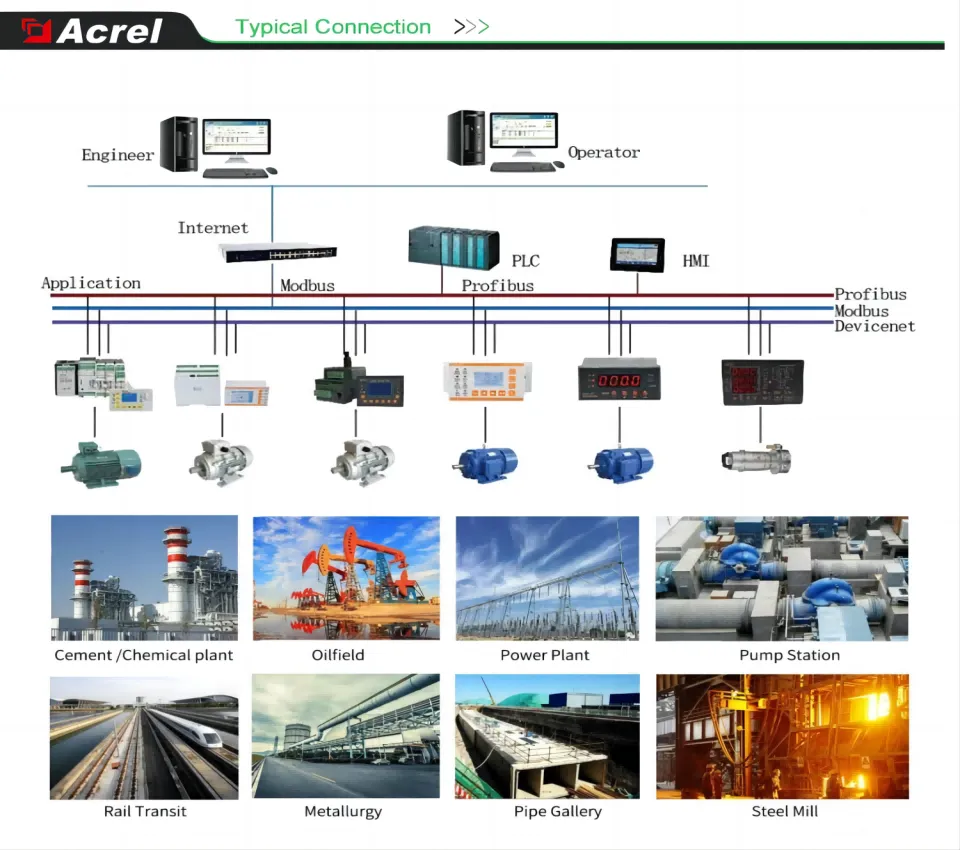

Communication
RS485 Modbus_RTU,Profibus DP


Environment
Working temperature
-10ºC~55ºC
Storage temperature
-25ºC~70ºC
Relative temperature
≤95 ﹪ No condensation, no corrosive
gas
Altitude
≤2000m
Pollution levels
3 level
Protection grade
IP65(installed on the cabinet panel)
Installation category
III Level

Product Tags: overload motor protector , motor protection relay , motor protection
