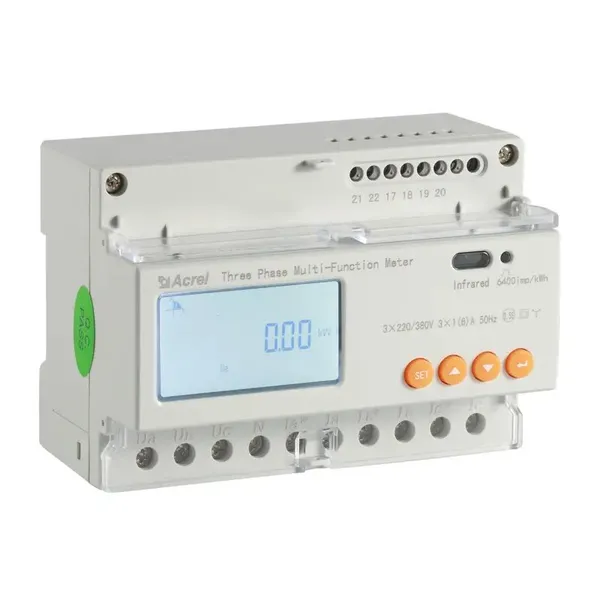

ADL3000E 45 65Hz Three-Phase AC Energy Meter 35mm Din Rail Power Quality Analyzer Class 0.5 For Building Factory EV Charger
USD $70 - $140
/ Piece
1 Piece(Min.Order)
- 1 Piece / Pieces per Month
- T/T L/C Credit Card PayPal
You May Like
-
ADL3000 Din-rail Type Energy Meter 3P4W 80A Input Power Meter With Digital LCD Display For Power Monitor Current Voltage Measure
-
ADL3000E U I P Q S PF Monitoring 35mm Din-Rail Solar Pv Electric Meter Digital Three Phase Energy Meter Rail kwh Meter Din
-
Acrel AKH-0.66/K K-∮24 150/5A Split Core Current Transformer for easy installation and improved efficiency
-
Acrel AKH-0.66/K K-∮16 120A/40mA Split Core Current Transformer for easy installation and improved efficiency
-
Acrel AKH-0.66/K K-∮16 120A/40mA Split Core Current Transformer for easy installation and improved efficiency
-
Acrel AKH-0.66/K K-∮24 150/5A Split Core Current Transformer for easy installation and improved efficiency
Product Details
| Brand Name: | Acrel | Place of Origin: | China | Model Number: | ADL3000-E |
| Phase: | Three Phase | Operating Temperature: | -40℃～99℃ | Dimensions: | 127*88*70mm |
| Display Type: | Digital Only | Accuracy Class: | 0.5S | Measuring Energy Range: | 0-99999.9kwh |
Product Description
ADL3000 Three-phase Multi-function DIN Rail Energy Meter
ADL3000 is a smart meter designed for power supply systems, industrial and mining enterprises, and utilities to calculate electricity consumption and manage electric demand. It features high precision, a small size, and simple installation.
Picture | Specification | Optional |
| ● Measurement: 3-phase kWh (0.5S), Active Power, Reactive Power, Current, Voltage, Harmonic and etc ● Voltage Rating: 3x220/380V, 3x57.7/100V (3P4W); 3x380V, 3x100V (3P3W) ● Current Rating: 3x10(100)A; 3x1(6)A ● Frequency: 45~65Hz ● Communication: RS485 (MODBUS-RTU) and Infrared ● Display: LCD (8 digits) ● Dimension: 127*88*70mm (L*W*H) ● Wiring: 3-phase 4wire; 3-phase 3-wire ● Installation: 35mm DIN Rail ● Standard&Certificate: IEC; CE; EAC | ● 1DO/1DI ● Secondary RS485 (MODBUS-RTU) ● Multi-rate: Spike, Peak, Valley, and Flat kWh ● three channels temperature measurement(NTC) ● 2-31st harmonic |
