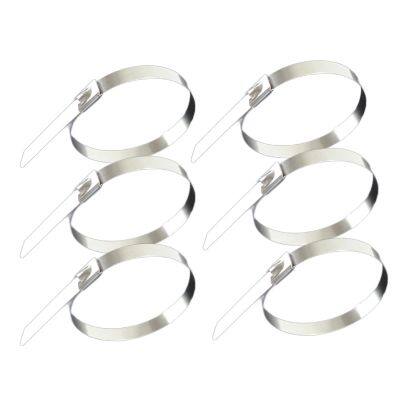

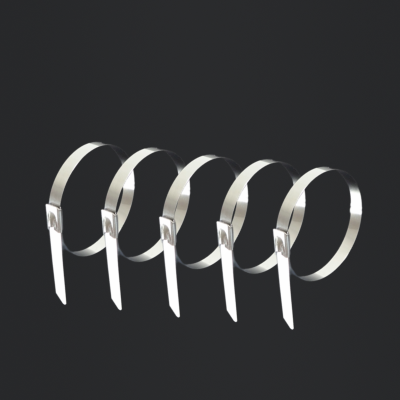

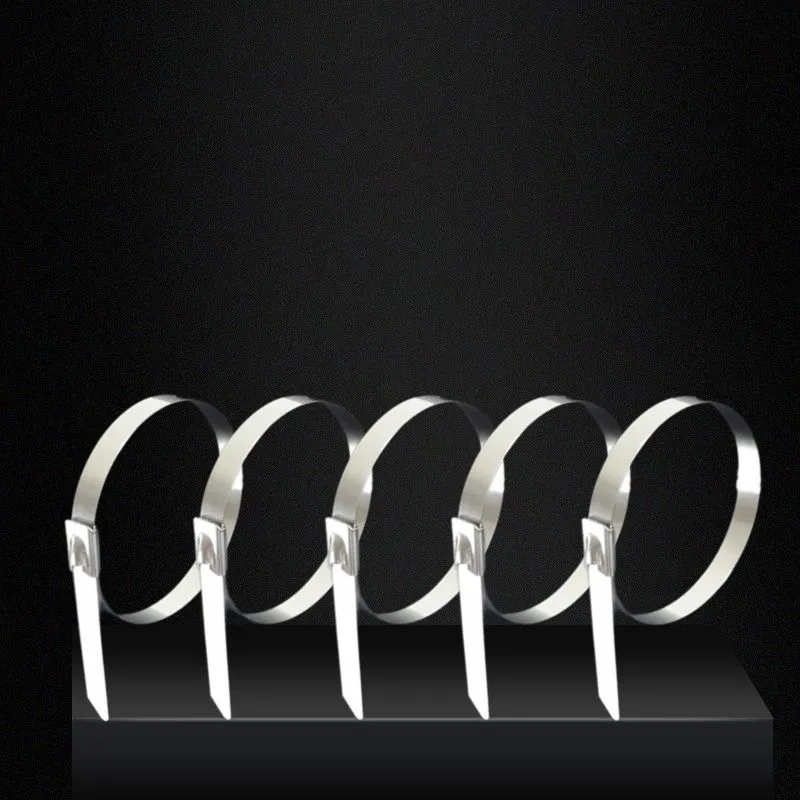

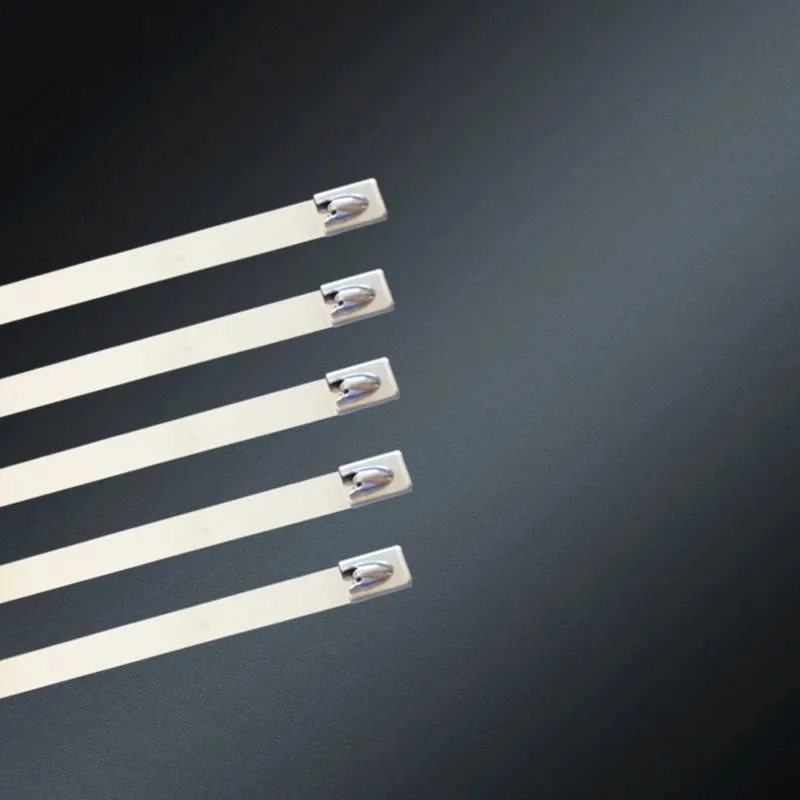

Stainless Steel Cable Tie of Steel Ball Self-locking in Material 304

Stainless steel zip ties

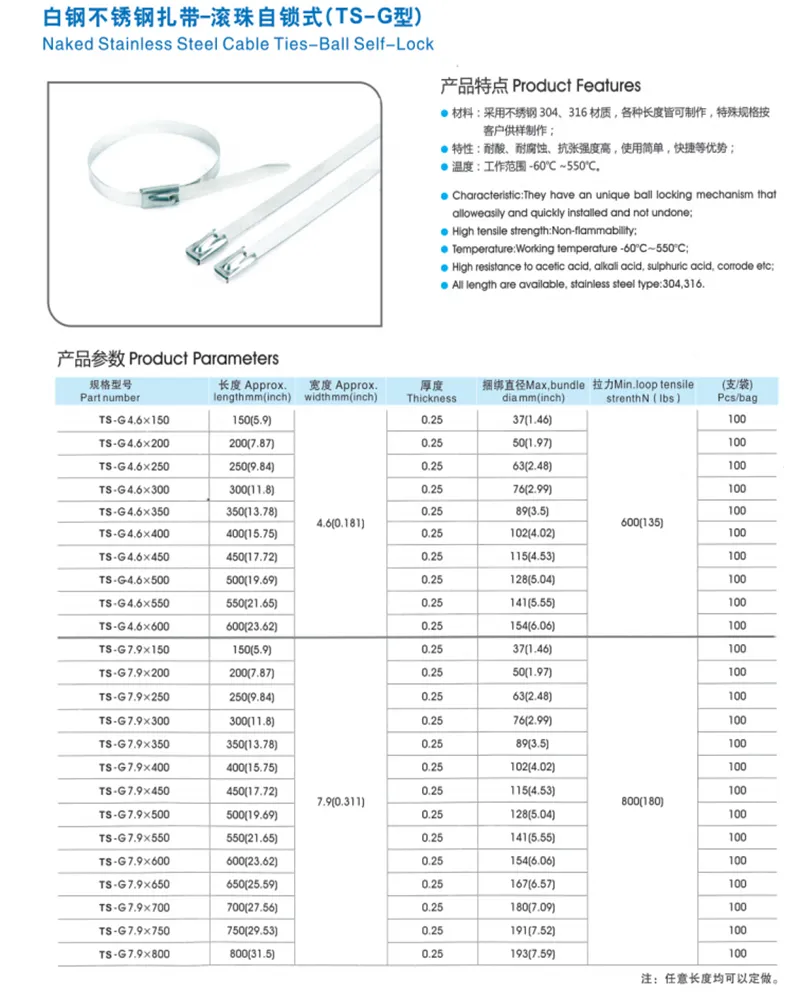

Model: 4.6mm * 100mm -4.6mm * 3000mm/7.9 * 150-7.9 * 3000mm/10 * 150-10 * 3000mm/12 * 200-12 * 3000mm/

16 * 250-16 * 3000mm/20 * 300-20 * 3000mm/25 * 500-25 * 2000mm, etc. can be customized according to customer needs

Material: optional on 201/304/316.

Process: Stamping

Surface: Polishing treatment

Edge: Chamfer treatment does not harm hands

Bearing capacity: The bearing capacity depends on the width and thickness of 80 kilograms to 100 kilograms to 150 kilograms to 200 kilograms to 500 kilograms.

You can choose the length, thickness, and width to better meet the load-bearing capacity and bundling range required by your own product.

Performance and purpose: Stainless steel zip ties are a type of stainless steel product mainly used for industrial bundling and fixing purposes, as they are made of stainless steel material,

Therefore, stainless steel has the characteristic of being resistant to chemical corrosion media (such as acid, alkali, salt, etc.) corrosion. At the same time, stainless steel tie products are not limited by the shape and size of the tied object,

The simple buckle structure simplifies the complexity of traditional clamps, and good fastening performance ensures the safety of the bound object. Stainless steel straps are corrosion-resistant and high-temperature resistant materials,

Ensuring the aesthetic and fire safety requirements of the environment, the market mainly adopts the trend of steel ball locking and tightening with just one pull, which is convenient and fast, bringing a lot of convenience to use in complex environments.

At the same time, black, red, yellow, blue, green, etc. (the process involves coating the surface of stainless steel with baking paint) are used for a wider range of applications to meet some special purposes.

Application scope reference: Used in industry, agriculture, communication, petroleum, aviation, transportation, shipbuilding industry, etc.

Example of usage: 1. Fixation of signs, signal lights, and related transportation facilities on municipal engineering. 2. Bundling of cables, streetlights, and power supply equipment in power engineering.

Forming process: The primary color stainless steel zip ties are mainly formed by stamping assembly, initial inspection, final inspection, packaging and shipping.

Spray molding process: Apply a layer of plastic with a thickness of 1-1.5mm on the body of the stainless steel strip, with a total thickness of 3.5-4mm, and then bake it at high temperature to achieve perfect fusion.

Packaging process: The plastic thickness of the coating on the stainless steel strip body is between 0.65-0.75mm, with a total thickness of 0.9-1mm

There are three common types of stainless steel materials, 201, 304, and 316, whose anti-corrosion properties also increase in order. Therefore, when selecting stainless steel ties, it is necessary to consider engineering needs,

Choose the corresponding material based on the environment used. 201 material is generally sufficient for conventional environments. 304 material is used in humid and corrosive environments.

The environment is poor and corrosive. 316 material can be selected according to the specific environmental requirements of the product.

Attention: Confirm the requirements of the object you are tying, the load-bearing capacity, the thickness of the product, and whether it is required to be tightly fastened or just a regular tie,

Is it hard, soft, or soft and tight? Determine the different styles of zip ties, such as the length of stainless steel zip ties that need to be cut by oneself. This mainly comes with a tooth buckle

Screw buckles or L-buckles, plastic coated stainless steel zip ties with plastic layers that protect the product like cables, wear-resistant insulation, etc., stepped stainless steel zip ties, bead type,

The coating can be customized according to customer needs, including black, red, yellow, blue, green, etc., with a minimum order quantity requirement.

Finally, determine the product selection. If it is suitable for oneself, it is good. If there is a guarantee of after-sales service from the factory, customization is also possible. We can come up with some resolute solutions for common reference.

If you need any specific consultation, you can contact Wenzhou Chuangyu Electrical Appliance Co., Ltd
