Electric Pallet Truck
US$ 1300 - 3600
/ Unit
1 Unit(Min. Order)
- QINGDAO
- T/T L/C
Product Details
| Brand Name | OLIFT | Place of Origin | China | |
| Model Number | TB TP TX |
Product Description

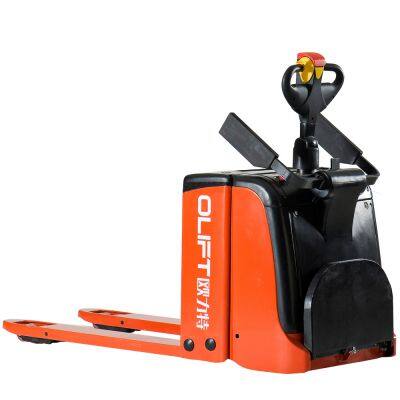

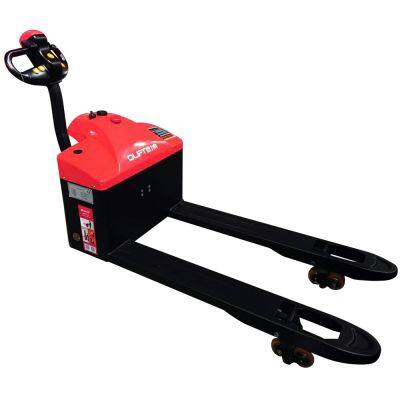

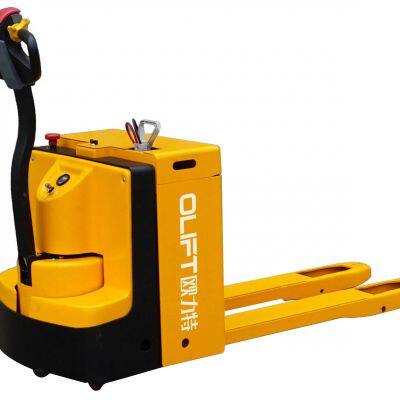

Electric Pallet Truck
TP20 series
1.Strong chassis bears long-term and heavy duty.
2.Horizental driving wheel unit. Wheel replacement simple.
3.CURTIS controller, MAHLE hydraulic motor.
4.Stepless speed control, slow travel switch optional.
5.Standing pedal,handrails, and electromagnetic brake.
6.Safety features include a horn ,belly reverse button and an smergency switch.
7.Driving motor AC and DC optional.
| Model No. | TP20 | TP20B | |
| Driving style | Standing pedal | Pedestrian | |
| Load capacity | kg | 2000 | |
| Load center | mm | 600 | |
| Overall length | mm | 1865 | 1780 |
| Overall width | mm | 690 | |
| Overall height | mm | 1290 | 1310 |
| Fork dimension L×b×s | mm | 1150×160×56 | |
| Outside width of forks | mm | 530/680 | |
| Base distance | mm | 1405 | |
| Wheel material | PU | ||
| Driving wheel dimension | mm | Φ230×80 | |
| Front wheel dimension | mm | Φ80×70 | |
| Balance wheel dimension | mm | Φ100×40 | |
| Min. steering radius | mm | 1710 | 1600 |
| Min. width of aisle | mm | ≥2140 | ≥2030 |
| Min. height of forks | mm | 85 | |
| Max. stroke of forks | mm | 120 | |
| Max. speed（landen/unladen） | km/h | 4.5/5.5 | |
| Gradeability | % | 8 | |
| Brake type | Electromagnetic | ||
| Power of driving motor | kw | 1.5 | |
| Power of lift motor | kw | 2.2 | |
| Battery capacity/voltage | Ah/V | 210/24 | |
| Weight of battery | kg | 190 | |
| Net weight（without battery） | kg | 356 | 320 |
