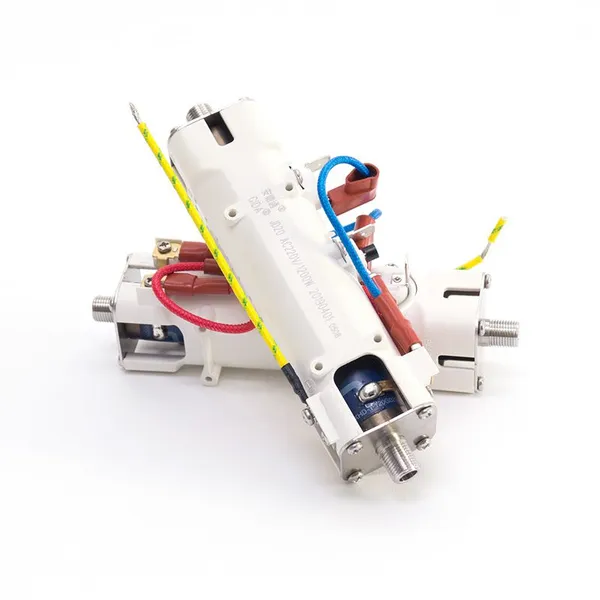

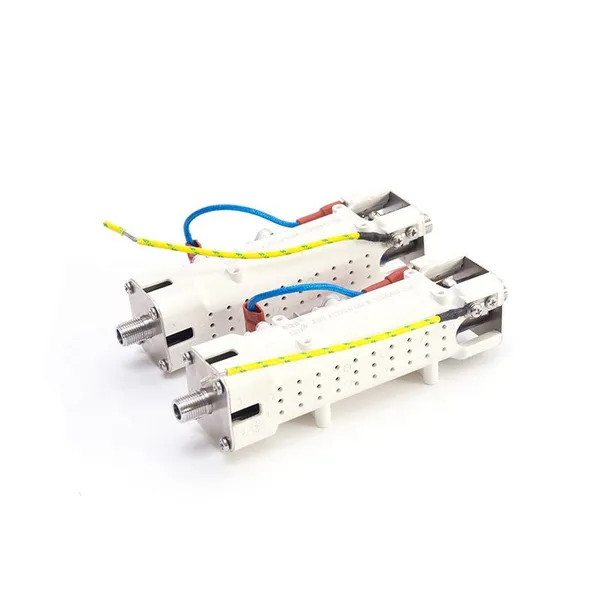

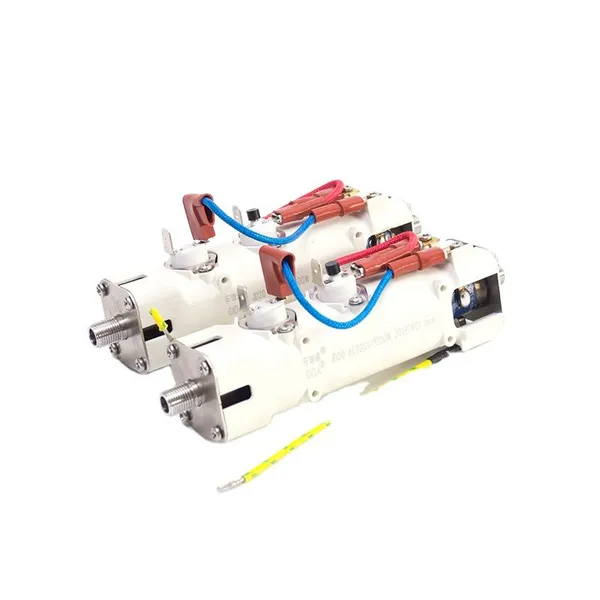

Pressure Bearing 0.8Mpa Instant Water Heater Thick Film Heating Element 2200W 220V
US$ 15.8 - 16.8
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
JIEDA
Place of Origin:
China
Model Number:
20HG
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Instant Water Heating Plate Flat Heating Element 220V 2000WUS$ 12.8 - 13.8MOQ: 1000 Pieces -
Instant Water Heater Thick Film Water Heater 220V 2200WUS$ 10.8 - 11.8MOQ: 1000 Pieces
-
Pressure Bearing 0.8Mpa Thick Film Heater Instant Water Heating Element 3000W 110VUS$ 15.8 - 16.8MOQ: 1000 Pieces
-
Dishwasher Thick Film Water Heaters 220V 2080W Hot Pump Heating TubeUS$ 10.8 - 11.8MOQ: 1000 Pieces
-
Thick Film Heating Tube Instant Water Heater 220V 2200WUS$ 6.8 - 7.8MOQ: 1000 Pieces
Brand Name
JIEDA
Place of Origin
China
Model Number
20HG
Certification
CE, ROHS, UL
Capacity
30ml
Voltage (V)
220
Power (W)
2200
Installation
Freestanding
Housing Material
Plastic
Storage / Tankless
Instant / Tankless
As instant coffee maker heater parts, it can quickly heat water flow inside the tube, by the heat circuit sintered between 5 isolation layers on tube surface.
Compared with traditional immersional water heating element, Thick Film water instant heating element is advanced in larger heating area (Tubular Structure), higher power density(60W/cm²), faster temperature response (up to 150℃/S), longer life time (>10,000 hours) and better thermal transfer(>96%).
| Dimension | 161mm*48mm*33mm | Heat Density | >60W/cm² |
| Ramp-Up Rate | 150℃/s | Thermal Efficiency | >96% |
| Heating Power | 2,200W | Service Life | >10,000 hours |
| Rated Voltage | 220v | Certificate | CQC, RoHS |
| Dielectric Strength | 1,500V/5mA/60s | Power Deviation | -10% - +5% |
| Leakage Current | ≤0.25mA | Insulation Resistance | ≥200MΩ |
| Type | PA66+ glass fibre, temperature resistance≥250℃ | Snap Action Thermostat | 16A, installed close to the heating tube’s heating circuit |
| Shield Thermistor | PTC | Grounding Type | Spot-Weld |
| Water Inlet&Outlet | Φ10mm | Heating Tube Dimention | Φ20mm*120mm |
Those thick film heating tubes/elements are widely applied in Instant Water Boiling, Instant Water Heater, Water Dispensers, Coffee Makers, Instant Electric Heating Faucets, Steam Generator, Air-Flow Heater, Floor Heating, Industrial Water Flow Heating, etc.
It can successfully replace the Traditional Electric Heating Tubes/Elements, change their structures and performance completely, which can reduce energy consumption, increase energy utilization and save space.
