Product Description:

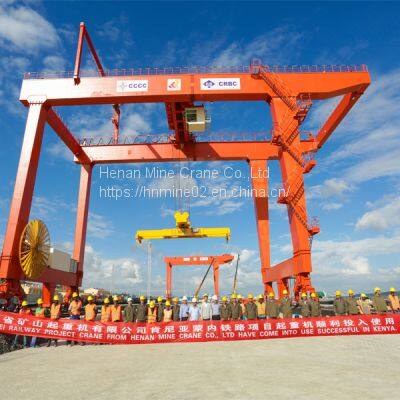

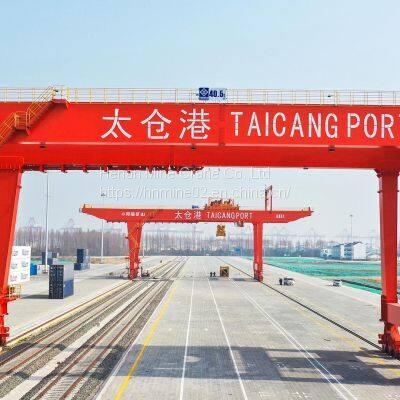

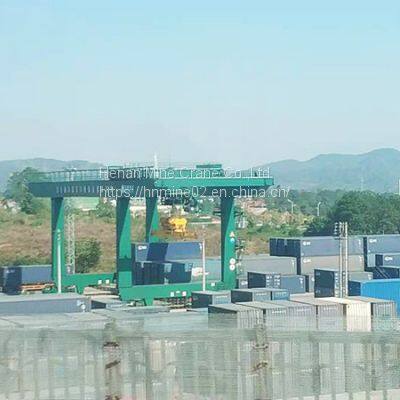

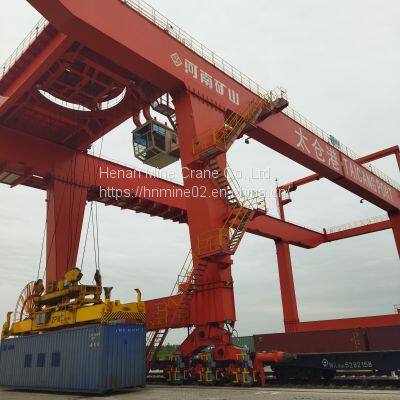

RMG model container handling gantry crane rail mounted 45t spreader
Application:And also,because this kind of crane is suitable for general loading and unloading ,lifting and handling work such as open-air freight yard and operation along the railway line,particularly suitable for long and bulky cargo and container handling operations.It could be also expressed as a U-shaped container gantry crane.
Noted: The power supply mode of the gantry crane is mainly divided into two types: sliding contact line and cable reel. Since the crane supports customized products,the sliding contact line form is recommended for this type crane, and the conductive form and position should be specified when ordering.
Features Comparision:
| Item | MG(A) | U-shaped |
| Outrigger shape | Outriggers are inclined | Outriggers are vertical |
| Saddle | The outriggers of the A-type gantry crane with cantilever are inclined inward, which produces an inward horizontal force. Therefore, in order to prevent the inward deformation of the outriggers and cause the deformation of the entire gantry, the entire saddle should be set. The function is to bear the force to prevent the deformation of the gantry. | Without saddles. |
| Outrigger space | Its outrigger space is smaller than that of a U-shaped crane. | The U-shaped gantry crane has a lot of leg space and can handle oversized objects. |
| Cost | The distance between the two main beams of the A-shaped gantry crane is relatively small, and the size of the trolley is small, so the cost is relatively low. | The distance between the two main beams of the U-shaped gantry crane is large, and the size of the trolley is large. It is used to lift large-sized objects over the legs, and the cost is relatively high. |
Relatd Products:
Henan Mine Crane Co.,Ltd started in 2002,and have developed an leading industrial crane manufacturer in China.There are many types cranes and crane spareparts.
single girder bridge crane
double girder bridge crane
single girder gantry crane
double girder gantry crane
semi gantry crane
mini portable gantry crane
rail mounted gantry crane
container gantry crane
hydraulic lifting platform
column-type/wall-hanging jib crane
various lifting mechanism:wire rope hoist, chain hoist, winch, grab, magnet, hang beam...
