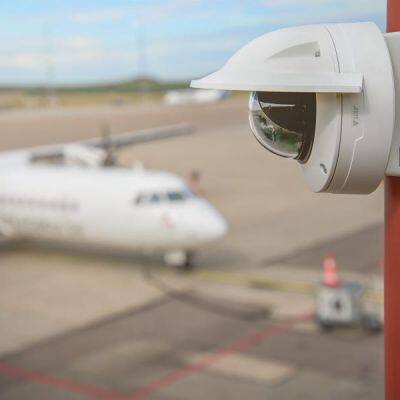

AXIS Q3536-LVE Dome Camera

AXIS Q3536-LVE Dome Camera

Advanced dome with deep learning and 4 MP

With 4 MP resolution, Lightfinder 2.0, Forensic WDR, and OptimizedIR, AXIS Q3536-LVE delivers outstanding image

quality even in the harshest weather and environments. The IR-shielded dome prevents IR reflections ensuring consistently clear, sharp video. Based on the latest generation Axis system-on-chip (SoC), it offers advanced features and

powerful applications based on deep learning. For instance, AXIS Object Analytics comes preinstalled offering highly

nuanced object classification. This robust camera features redundant power, sensors for intrusion and shock detection,

and built-in cybersecurity features such as Axis Edge Vault and a FIPS 140-2 level 2 certified Trusted Platform Module

(TPM).

> Outstanding image quality in 4 MP

> Support for analytics with deep learning

> IR-shielded dome to prevent reflections

> Built-in cybersecurity features

Camera

Image sensor 1/1.8” progressive scan RGB CMOS

Lens Varifocal, 4.3–8.6 mm, F1.5–2.4

Horizontal field of view: 103°–53°

Vertical field of view: 56°–30°

Varifocal, Remote focus and zoom, P-Iris control, IR corrected

Day and night Automatically removable infrared-cut filter

Minimum illumination  Color: 0.06 lux at 50 IRE, F1.5

B/W: 0 lux at 50 IRE, F1.5

Shutter speed 1/91000 s to 1 s

Camera angle adjustment Pan ±180°, tilt -43 to +80°, rotation ±175°

System on chip (SoC)

Model ARTPEC-8

Memory 2048 MB RAM, 8194 MB Flash

Compute capabilities Deep learning processing unit (DLPU)

Video H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles

compression  H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG

Resolution Up to 2688x1512

Frame rate With WDR: 25/30 fps with power line frequency 50/60 Hz

Without WDR: 50/60 fps with power line frequency 50/60 Hz
