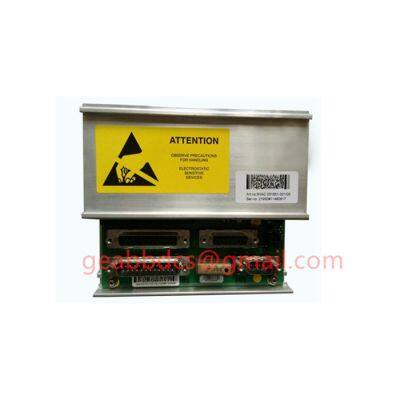

GOP2 Power module

The 155M dual optical interface can better support the outstanding advantages of the Profibus DP bus for fiber optic transmission, such as peer-to-peer transmission, burst data, bus arbitration, etc., while achieving high-speed long-distance transmission, electrical and ground wire isolation, and reducing interference. The product is industrial grade design, IP30 protection level, corrugated aluminum reinforced casing, 35mm rail installation, DC (9-36) V wide power input, and has relay alarm output Advantages such as dual power redundancy and isolation protection.

This device features a unique dual electrical service and dual fiber interface design, supporting dual network redundancy and fiber ring network, as well as point-to-point, star, chain bus, ring network, and hybrid network structures. It can transmit fiber optic data over a long distance of more than 20km, breaking through the distance limitations of cable systems. The dual electrical service channel is logically independent and supports flexible combination of 1-2 optical/electrical interfaces. According to the actual needs of the project, it can achieve 1 fiber interface and 1 data interface; 1 fiber optic interface+2 data interfaces; 2 fiber optic interfaces+1 data interface; Flexible configuration of 2 fiber optic interfaces and 2 data interfaces The Ci pf series is based on the standard Profibus DP, and the speed is set by a toggle switch or by selecting a rate adaptive setting. It supports 10 common speeds of the Profibus DP bus.

Contact information: 15359293870

WhatsApp:+86 15359293870

Contact person: KELLY

Email: geabbdcs@gmail.com   386353502@qq.com

Official website:

Performance indicators:

Data electrical interface:

*9-needle Sub_ The D-socket connector and pin definition comply with the protocol specifications of Profibus DP

*Supports the Profibus DP bus standard

*Communication speed: 9.6 kBit/s, 19.2 kBit/s, 45.45 kBit/s, 93.75 kBit/s, 187.5 kBit/s, 500 kBit/s, 1.5 MBit/s, 6 MBit/s, and 12 MBit/s

*Equipped with 4000V lightning protection, 1.5A overcurrent protection, and 600W surge protection functions;

*Terminal resistor: This device does not come with a terminal resistor, please connect it externally as needed

Power supply and protection:

*Power supply: Dual power redundant input, DC (9-36) V, typical DC24V, power consumption less than 4W, with DC1500V voltage isolation and reverse protection function, industrial terminal interface

*Relay alarm output: link fault and power supply fault alarm output, contact capacity: DC48V/1 A, industrial terminal interface

Mechanical characteristics:

*External dimensions: 132mm * 105mm * 52mm

*Shell: IP30 protection level, corrugated aluminum reinforced casing

*Installation method: 35mm guide rail installation

*Net weight: 800g

Work environment:

*Working temperature: -10-70 ℃ (-40~+85 ℃ wide temperature optional)

*Relative humidity: ≤ 90% (non condensing)

*Storage temperature: -40~80 ℃
