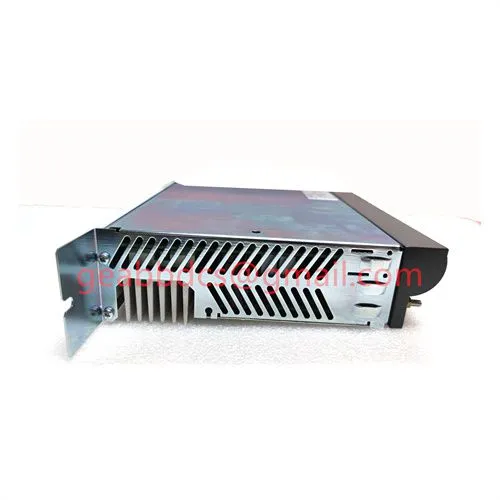

MC-4/11/10/400 trigger
This is a modular intelligent controller that integrates logic control, motion control, redundant control, and internet technology, achieving real-time high-speed motion control (gLink II) for 12-48 axes and real-time high-speed motion control (EtherCAT) for 64 axes. It supports motion control functions such as point positioning, electronic cam, 4-axis linear interpolation, 2D/3D arc interpolation, spiral interpolation, and speed lookahead. The product combines IEC61131-3 programmable logic control, PLCOpen motion control algorithm, and machine vision processing algorithm, real-time operating system optimization technology based on Linux, and is compatible with rich field network buses (gLink II/EtherCAT/Profinet/CANOpen/Modbus/EtherNet IP) to achieve interconnection and interworking between devices and industrial clouds. Its modular structural design facilitates flexible on-site expansion, with dual hot standby and controller redundancy functions ensuring the safe and reliable operation of production line equipment.
Contact information: 15359293870
WhatsApp:+86 15359293870
Contact person: KELLY
Email: geabbdcs@gmail.com 386353502@qq.com
Official website:
Product advantages
Infinite expansion
GLink-II Gigabit Ring Network
Implement 12 axis to 48 axis hard real-time high-speed motion control, with a control cycle of 250us to 1ms
● Support motion control functions such as point positioning, Jog, electronic gears, electronic cams, 4-axis linear interpolation, 2D/3D arc interpolation, helical interpolation, tool direction following, speed foresight, etc
Powerful I/O expansion function, supporting 2048 I/O points
● Support high-speed data synchronization between main stations, hot standby, and controller redundancy
Super EtherCAT
Implement 64 axis hard real-time high-speed motion control with a control cycle of 1ms
● Support motion control functions such as point positioning, Jog, electronic gears, electronic cams, 4-axis linear interpolation, 2D/3D arc interpolation, helical interpolation, tool direction following, speed foresight, etc
Powerful I/O expansion function, supporting 65535 I/O points
Built-in UPS, which can support data storage after power failure
※ Provide customized services
Rich communication interfaces
Supports communication interfaces such as gLink II, EtherCAT, Modbus (RS232/485), Ethernet, USB, etc. for ring networks
Fanless design
Die cast aluminum alloy heat dissipation side panels with excellent performance
Interface Definition
core technology
● Software platform technology
Combining programmable logic control with IEC61131-3, PLCOpen motion control algorithm, and machine vision processing algorithm
● Real time/bus system
Linux based real-time operating system optimization technology, gL
