Home > Products > stainless steel filter > 480MM DOE Stainless Steel Pleated Filter Cartridge For Oil Filtration

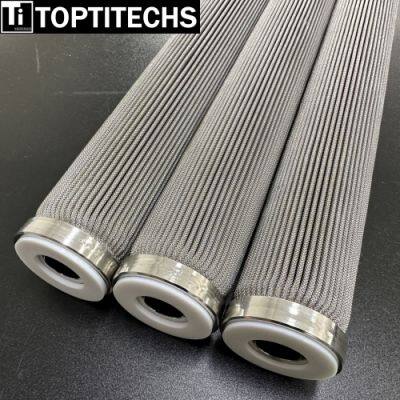

480MM DOE Stainless Steel Pleated Filter Cartridge For Oil Filtration
- 30000000 Piece / Pieces per Month
- shanghai shenzhen tianjin
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 5 days
- 30" SUS 316L Sintered Alloy Porous Filter Elements
- 40'' KF63 interface porous SS316L candle filter tube
- Sintered stainless steel 304/316L wire mesh filter pipe
- Multilayer Wire Mesh Filter Stainless Steel
- 1micron Porous Metal Filter Tube for Oxygen Distributor
- Square porous titanium plates for fuel cell
Product Details
Brand Name: | TopTiTech | Place of Origin: | China | Model Number: | SSP-03 |
Application: | filtration,ozone diffusion filter,water treatment | Technique: | Sintered | Grade: | stainless steel fiber felt and stainless steel wire mesh |
Dimensions: | customized | Powder Or Not: | Not Powder | Ti Content (%): | 99% |
Product Description
Product Introduction
The pleated stainless steel filter utilizes 304 and 316L stainless steel fiber sintered felt and stainless steel wire mesh as the main filter media. The sealing surfaces of the filter cartridge are joined using argon arc welding, and the filter layer adopts a multi-fold pleating process, forming a complete filter cartridge that is leak-free and free from media disintegration. The stainless steel fiber sintered felt is a porous depth filtration material made by sintering stainless steel fibers at high temperatures, while the stainless steel wire mesh is woven from stainless steel wires.
The pleated stainless steel filter cartridge exhibits excellent filtration performance, providing uniform surface filtration for particle sizes ranging from 1 to 200 microns. The outer dimensions of the cartridge can be customized according to client requirements. The pleated stainless steel filter cartridge finds wide applications in industries such as environmental protection, petroleum, chemical, medical, high-temperature gas filtration, scientific research, metallurgy, food, and machinery.
Main Parameters of the Filter Cartridge:
1. Length: 480mm
2. OD: 50mm
3. ID: 18mm
4. Connection: DOE
5. Pore size: 100 or 200um
6. Gasket type: Flat
Features:
1. The stainless steel pleated filter cartridge has a high porosity, excellent air permeability, low resistance, and low-pressure differential during use.
2. After folding, the pleated stainless steel filter cartridge provides a large filtration area and high dirt-holding capacity.
3. The pleated stainless steel filter cartridge is resistant to high temperatures, corrosion, and suitable for filtering high-viscosity liquids.
4. It exhibits good regeneration performance and can be repeatedly used through chemical cleaning, high-temperature cleaning, and ultrasonic cleaning.
5. The filter cartridge is constructed entirely of stainless steel, ensuring broad chemical compatibility.
Application:
1. Automotive Industry: Used in engine oil filtration to maintain the cleanliness of lubricants and extend the lifespan of engines.
2. Manufacturing and Machinery: Employed in hydraulic systems to remove contaminants and ensure the smooth operation of machinery.
3. Oil and Gas Industry: Utilized in various stages of oil processing, from refining to transportation, to achieve optimal oil purity and quality.
4. Food Processing: Applied in edible oil filtration to meet stringent sanitary standards and prevent product contamination.
5. Power Generation: Used in turbines and other equipment to maintain the cleanliness of lubricating oils and enhance overall system efficiency.
FAQ
Q1: How often should the pleated stainless steel filter in my oil filtration system be replaced?
A1: The frequency of filter replacement depends on various factors, including the volume of oil processed, the level of contamination, and the filter's capacity.
Q2: Can pleated stainless steel filters be cleaned and reused?
A2: Yes, pleated stainless steel filters can often be cleaned and reused. Proper cleaning procedures, such as backwashing or chemical cleaning, can help restore the filter's performance.
Q3: Are pleated stainless steel filters resistant to high temperatures?
A3: Yes, pleated stainless steel filters are known for their excellent thermal resistance. They can withstand high temperatures commonly encountered in oil filtration processes without compromising their structural integrity or filtration efficiency.
Package and Shipment
1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.
2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the customer's designated place without damage.
Contact Us
TEL: +8619992203758
FAX: 0917-3873009
Email:karrykang@bjygti.com
Company: TOPTITECH -- BAOJI YINGGAOCO., LTD
Website:/
ADD: No. 195, Gaoxin Avenue, High-tech Development Zone, Baoji City, Shaanxi, China
