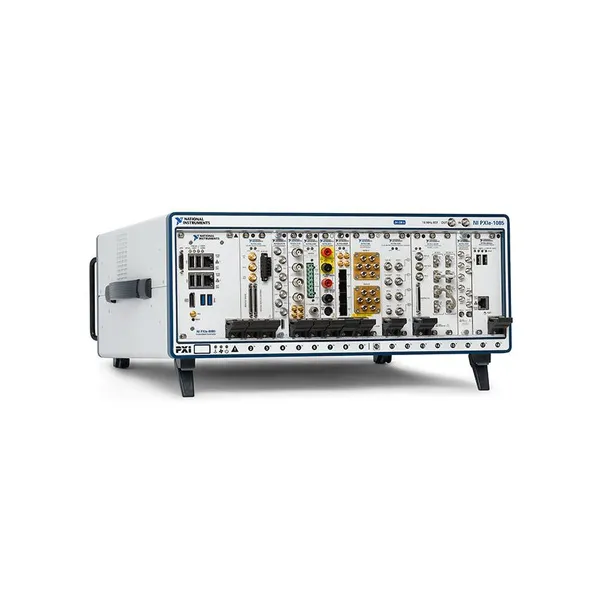

PXIe-1095 Acquisition encoder

Product Overview:

Input points: 16

Output points: 0

Input specifications:

Input method: drain type/source type

Signal voltage: DC24V

Impedance: 4.3K Ω

Signal current: 5mA/DC24V

ON state current: above 3.5mA

OFF state current: below 1.5mA

Response time: approximately 10ms

Signal form:

Voltage free contact input

For drain type input: NPN type transistor with open collector form

Source input: PNP type transistor, open collector form

Circuit insulation: optocoupler isolation

Physical connection: non detachable terminal strip

Action indication: When the optocoupler is driven, the LED light on the panel lights up

1 Overview

The ARTU series remote terminal units are high-performance intelligent components for power distribution, applied in fields such as intelligent power distribution and industrial automation. The ARTU100 series remote terminal unit provides switch input, switch output, analog input, and analog output. It can transmit the collected signals to the background through RS485 serial port, RJ45 Ethernet interface, 2G, Lora, and 4G wireless communication. The application of ARTU four remote unit switch value acquisition module in low-voltage intelligent distribution.

Compliant with standards:

GB/T 19582.1-2004

Industrial automation network specification based on Modbus protocol Part 1: Modbus application protocol

GB/T 19582.2-2008 Industrial Automation Network Specification Based on Modbus Protocol Part 2: Implementation Guidelines for Modbus Protocol on Serial Links

GB/T13729-2002 Telecontrol Terminal Equipment DL/T630-1997 Technical Conditions for AC Sampling Telecontrol Terminals DL/T 634.5101-2009 Telecontrol Equipment and Systems Part 5-101: Transmission Regulations DL/T 634.5104-2009 Telecontrol Equipment and Systems Part 5-104: Transmission Regulations
